Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 7, 2019, 11:32 AM

  • 05 0189_05 0188_272019_041643.mp4

Date
02/07/2019
W/O
0754498
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00431
PipeID
P05481
Time
3:32 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1102R
Sewer Name
05 DISTRICT #5 MAIN TRUNK
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
06
Purpose
Maintenance Related
Project
20190207MDM_DISTRICT_5_MAIN_TRIUNK
Material
NRCP
Shape
Circular
Height
14.260000228881836 in.
Upstream MH
05 0189
Downstream MH
05 0188
Dir. of Survey
Downstream
Length Surveyed
336.8 ft.
Total Length
336.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3221
O&M Rating
8
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 05 0189 to 05 0188
MH: 05 0189MH: 05 0188downstream0 ft. AMH - Upstream Manhole, Survey Begins - 4:15AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area8 ft. MGO - General Observation - 14>25 NRCP + CIPP LINER21.4 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6" - Open61.7 ft. TBC - Tap Break-In Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6" - Capped64.1 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open66.9 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open104.8 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open153.6 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open158.5 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open196.8 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open207.1 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open253.5 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Active255.7 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open304.2 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Active306.3 ft. RML - Roots Medium Lateral, from 08 to 11 o'clock, 25 %, within 8 inches of joint: YES306.3 ft. TBD - Tap Break-In Defective, at 11 o'clock, -, , within 8 inches of joint: NO, 6" - Open 80% ROOTS336.2 ft. MGO - General Observation - Open MH CONN 9:00336.8 ft. AMH - Downstream Manhole, Survey Ends - 4:40AM

Observation photos (3)

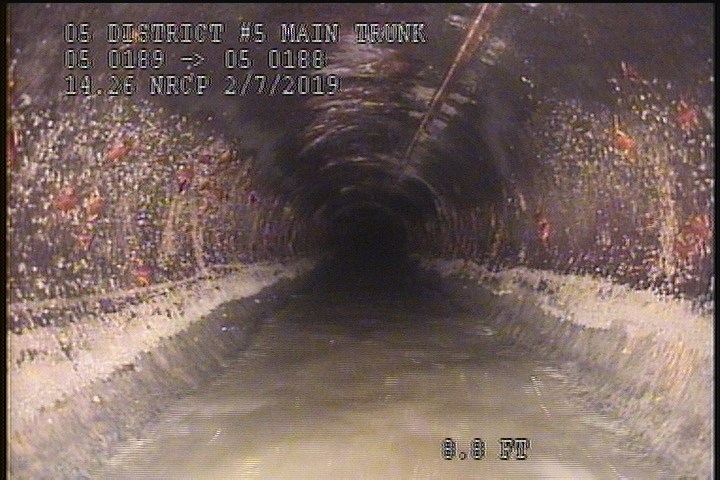

  • General Observation - 14>25 NRCP + CIPP LINER

    8 ft. - General Observation - 14>25 NRCP + CIPP LINER

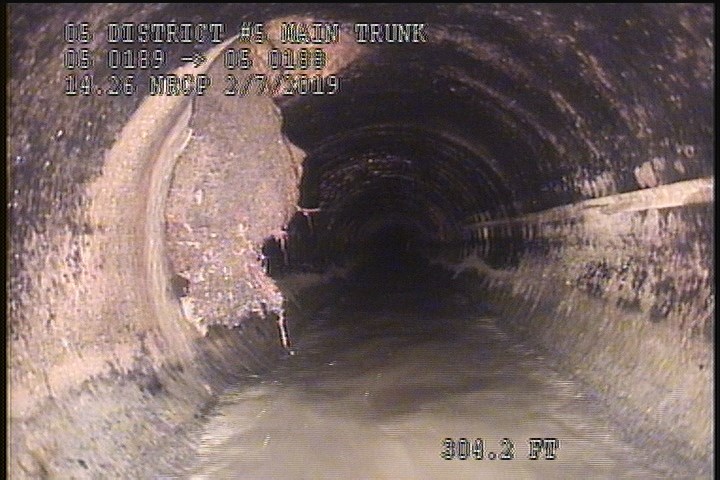

  • Roots Medium Lateral, from 08 to 11 o'clock, 25 %, within 8 inches of joint: YES

    306.3 ft. - Roots Medium Lateral, from 08 to 11 o'clock, 25 %, within 8 inches of joint: YES

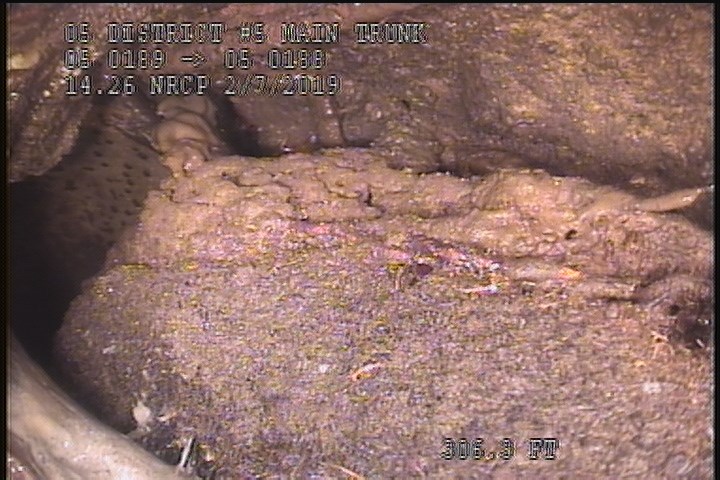

  • Tap Break-In Defective, at 11 o'clock, -, , within 8 inches of joint: NO, 6" - Open 80% ROOTS

    306.3 ft. - Tap Break-In Defective, at 11 o'clock, -, , within 8 inches of joint: NO, 6" - Open 80% ROOTS

All inspections of P05481Work order 0754498

Observations (20)

DistanceCodeObservation
153.6TBOpen
104.8TBOpen
304.2TBActive
21.4TBOpen
64.1TBOpen
306.3RML—
0AMH4:15AM
158.5TBOpen
196.8TBOpen
61.7TBCCapped
253.5TBActive
8MGO14>25 NRCP + CIPP LINER
66.9TBOpen
255.7TBOpen
0MWM—
336.8AMH4:40AM
0MWL—
306.3TBDOpen 80% ROOTS
207.1TBOpen
336.2MGOOpen MH CONN 9:00

Properties (5)

customer
LACSD
datetime
2019-02-07T03:32:17-08:00
documentation
MARTIN,OLIVER 111,CASTILLO
is_lateral_inspection
false
lining
CIPP
