Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 7, 2019, 11:24 AM

  • 05 0190_05 0189_272019_033726.mp4

Date
02/07/2019
W/O
0754498
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00431
PipeID
P05482
Time
3:24 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1102R
Sewer Name
05 DISTRICT #5 MAIN TRUNK
City
INGLEWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
06
Purpose
Maintenance Related
Project
20190207MDM_DISTRICT_5_MAIN_TRIUNK
Material
NRCP
Shape
Circular
Height
14.260000228881836 in.
Upstream MH
05 0190
Downstream MH
05 0189
Dir. of Survey
Downstream
Length Surveyed
323.8 ft.
Total Length
323.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3511
O&M Rating
16
Overall Index
3
Overall Quick
—
Overall Rating
16
Pipe schematic from manhole 05 0190 to 05 0189
MH: 05 0190MH: 05 0189downstream0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:40AM8 ft. MGO - General Observation - 14.25" NRCP + CIPP LINER45.3 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open47.9 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open66.3 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open98.5 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open109.1 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active144.6 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open192.9 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open195.5 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open241.2 ft. TBD - Tap Break-In Defective, at 11 o'clock, -, , within 8 inches of joint: YES, 6" - Active 25% ROOTS244.4 ft. TBD - Tap Break-In Defective, at 01 o'clock, -, , within 8 inches of joint: YES, 6" - Open 25% ROOTS287.7 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: YES, 6" - Open292.4 ft. TBD - Tap Break-In Defective, at 01 o'clock, -, , within 8 inches of joint: YES, 6" - Open 35% ROOTS292.4 ft. RFL - Roots Fine Lateral, from 01 to 03 o'clock - 4%299.2 ft. TBD - Tap Break-In Defective, at 12 o'clock, -, , within 8 inches of joint: NO, 6" - Active 95% ROOTS299.2 ft. RML - Roots Medium Lateral, from 07 to 12 o'clock, 35 %, within 8 inches of joint: NO301.7 ft. TB - Tap Break-In, at 01 o'clock, -, within 8 inches of joint: YES, 6" - Open323.8 ft. AMH - Downstream Manhole, Survey Ends - 4:05AM

Observation photos (3)

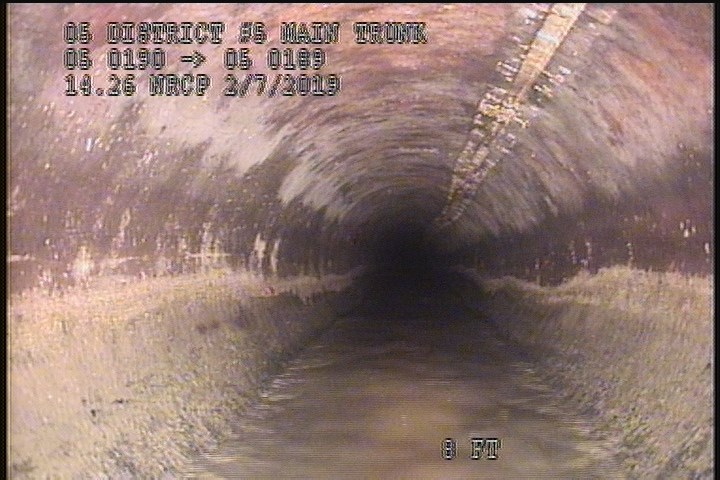

  • General Observation - 14.25" NRCP + CIPP LINER

    8 ft. - General Observation - 14.25" NRCP + CIPP LINER

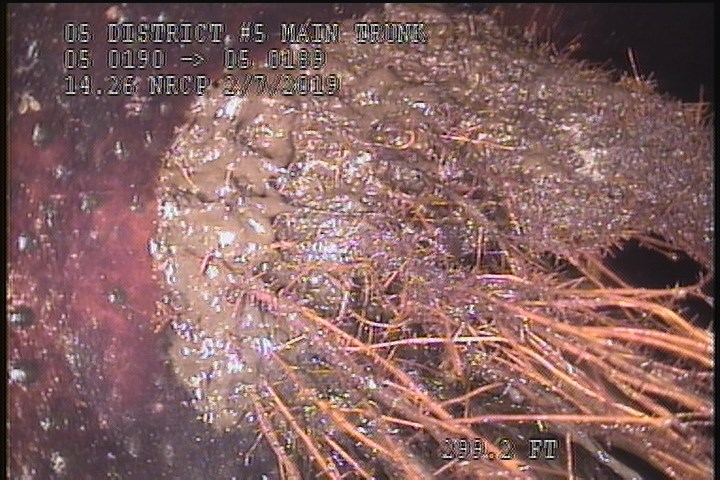

  • Tap Break-In Defective, at 12 o'clock, -, , within 8 inches of joint: NO, 6" - Active 95% ROOTS

    299.2 ft. - Tap Break-In Defective, at 12 o'clock, -, , within 8 inches of joint: NO, 6" - Active 95% ROOTS

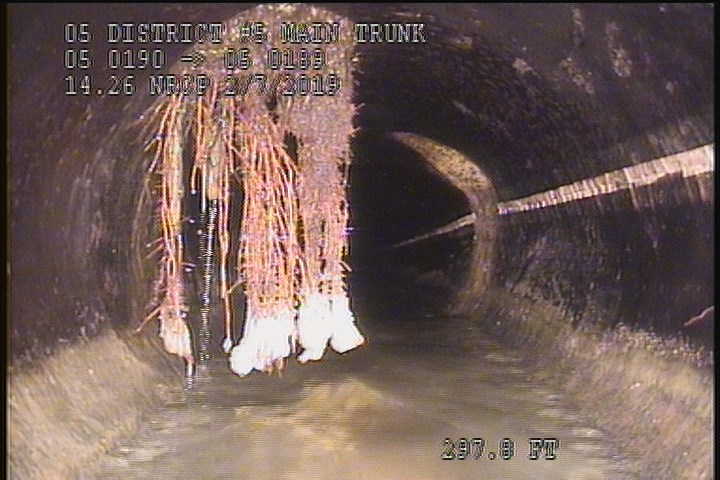

  • Roots Medium Lateral, from 07 to 12 o'clock, 35 %, within 8 inches of joint: NO

    299.2 ft. - Roots Medium Lateral, from 07 to 12 o'clock, 35 %, within 8 inches of joint: NO

All inspections of P05482Work order 0754498

Observations (23)

DistanceCodeObservation
292.4TBDOpen 35% ROOTS
241.2TBDActive 25% ROOTS
299.2TBDActive 95% ROOTS
0MGOConn. @ Mh, 3 O' Clock. Active
144.6TBOpen
0MGOConn. @ Mh, 9 O' Clock. Active
244.4TBDOpen 25% ROOTS
301.7TBOpen
0MWL—
98.5TBOpen
323.8AMH4:05AM
0MWM—
0AMH3:40AM
66.3TBOpen
109.1TBActive
195.5TBOpen
192.9TBOpen
47.9TBOpen
292.4RFL4%
287.7TBOpen
8MGO14.25" NRCP + CIPP LINER
299.2RML—
45.3TBOpen

Properties (6)

additional_info
ROOT EVALUATION ONLY
customer
LACSD
datetime
2019-02-07T03:24:44-08:00
documentation
MARTIN,OLIVER 111,CASTILLO
is_lateral_inspection
false
lining
CIPP
