Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 5, 2019, 05:37 PM

  • C 0312_C 0311A_252019_094305.mp4

Date
02/05/2019
W/O
0753893
Weather
Heavy Rain
Operator/Surveyor
FRANKLIN
Sewer ID
Z00135
PipeID
P09773
Time
9:37 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7910
Sewer Name
C JOINT OUTFALL C - UNIT 6F
City
CERRITOS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
04
Purpose
Capital Improvement Program Assesment
Project
20190205DF_JOINT_OUTFALL_C_UNIT_6F
Material
Reinforced Concrete Pipe
Shape
Circular
Height
15 in.
Upstream MH
C 0312
Downstream MH
C 0311A
Dir. of Survey
Downstream
Length Surveyed
206.1 ft.
Total Length
206.1 ft.
Structural Index
3
Structural Quick
5131
Structural Rating
10
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole C 0312 to C 0311A
MH: C 0312MH: C 0311Adownstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:37 AM0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 25 %of cross sectional area2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% MAG2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start10.5 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach16.1 ft. DAE - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES16.2 ft. MGP - General Photograph17.1 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: YES, 4", 4"58.8 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"63.1 ft. MGP - General Photograph100.7 ft. MGP - General Photograph138.3 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start161 ft. MGP - General Photograph175.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 4"194.4 ft. MGP - General Photograph203.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish203.9 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish203.9 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 75% MAG203.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish205.4 ft. MGP - General Photograph206.1 ft. MGO - General Observation - ROACHES @ MH206.1 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)206.1 ft. MGO - General Observation - Peeling & Flaking Throughout The Reach206.1 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active206.1 ft. AMH - Downstream Manhole, Survey Ends - 10:10 AM206.1 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active

Observation photos (9)

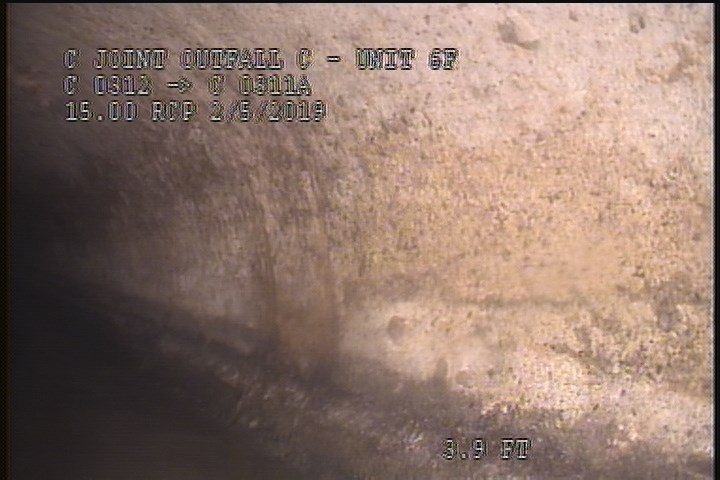

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 75% MAG

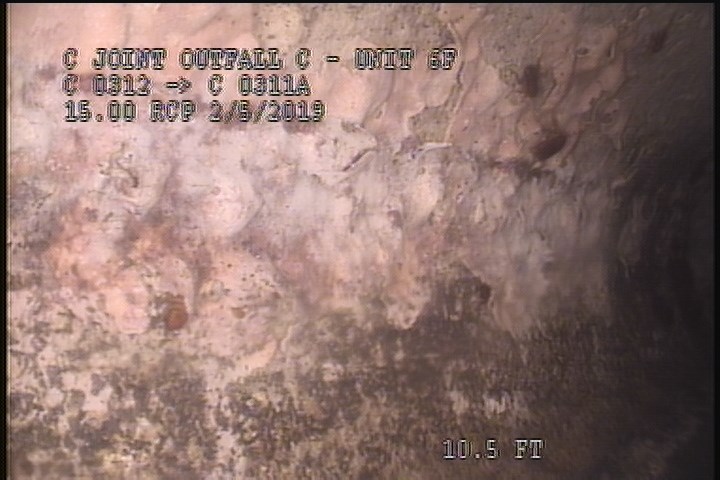

  • General Observation - Peeling & Flaking Throughout The Reach

    10.5 ft. - General Observation - Peeling & Flaking Throughout The Reach

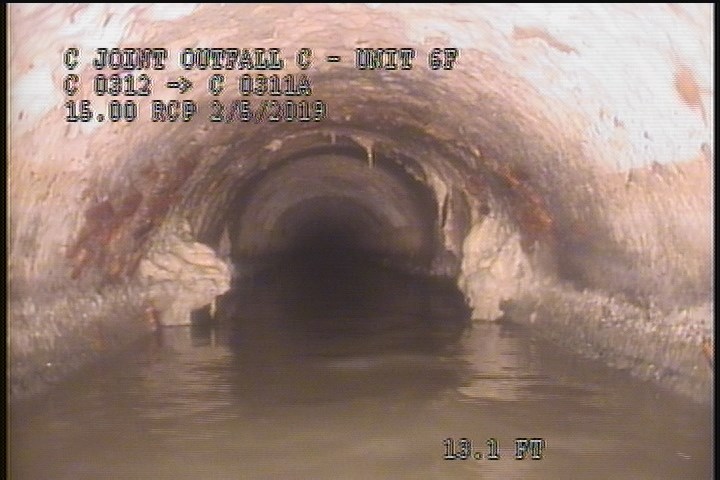

  • Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

    16.1 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

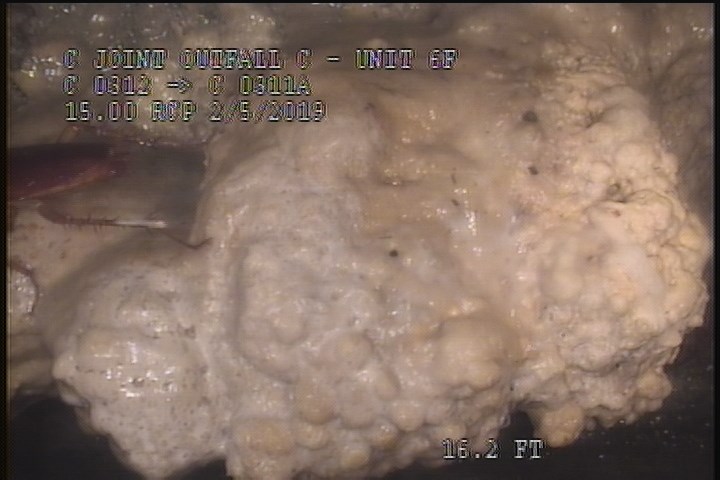

  • General Photograph

    16.2 ft. - General Photograph

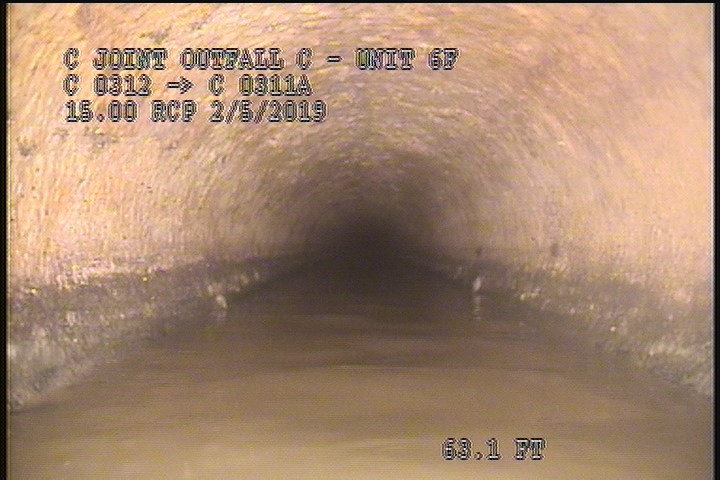

  • General Photograph

    63.1 ft. - General Photograph

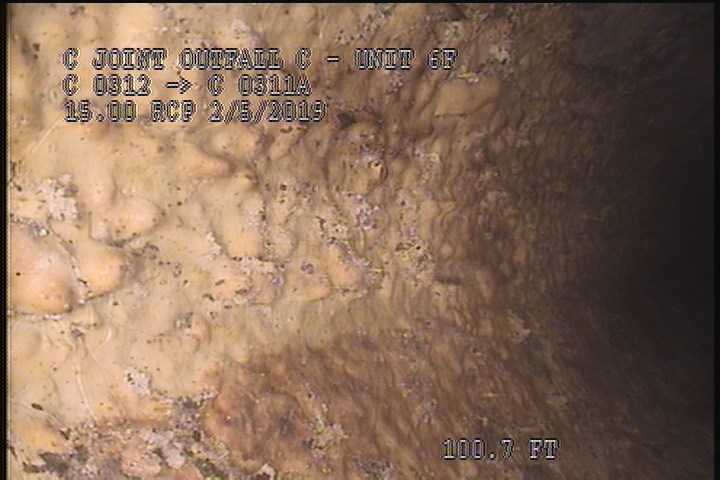

  • General Photograph

    100.7 ft. - General Photograph

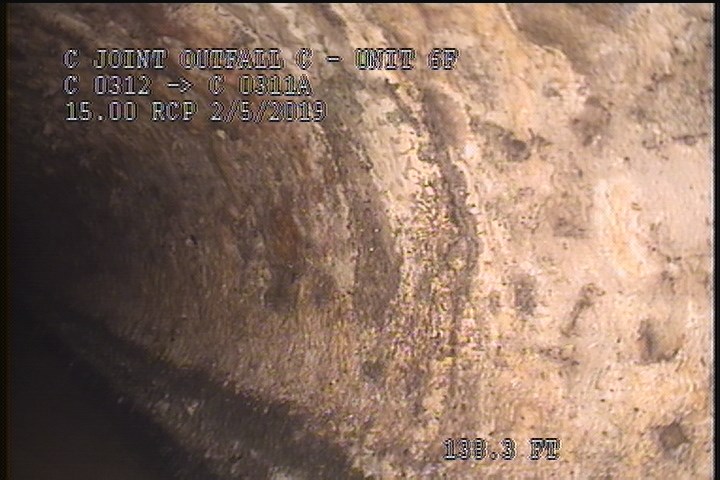

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    138.3 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

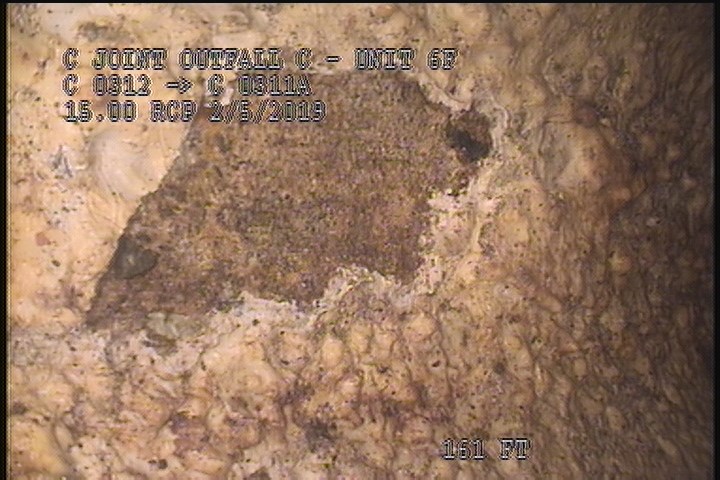

  • General Photograph

    161 ft. - General Photograph

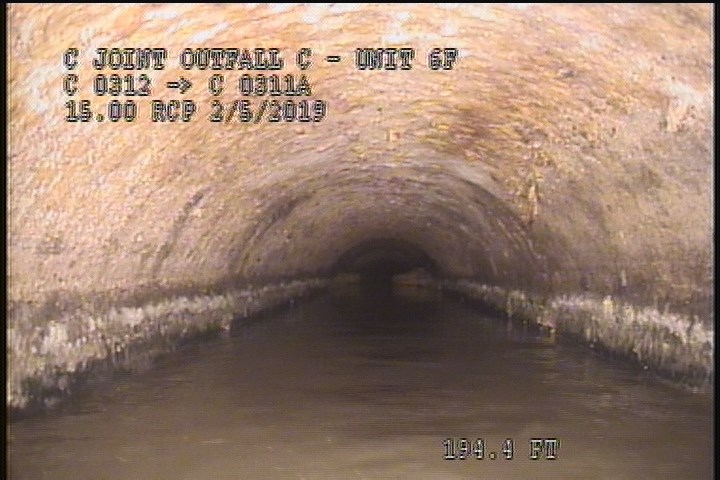

  • General Photograph

    194.4 ft. - General Photograph

All inspections of P09773Work order 0753893

Observations (28)

DistanceCodeObservation
0AMH9:37 AM
138.3SRV—
206.1MGOROACHES @ MH
194.4MGP—
2SAV—
206.1MGOGREASE THROUGHOUT THE REACH (5%)
17.1TFA—
0MWM—
203.9SAV—
2SZ75% MAG
206.1MGOPeeling & Flaking Throughout The Reach
58.8TFA—
175.7TF—
16.2MGP—
203.9SRV—
63.1MGP—
203.9SZ75% MAG
10.5MGOPeeling & Flaking Throughout The Reach
205.4MGP—
206.1MGOConn. @ Mh, 9 O' Clock. Active
206.1AMH10:10 AM
16.1DAE—
206.1MGOConn. @ Mh, 3 O' Clock. Active
0MWL—
203.9SSS—
2SSS—
161MGP—
100.7MGP—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-02-05T09:37:03-08:00
documentation
FRANKLIN, IGNACIO, RUVALCABA
is_lateral_inspection
false
