Wastewater/Activity/PacpInspection/1.0Feb 4, 2019, 08:50 PM
C 0313_C 0312A_242019_130432.mp4
- Date
- 02/04/2019
- W/O
- 0753893
- Weather
- Saturated
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00135
- PipeID
- P09775
- Time
- 12:50 PM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7909
- Sewer Name
- C JOINT OUTFALL C - UNIT 6F
- City
- CERRITOS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 04
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190204SHO_JOINT_OUTFALL_C_UNIT_6F
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- C 0313
- Downstream MH
- C 0312A
- Dir. of Survey
- Downstream
- Length Surveyed
- 206 ft.
- Total Length
- 206 ft.
- Structural Index
- 4
- Structural Quick
- 5231
- Structural Rating
- 15
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (4)

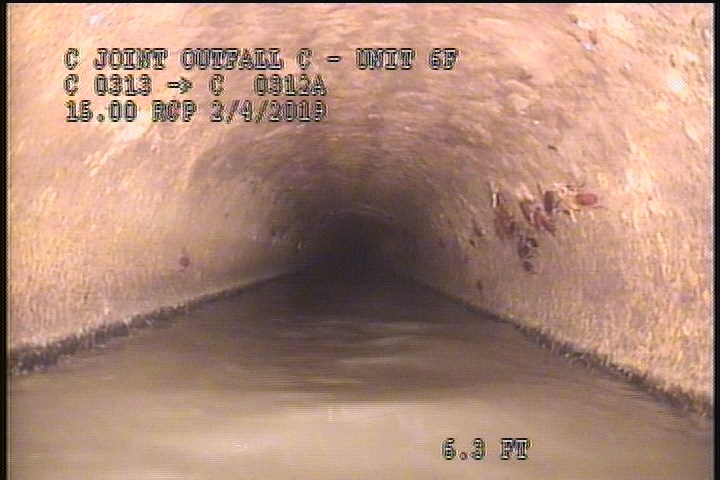

6.3 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

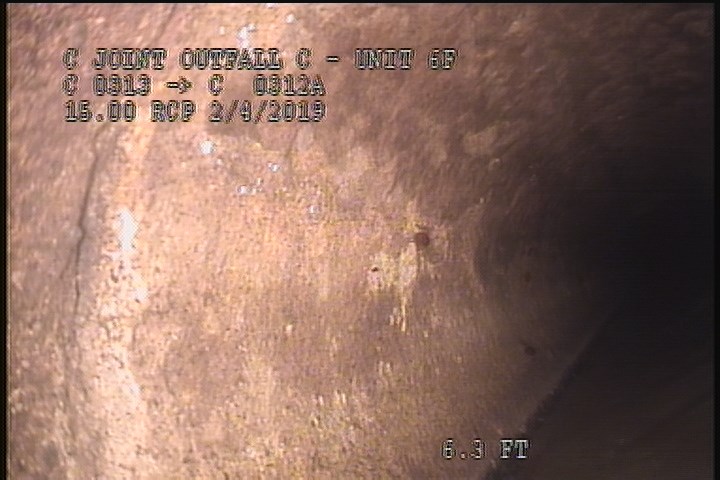

6.3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
47.4 ft. - Surface Reinforcement Visible, at 01 o'clock, within 8 inches of joint: YES, 6"

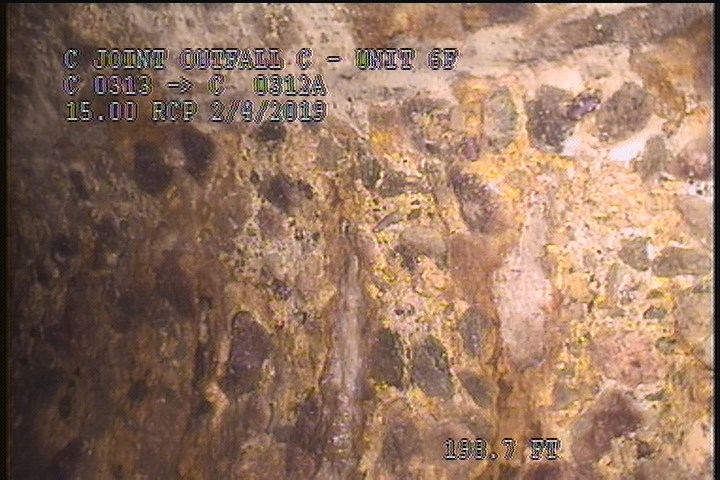

198.7 ft. - Surface Reinforcement Visible, from 11 to 02 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 204.4 | SAV | — |
| 204.4 | SRV | — |
| 204.4 | SSS | — |
| 0 | MWL | — |
| 0 | AMH | C 0313 |
| 198.7 | SRV | — |
| 206 | AMH | C 312A |
| 6.3 | SSS | — |
| 6.3 | SAV | — |
| 47.4 | SRV | — |
Properties (6)
- custom_field_three
- REBAR AND AGGREGATE
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-02-04T12:50:50-08:00
- documentation
- OBREGON, BRAR, YOUNG, RUVALCABA
- is_lateral_inspection
- false
