Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 4, 2019, 09:50 AM

  • Section#6_18 1040_18 1039__242019__I0117.mp4

Date
02/04/2019
W/O
0753099
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00678
PipeID
P14894
Time
1:50 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0117
Sewer Name
18 LA HABRA HEIGHTS TRUNK, SECTION 2A
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Capital Improvement Program Assesment
Project
20190201MDM_LA_HABRA_HEIGHTS_TRUNK_SECTION_2
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
18 1040
Downstream MH
18 1039
Dir. of Survey
Downstream
Length Surveyed
137.5 ft.
Total Length
137.5 ft.
Structural Index
2
Structural Quick
5141
Structural Rating
48
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
48
Pipe schematic from manhole 18 1040 to 18 1039
MH: 18 1040MH: 18 1039downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 2:20AM10.2 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SLIGHT11.1 ft. FC - Fracture Circumferential, from 08 to 09 o'clock, within 8 inches of joint: YES - SL11.1 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT11.1 ft. B - Broken, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT CIRCUM FRACTURE11.3 ft. FC - Fracture Circumferential, from 04 to 05 o'clock, within 8 inches of joint: YES - SL13.5 ft. FL - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES - HAIRLINE15.3 ft. FC - Fracture Circumferential, from 03 to 04 o'clock, within 8 inches of joint: YES - H27.3 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - SL35.3 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL43.2 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H62.8 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL67 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H83.2 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - SL90.9 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL103.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - OPEN105.5 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL113.5 ft. MGO - General Observation - 10" VCP113.5 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SL125.1 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - SL129.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SL133.4 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - SL133.4 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL137.5 ft. AMH - Downstream Manhole, Survey Ends - 2:45AM

Observation photos (3)

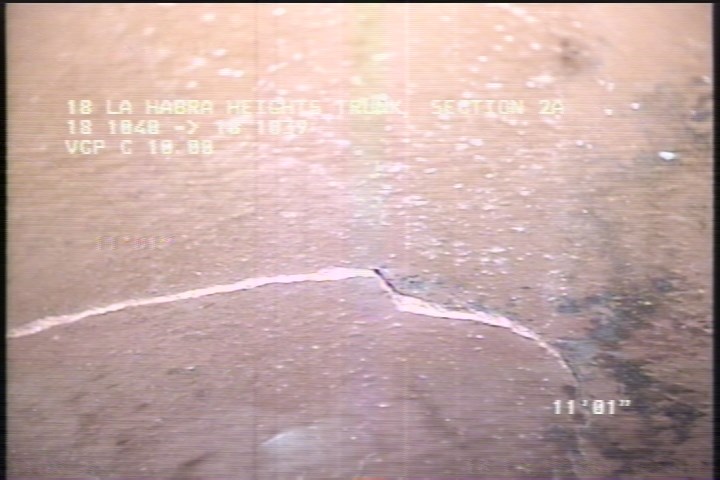

  • Broken, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT CIRCUM FRACTURE

    11.1 ft. - Broken, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT CIRCUM FRACTURE

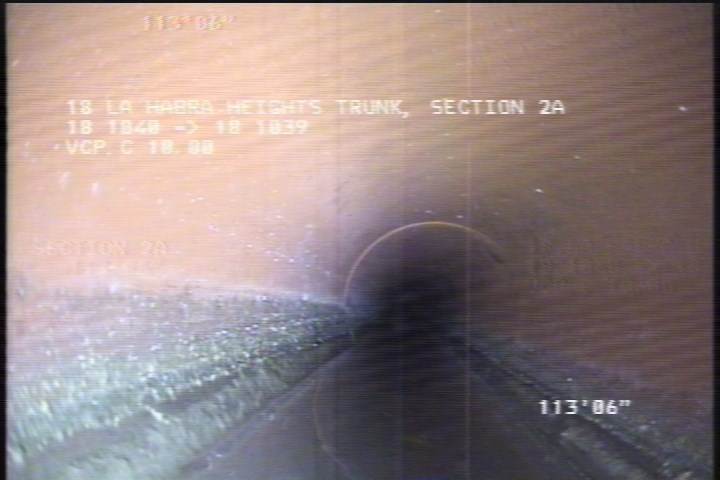

  • General Observation - 10" VCP

    113.5 ft. - General Observation - 10" VCP

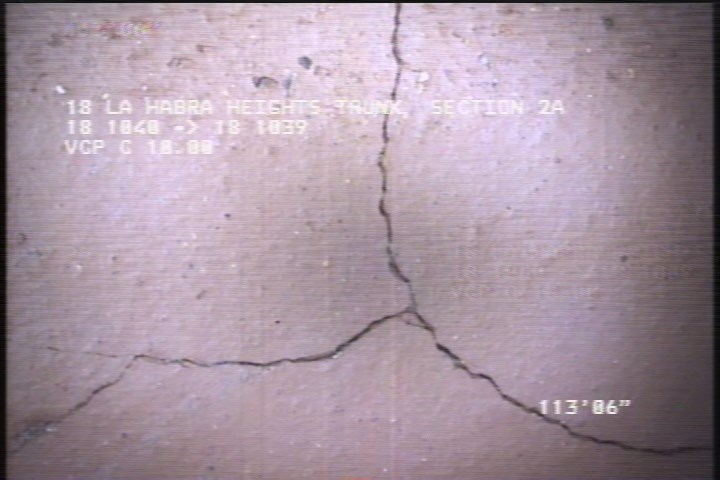

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SL

    113.5 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SL

All inspections of P14894Work order 0753099

Observations (26)

DistanceCodeObservation
67FCH
113.5MGO10" VCP
137.5AMH2:45AM
11.1FCSL
133.4FCSL
11.1FCSLIGHT
62.8FCSL
105.5FCSL
129.3FLSL
0MWM—
0MWL—
133.4FCSL
90.9FCSL
13.5FLHAIRLINE
11.1BSLIGHT CIRCUM FRACTURE
10.2FCSLIGHT
11.3FCSL
103.4TFOPEN
27.3FCSL
43.2FCH
83.2FCSL
15.3FCH
125.1FLSL
35.3FCSL
0AMH2:20AM
113.5FMSL

Properties (6)

custom_field_three
BROKEN PIPE SLIGHT FRACTURE
custom_field_two
2
customer
LACSD
datetime
2019-02-04T01:50:23-08:00
documentation
MARTIN,REVELES,OLIVER 111,CASTILLO
is_lateral_inspection
false
