Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 1, 2019, 09:59 AM

  • Section#2_18 1049A_18 1049__212019__I0116.mp4

Date
02/01/2019
W/O
0753099
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00678
PipeID
P14904
Time
1:59 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0116
Sewer Name
18 LA HABRA HEIGHTS TRUNK, SECTION 2A
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Capital Improvement Program Assesment
Project
20190201MDM_LA_HABRA_HEIGHTS_TRUNK_SECTION_2
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
18 1049A
Downstream MH
18 1049
Dir. of Survey
Downstream
Length Surveyed
70.8 ft.
Total Length
70.8 ft.
Structural Index
3
Structural Quick
4236
Structural Rating
36
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
36
Pipe schematic from manhole 18 1049A to 18 1049
MH: 18 1049AMH: 18 1049downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MGO - General Observation - ACTIVE MH CONN 9:000 ft. AMH - Upstream Manhole, Survey Begins - 2:00AM0 ft. MWM - Water Mark, 20 %of cross sectional area0.9 ft. MGO - General Observation - OPEN MH CONN 3:005.5 ft. FM - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES - SLIGHT9.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - STUB16.3 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, - SL17 ft. FC - Fracture Circumferential, from 04 to 05 o'clock, within 8 inches of joint: YES - SL20.3 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES - H23.2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SL29.8 ft. MGO - General Observation - 8" VCP32.1 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES - SL32.1 ft. FL - Fracture Longitudinal, at 04 o'clock, within 8 inches of joint: YES - H35.2 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - H37.2 ft. FC - Fracture Circumferential, from 07 to 08 o'clock, within 8 inches of joint: YES - SL38.2 ft. FL - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES - SL42.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN43.8 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL49.8 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H58.9 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - SL59.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - STUB70.3 ft. MGO - General Observation - STUB MH CONN 9:0070.8 ft. AMH - Downstream Manhole, Survey Ends - 2:25AM

Observation photos (3)

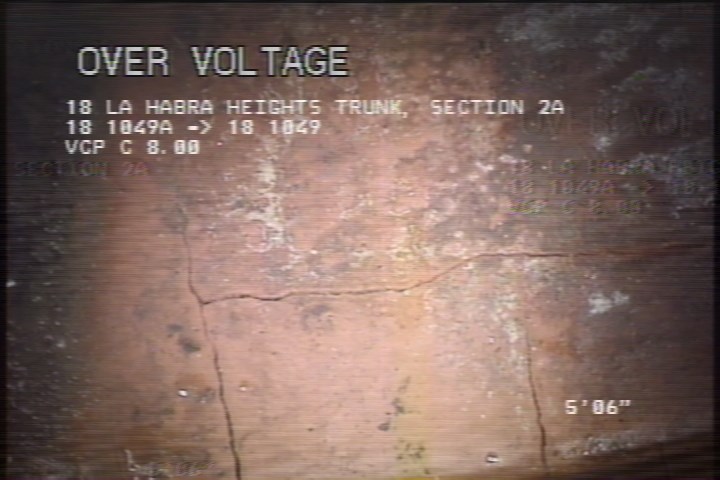

  • Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES - SLIGHT

    5.5 ft. - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES - SLIGHT

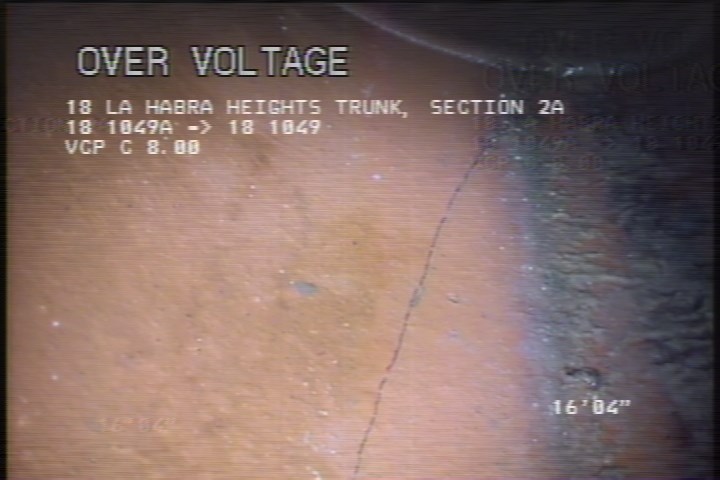

  • Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, - SL

    16.3 ft. - Fracture Longitudinal, at 08 o'clock, within 8 inches of joint: YES, - SL

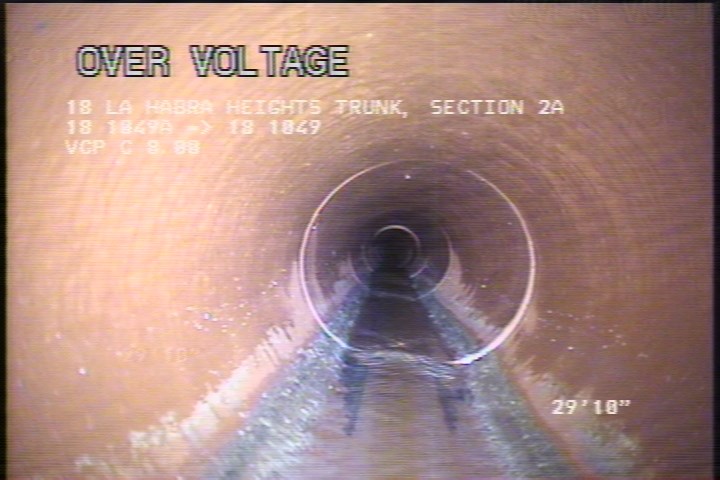

  • General Observation - 8" VCP

    29.8 ft. - General Observation - 8" VCP

All inspections of P14904Work order 0753099

Observations (24)

DistanceCodeObservation
42.2TFOPEN
43.8FCSL
5.5FMSLIGHT
70.8AMH2:25AM
58.9FLSL
23.2FMSL
16.3FLSL
29.8MGO8" VCP
0.9MGOOPEN MH CONN 3:00
49.8FCH
0MWL—
0MGOACTIVE MH CONN 9:00
20.3FLH
35.2FCH
37.2FCSL
32.1FLSL
9.2TFCSTUB
38.2FLSL
0AMH2:00AM
59.7TFCSTUB
32.1FLH
17FCSL
0MWM—
70.3MGOSTUB MH CONN 9:00

Properties (6)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2019-02-01T01:59:53-08:00
documentation
MARTIN,REVELES,BRAR
is_lateral_inspection
false
