Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 1, 2019, 09:13 AM

  • Section#1_18 1050_18 1049A__212019__I0116.mp4

Date
02/01/2019
W/O
0753099
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00678
PipeID
P23534
Time
1:13 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0116
Sewer Name
18 LA HABRA HEIGHTS TRUNK, SECTION 2A
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
22
Purpose
Capital Improvement Program Assesment
Project
20190201MDM_LA_HABRA_HEIGHTS_TRUNK_SECTION_2
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
18 1050
Downstream MH
18 1049A
Dir. of Survey
Downstream
Length Surveyed
114.7 ft.
Total Length
114.7 ft.
Structural Index
2
Structural Quick
4231
Structural Rating
22
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
22
Pipe schematic from manhole 18 1050 to 18 1049A
MH: 18 1050MH: 18 1049Adownstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:30AM0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MGO - General Observation - OPEN MH CONN 3:003 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - HAIRLINE6.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN10.9 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT20.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN23.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - STUB43.2 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - SL49.2 ft. JSM - Joint Separated Medium - SEALED49.2 ft. FC - Fracture Circumferential, from 05 to 07 o'clock, within 8 inches of joint: YES - SL49.2 ft. FC - Fracture Circumferential, from 07 to 09 o'clock, within 8 inches of joint: YES - SL52.3 ft. FC - Fracture Circumferential, from 10 to 01 o'clock, within 8 inches of joint: YES - SL55.3 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - SL67.8 ft. MGO - General Observation - 8" VCP74.3 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6" - STUB94.2 ft. FM - Fracture Multiple, from 08 to 03 o'clock, within 8 inches of joint: YES - SL114.3 ft. MGO - General Observation - OPEN MH CONN 3:00114.3 ft. MGO - General Observation - ACTIVE MH CONN 9:00114.7 ft. AMH - Downstream Manhole, Survey Ends - 1:55AM

Observation photos (2)

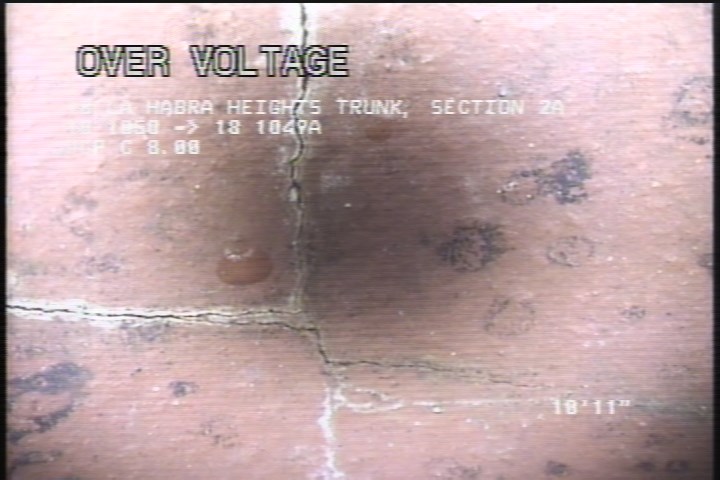

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

    10.9 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

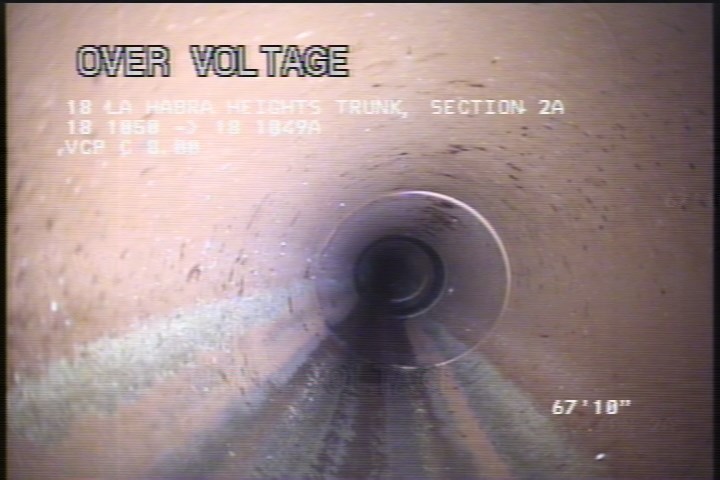

  • General Observation - 8" VCP

    67.8 ft. - General Observation - 8" VCP

All inspections of P23534Work order 0753099

Observations (21)

DistanceCodeObservation
49.2JSMSEALED
10.9FMSLIGHT
114.3MGOOPEN MH CONN 3:00
67.8MGO8" VCP
94.2FMSL
43.2FLSL
114.3MGOACTIVE MH CONN 9:00
20.7TFOPEN
49.2FCSL
49.2FCSL
0MWM—
0AMH1:30AM
3FCHAIRLINE
23.4TFCSTUB
6.5TFOPEN
114.7AMH1:55AM
52.3FCSL
0MWL—
0MGOOPEN MH CONN 3:00
74.3TFCSTUB
55.3FCSL

Properties (6)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2019-02-01T01:13:23-08:00
documentation
MARTIN,REVELES,BRAR
is_lateral_inspection
false
