Wastewater/Activity/PacpInspection/1.0Nov 9, 2018, 09:23 AM
H 1363_H 1362 _11092018_014518.mp4
- Date
- 11/09/2018
- W/O
- 735502
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01187
- PipeID
- P26160
- Time
- 1:23 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6203
- Sewer Name
- H JOINT OUTFALL H - UNIT 5D RELIEF
- City
- EL MONTE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 28
- Purpose
- Routine Assessment
- Project
- WO_735502_TV15242_NOV2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- H 1363
- Downstream MH
- H 1362
- Dir. of Survey
- Downstream
- Length Surveyed
- 595.9 ft.
- Total Length
- 595.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2W00
- O&M Rating
- 236
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 236
Observation photos (2)

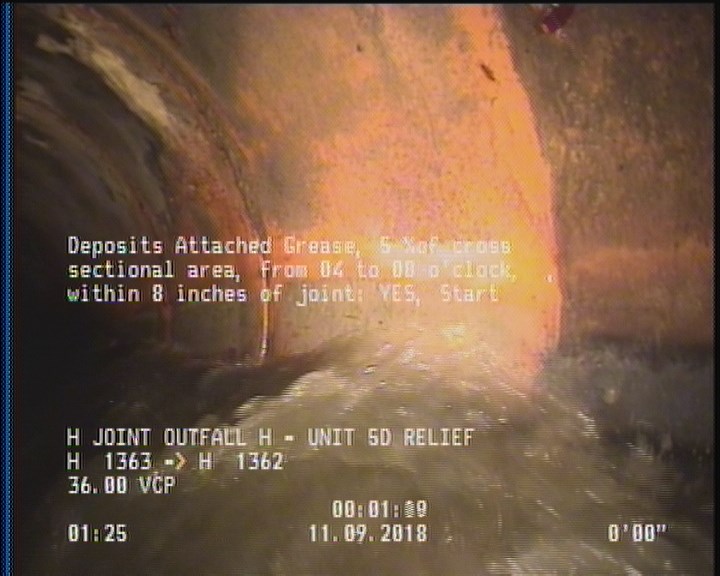

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

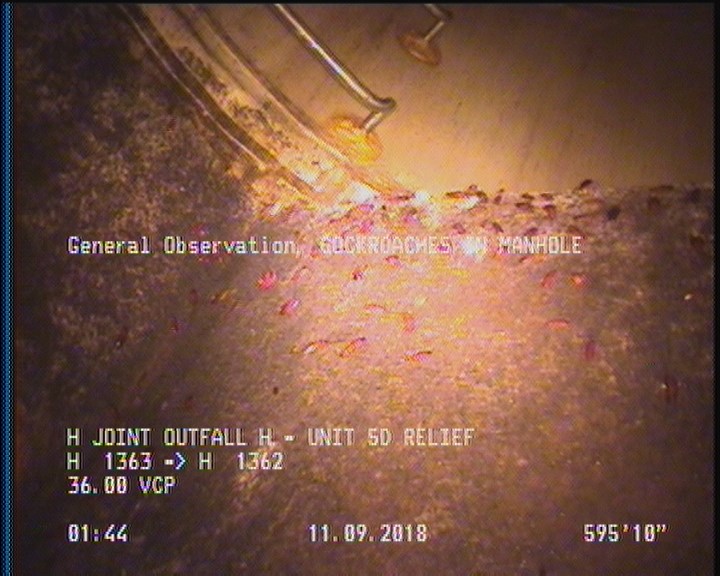

595.9 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 595.9 | MGO | COCKROACHES IN MANHOLE |
| 595.9 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 593.4 | DAGS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 595.9 | AMH | H 1362 |
| 2 | DAGS | — |
| 0 | AMH | H 1363 |
Properties (7)
- additional_info
- SC365369
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-11-09T01:23:57-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 40073
