Wastewater/Activity/PacpInspection/1.0Nov 8, 2018, 10:07 AM
H 1297_H 1339 _11082018_021800.mp4
- Date
- 11/08/2018
- W/O
- 735049
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01184
- PipeID
- P25883
- Time
- 2:07 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6202
- Sewer Name
- H JOINT OUTFALL H - UNIT 8L RELIEF
- City
- AZUSA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_735049_TV22099_NOV2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- H 1297
- Downstream MH
- H 1339
- Dir. of Survey
- Downstream
- Length Surveyed
- 43.9 ft.
- Total Length
- 43.9 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2800
- O&M Rating
- 16
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 18
Observation photos (2)

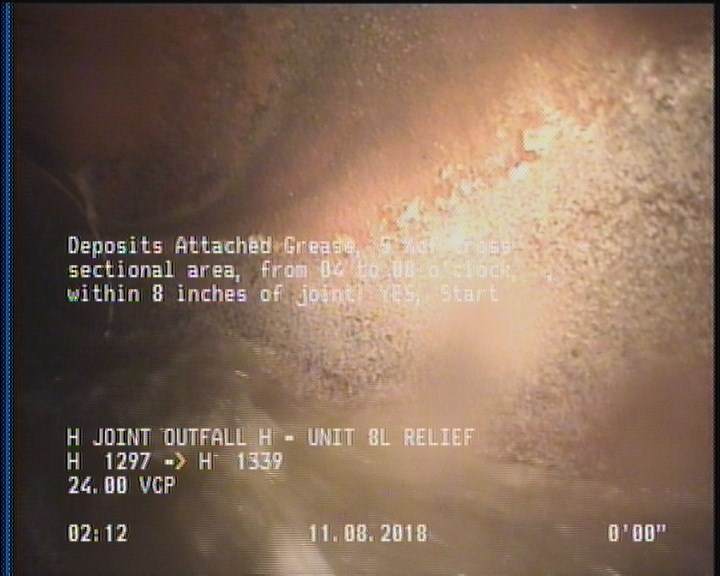

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

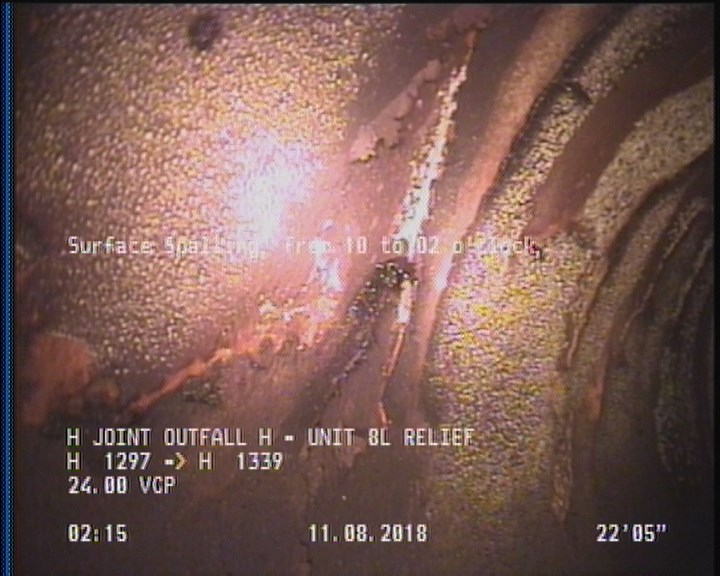

22.4 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 43.9 | AMH | H 1339 |
| 22.4 | SSS | — |
| 43.9 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | MGO | STOP LOG CONNECTION AT MH 3 O'CLOCK |
| 43.9 | DAGS | — |
| 2 | DAGS | — |
| 0 | AMH | H 1297 |
Properties (7)
- additional_info
- SC365368
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-11-08T02:07:32-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 39562
