Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 8, 2018, 08:50 AM

  • H 1332_H 1331 _11082018_010946.mp4

Date
11/08/2018
W/O
735049
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01184
PipeID
P25875
Time
12:50 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6202
Sewer Name
H JOINT OUTFALL H - UNIT 8L RELIEF
City
AZUSA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
11
Purpose
Routine Assessment
Project
WO_735049_TV22099_NOV2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
H 1332
Downstream MH
H 1331
Dir. of Survey
Downstream
Length Surveyed
526.8 ft.
Total Length
526.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2T00
O&M Rating
214
Overall Index
2
Overall Quick
—
Overall Rating
214
Pipe schematic from manhole H 1332 to H 1331
MH: H 1332MH: H 1331downstream0 ft. AMH - Upstream Manhole, Survey Begins - H 13320 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start56 ft. ISZ - Intruding Sealing Other, 5 %of cross sectional area, from 11 to 04 o'clock99.1 ft. ISZ - Intruding Sealing Other, 5 %of cross sectional area, from 01 to 04 o'clock525.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish526.8 ft. AMH - Downstream Manhole, Survey Ends - H 1331

Observation photos (3)

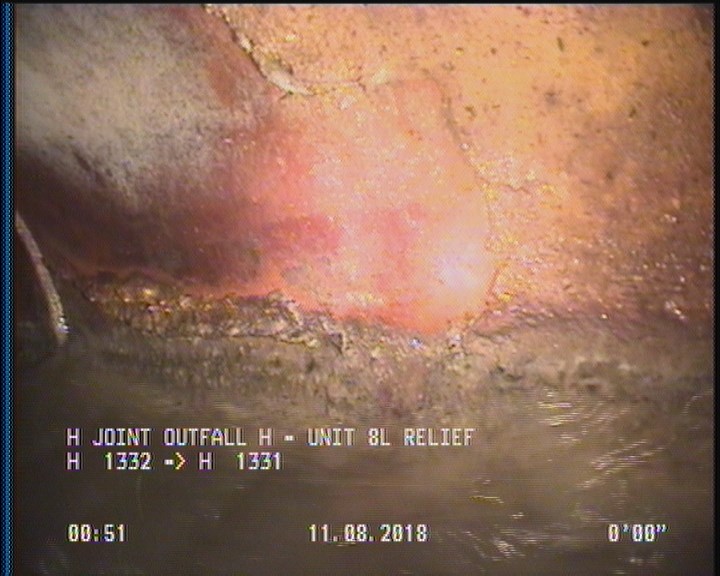

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

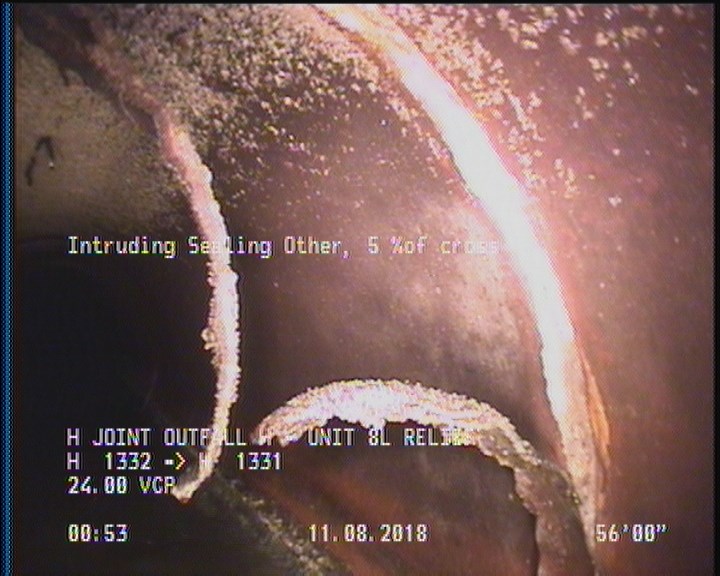

  • Intruding Sealing Other, 5 %of cross sectional area, from 11 to 04 o'clock

    56 ft. - Intruding Sealing Other, 5 %of cross sectional area, from 11 to 04 o'clock

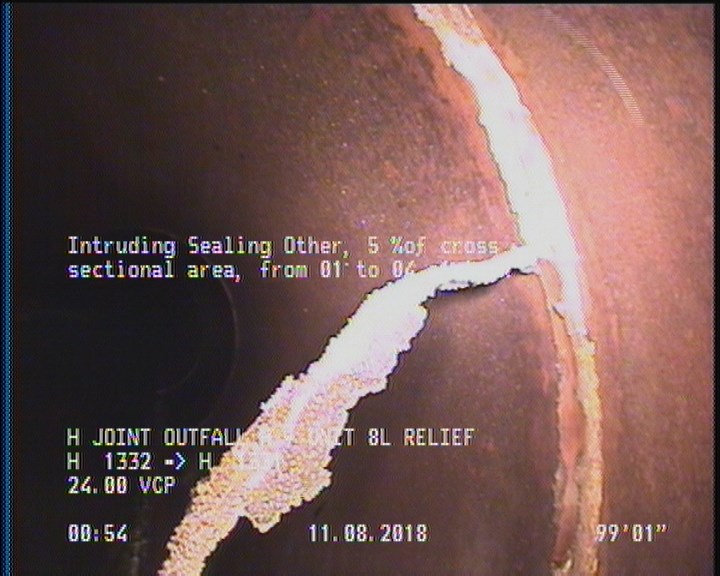

  • Intruding Sealing Other, 5 %of cross sectional area, from 01 to 04 o'clock

    99.1 ft. - Intruding Sealing Other, 5 %of cross sectional area, from 01 to 04 o'clock

All inspections of P25875Work order 735049

Observations (8)

DistanceCodeObservation
2DAGS—
0AMHH 1332
526.8AMHH 1331
99.1ISZ—
0MWM—
525.7DAGS—
0MWL—
56ISZ—

Properties (6)

additional_info
SC365368
customer
LACSD
datetime
2018-11-08T00:50:08-08:00
documentation
PRO PIPE
is_lateral_inspection
false
year_laid
39562
