Wastewater/Activity/PacpInspection/1.0Nov 26, 2018, 09:09 AM
H 0001_B 0070B_11262018_011555.mp4
- Date
- 11/26/2018
- W/O
- 723887
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00115
- PipeID
- P09445
- Time
- 1:09 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6227
- Sewer Name
- B JOINT OUTFALL B - UNIT 9C
- City
- COMPTON
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_723887_TV08061_SEP2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 90 in.
- Width
- 90 in.
- Upstream MH
- B 0070B
- Downstream MH
- H 0001
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (2)

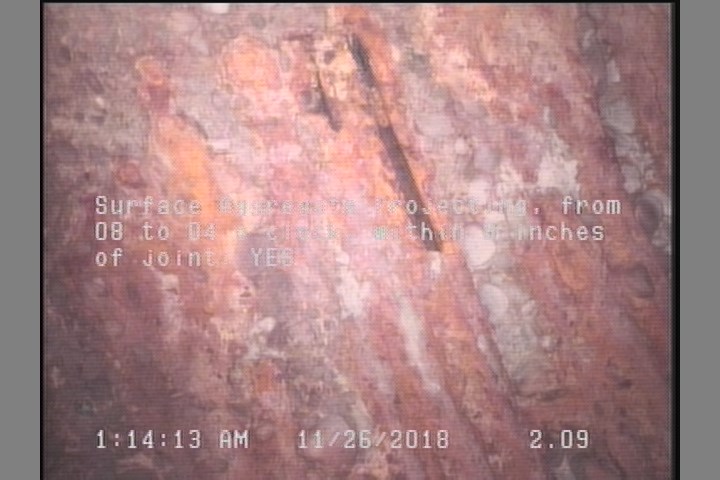

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES

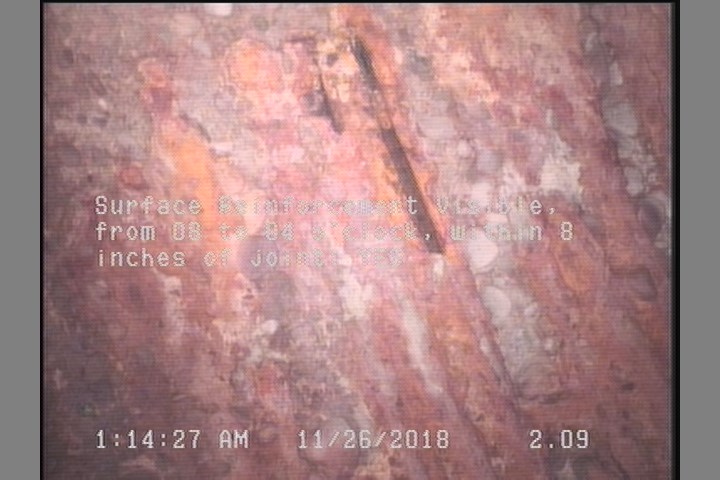

2.1 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 2.1 | AMH | H 0001 ZOOMED IN |
| 2.1 | SAP | — |
| 0 | AMH | B 0070B |
| 2.1 | SRV | — |
| 0 | MWL | — |
Properties (7)
- additional_info
- SC365455
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-11-26T01:09:03-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 33875
