Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 3, 2018, 10:00 AM

  • 32 0209_32 0207 _12032018_022303.mp4

Date
12/03/2018
W/O
735047
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00885
PipeID
P19963
Time
2:00 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6261
Sewer Name
32 AVENUE SCOTT TRUNK
City
SANTA CLARITA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
06
Purpose
Routine Assessment
Project
RFIR_WO_735047_TV32054_NOV2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
32 0209
Downstream MH
32 0207
Dir. of Survey
Downstream
Length Surveyed
430.1 ft.
Total Length
430.1 ft.
Structural Index
3
Structural Quick
3B21
Structural Rating
47
O&M Index
2
O&M Quick
2a00
O&M Rating
340
Overall Index
2
Overall Quick
—
Overall Rating
387
Pipe schematic from manhole 32 0209 to 32 0207
MH: 32 0209MH: 32 0207downstream0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 32 02092 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start8.2 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start152.4 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"277 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES325.9 ft. CM - Crack Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES343.7 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"354.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start426 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish427.4 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish430.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish430.1 ft. AMH - Downstream Manhole, Survey Ends - 32 0207

Observation photos (5)

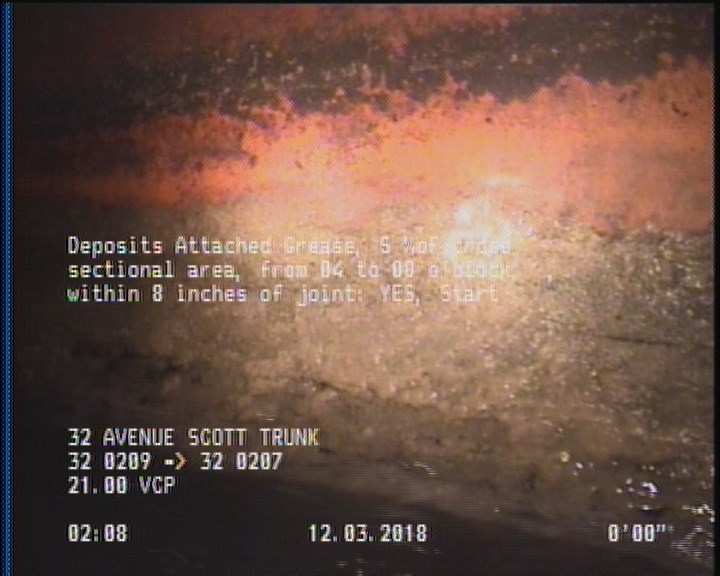

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

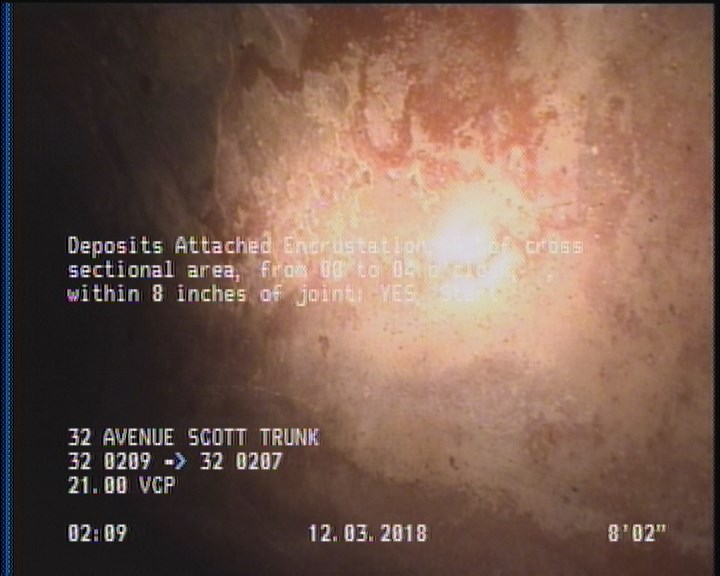

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    8.2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

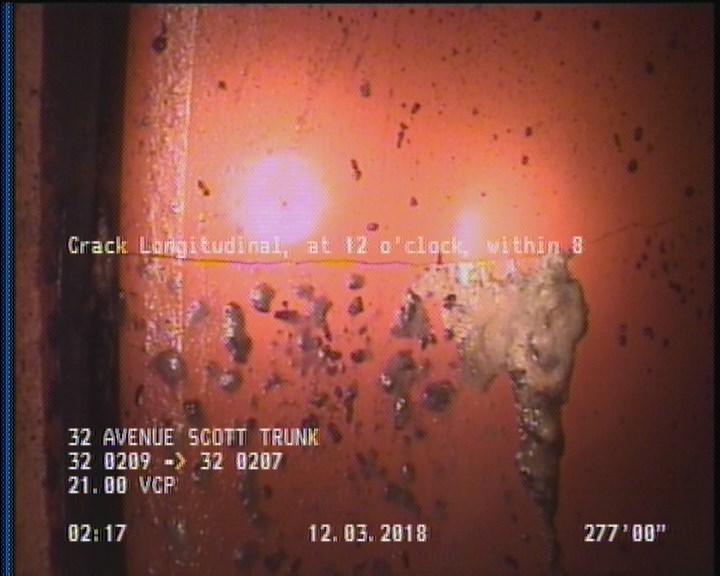

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    277 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

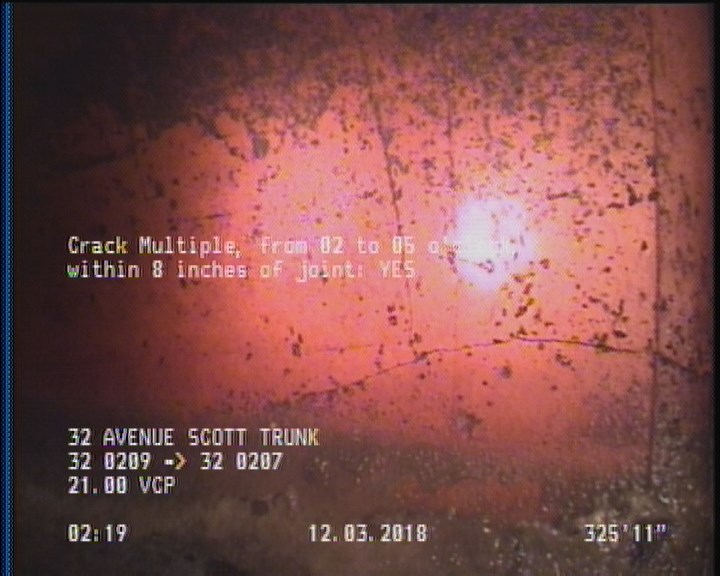

  • Crack Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES

    325.9 ft. - Crack Multiple, from 02 to 05 o'clock, within 8 inches of joint: YES

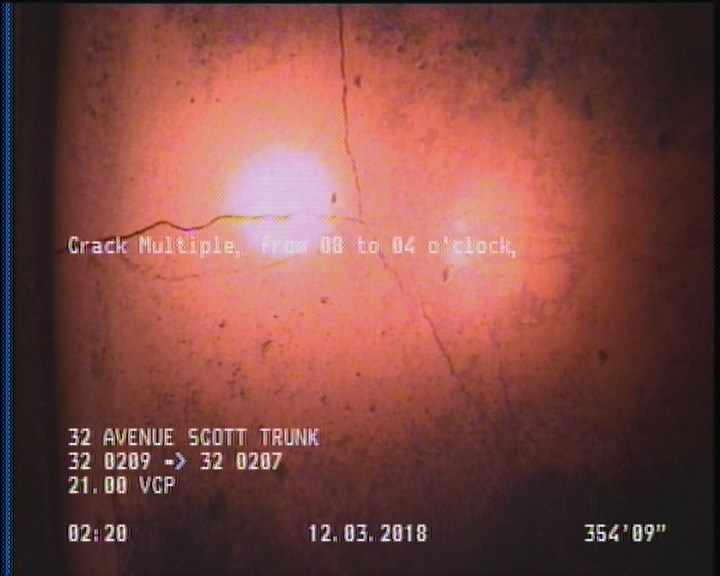

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    354.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P19963Work order 735047

Observations (15)

DistanceCodeObservation
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
430.1DAGS—
426CM—
277CL—
354.8CM—
430.1AMH32 0207
2DAGS—
8.2DAE—
0MWM—
343.7TFA—
0MWL—
152.4TFA—
325.9CM—
427.4DAE—
0AMH32 0209

Properties (6)

additional_info
SC365377
custom_field_two
3
customer
LACSD
datetime
2018-12-03T02:00:46-08:00
documentation
PRO PIPE
is_lateral_inspection
false
