Wastewater/Activity/PacpInspection/1.0Nov 26, 2018, 10:34 AM
05 0341_05 0340 _11262018_025256.mp4
- Date
- 11/26/2018
- W/O
- 735027
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00432
- PipeID
- P05555
- Time
- 2:34 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6228
- Sewer Name
- 05 DISTRICT #5 MAIN RELIEF TRUNK
- City
- LAWNDALE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- RFIR_WO_735027_TV05325_NOV2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- 05 0341
- Downstream MH
- 05 0340
- Dir. of Survey
- Downstream
- Length Surveyed
- 445.6 ft.
- Total Length
- 445.6 ft.
- Structural Index
- 3
- Structural Quick
- 583Q
- Structural Rating
- 304
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 304
Observation photos (2)

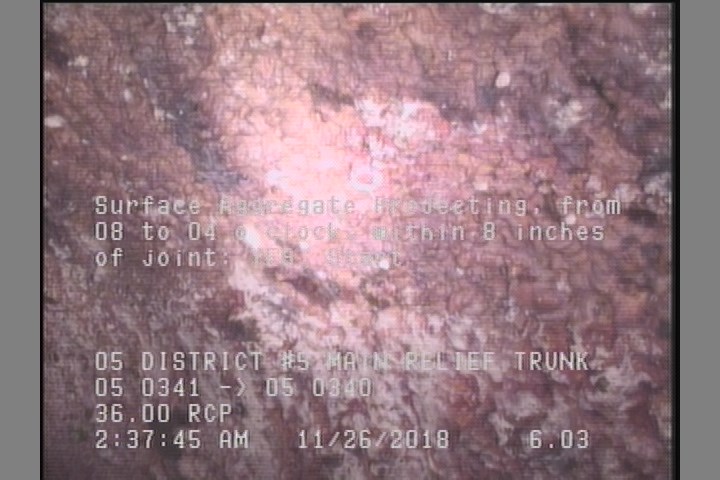

6 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

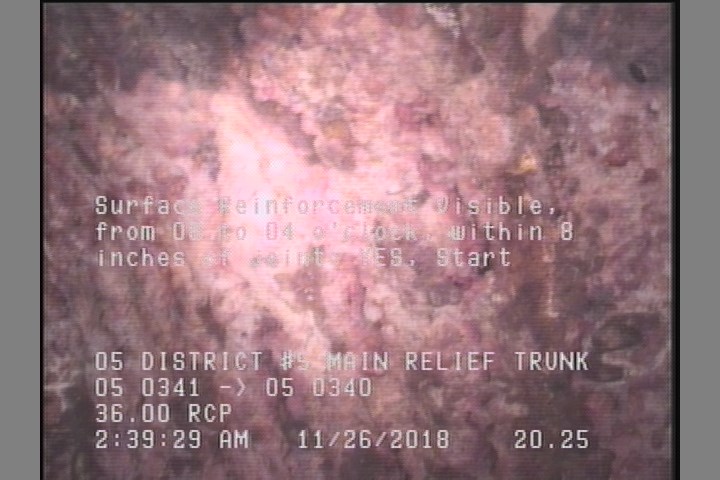

20.2 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 05 0341 |
| 445.6 | AMH | 05 0340 |
| 0 | MWL | — |
| 57.9 | SRV | — |
| 0 | MWM | — |
| 6 | SAP | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 20.2 | SRV | — |
| 445.4 | SAP | — |
Properties (6)
- additional_info
- SC365456
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-11-26T02:34:02-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
