Wastewater/Activity/PacpInspection/1.0Nov 28, 2018, 10:56 AM
05 2078_05 2077 _11282018_030439.mp4
- Date
- 11/28/2018
- W/O
- 735027
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00432
- PipeID
- P07222
- Time
- 2:56 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6234
- Sewer Name
- 05 DISTRICT #5 MAIN RELIEF TRUNK
- City
- HAWTHORNE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- RFIR_WO_735027_TV05325_NOV2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 33 in.
- Width
- 33 in.
- Upstream MH
- 05 2078
- Downstream MH
- 05 2077
- Dir. of Survey
- Downstream
- Length Surveyed
- 46.2 ft.
- Total Length
- 46.2 ft.
- Structural Index
- 3
- Structural Quick
- 5239
- Structural Rating
- 37
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 37
Observation photos (2)

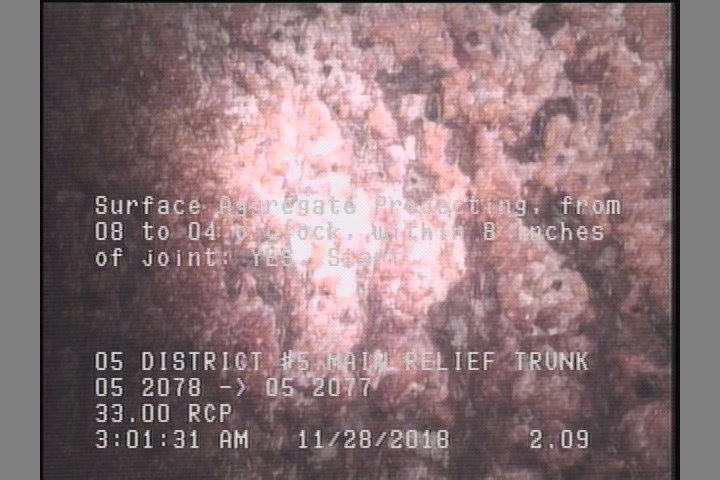

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

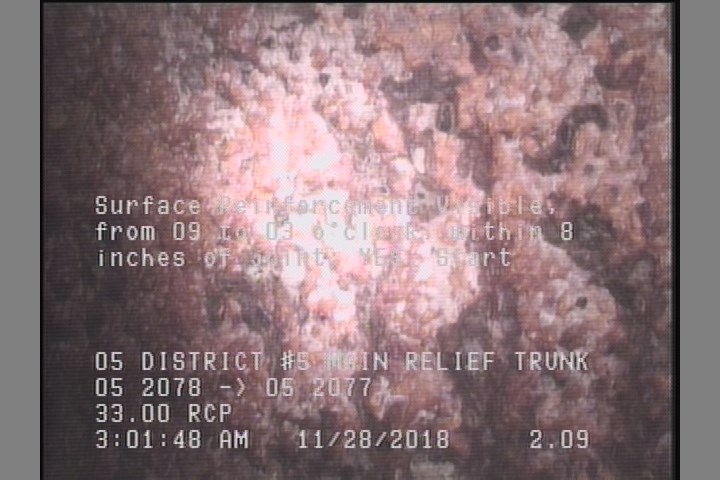

2.1 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 46.2 | SAP | — |
| 2.1 | SAP | — |
| 0 | AMH | 05 2078 |
| 2.1 | SRV | — |
| 12.1 | SRV | — |
| 46.2 | AMH | 05 2077 |
| 46.2 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC365462
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-11-28T02:56:30-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
