Wastewater/Activity/PacpInspection/1.0Jan 31, 2019, 08:32 AM
Section#1_18 0303_18 0302__1312019__I0113.mp4
- Date
- 01/31/2019
- W/O
- 0751245
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00683
- PipeID
- P14134
- Time
- 12:32 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Heavy Cleaning
- Media Label
- I0113
- Sewer Name
- 18 LA MIRADA TRUNK, SECTS 1&2
- City
- LA MIRADA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 31
- Purpose
- Maintenance Related
- Project
- 20190131MDM_LA_MIRADA_TRUNK_SECTS_1_2
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 18 0303
- Downstream MH
- 18 0302
- Dir. of Survey
- Downstream
- Length Surveyed
- 57.8 ft.
- Total Length
- 57.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 3126
- O&M Rating
- 15
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (4)

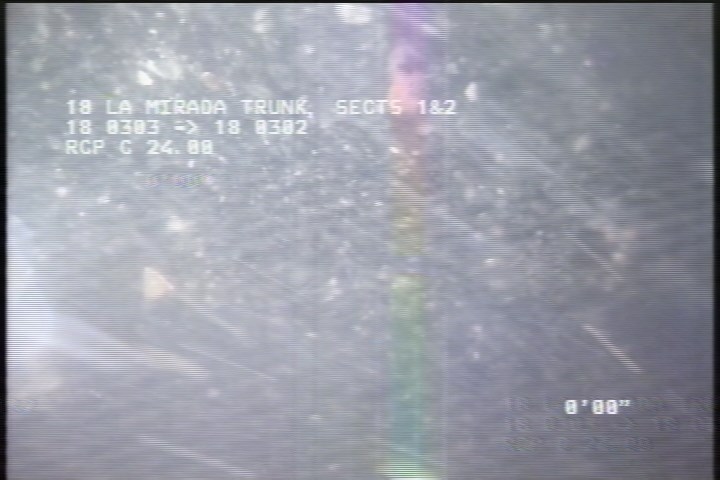

2 ft. - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - SLUDGE LIKE DEBRIE

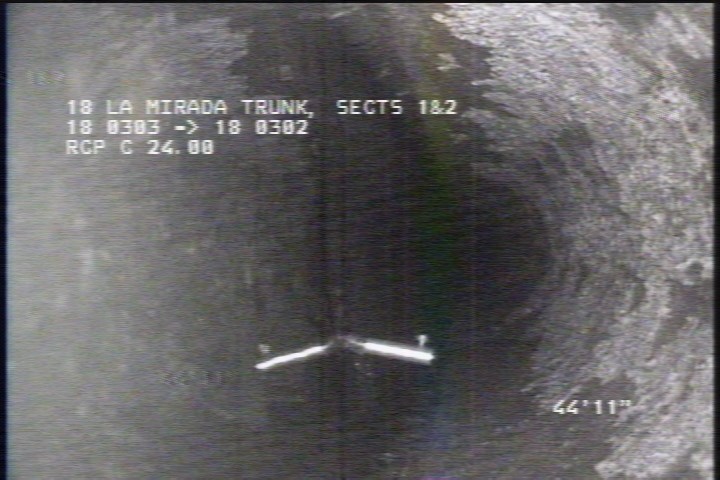

44.9 ft. - General Observation - BROKEN CCTV TRACTOR WHEEL

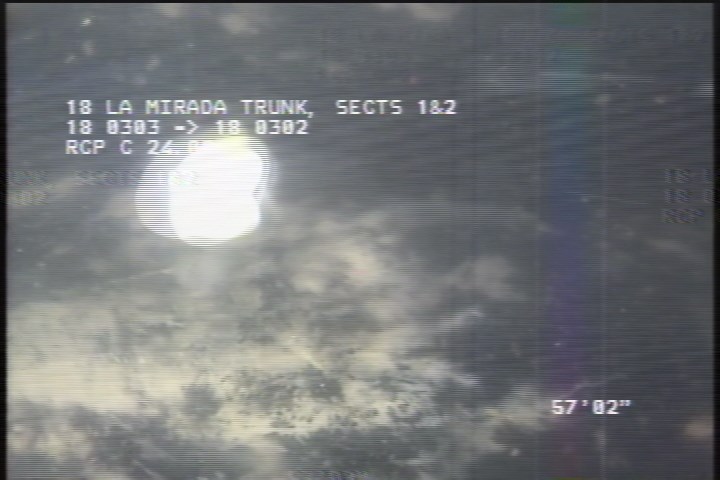

57.2 ft. - Deposits Settled Other, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO - SLUDGE LIKE DEBRIE

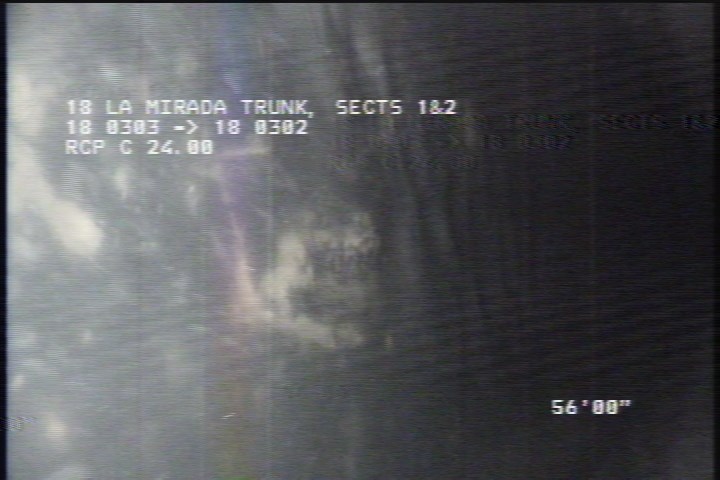

57.8 ft. - Survey Abandoned - 15% SLUDGE LIKE DEBRIE
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 44.9 | MGO | BROKEN CCTV TRACTOR WHEEL |
| 0 | AMH | 12:45AM |
| 57.2 | DSZ | SLUDGE LIKE DEBRIE |
| 0 | MWL | — |
| 37.7 | DSZ | SLUDGE LIKE DEBRIE |
| 57.8 | MSA | 15% SLUDGE LIKE DEBRIE |
| 9.5 | DSZ | SLUDGE LIKE DEBRIE |
| 2 | DSZ | SLUDGE LIKE DEBRIE |
| 0 | MWM | — |
| 56.6 | DSZ | SLUDGE LIKE DEBRIE |
Properties (5)
- additional_info
- POST DEBRIE EVALUATION
- customer
- LACSD
- datetime
- 2019-01-31T00:32:40-08:00
- documentation
- MARTIN,REVELES,OLIVER 111,BRAR
- is_lateral_inspection
- false
