Wastewater/Activity/PacpInspection/1.0Jan 30, 2019, 09:12 PM
Section#2_02 1870_02 1869__1302019__I0112.mp4
- Date
- 01/30/2019
- W/O
- 0751205
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00246
- PipeID
- P04228
- Time
- 1:12 PM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0112
- Sewer Name
- 02 DOUGLAS AVENUE TRUNK
- City
- EAST LOS ANGELES
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190130SHO_DOUGLAS_AVENUE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 02 1870
- Downstream MH
- 02 1869
- Dir. of Survey
- Downstream
- Length Surveyed
- 93.9 ft.
- Total Length
- 93.9 ft.
- Structural Index
- 3
- Structural Quick
- 3C00
- Structural Rating
- 54
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 54
Observation photos (2)

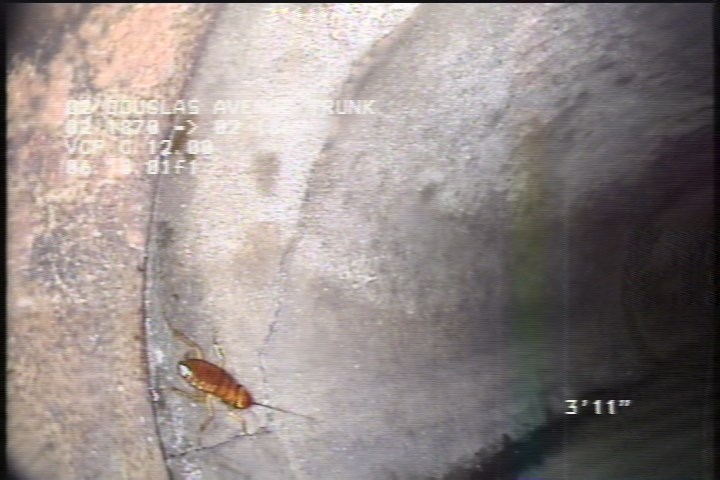

3.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

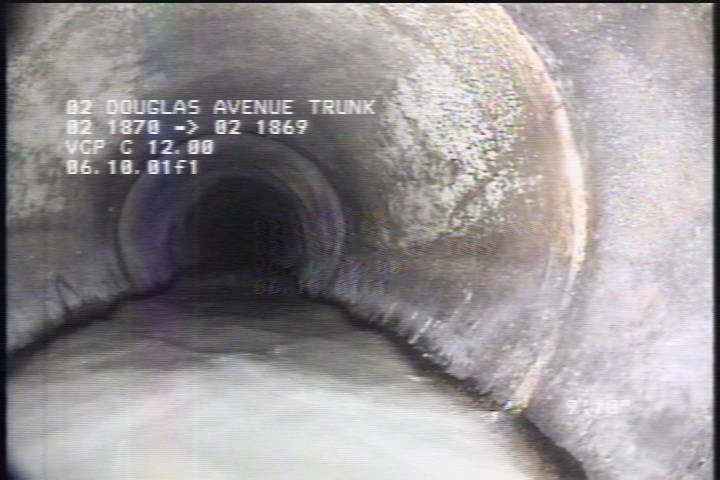

9.8 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 93.9 | MGO | ACTIVE CONNECTION INT HE MH @ 9 |
| 93.9 | AMH | MH 1869 |
| 9.8 | CM | — |
| 54.1 | TF | UNKNOWN |
| 93.9 | MGO | STUB CONNECTION IN THE MH @ 3 |
| 69.6 | TF | — |
| 13.1 | TF | UNKOWN |
| 93.9 | CM | — |
| 3.9 | CM | — |
| 0 | MWM | — |
| 0 | AMH | MH 1870 |
| 0 | MWL | — |
Properties (7)
- additional_info
- RFIR
- custom_field_three
- CRACKS THROUGHOUT
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-01-30T13:12:04-08:00
- documentation
- OBREGON, YOUNG, RUVALCABA, CASTILLO
- is_lateral_inspection
- false
