Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 28, 2019, 09:14 PM

  • Section#3_02 1878_02 1877__1282019__I0107.mp4

Date
01/28/2019
W/O
0751205
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00246
PipeID
P04236
Time
1:14 PM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0107
Sewer Name
02 DOUGLAS AVENUE TRUNK
City
EAST LOS ANGELES
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
12
Purpose
Capital Improvement Program Assesment
Project
20190128SHO_DOUGLAS_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
02 1878
Downstream MH
02 1877
Dir. of Survey
Downstream
Length Surveyed
278.9 ft.
Total Length
278.9 ft.
Structural Index
3
Structural Quick
413I
Structural Rating
160
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
160
Pipe schematic from manhole 02 1878 to 02 1877
MH: 02 1878MH: 02 1877downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - MH 18780 ft. MWM - Water Mark, 20 %of cross sectional area4.5 ft. CM - Crack Multiple, from 12 to 01 o'clock, within 8 inches of joint: NO - F8.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"24.6 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start43.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"53.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"56.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"70.2 ft. FM - Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES74.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"104.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"122.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"142.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"178.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"186.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"206.3 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"221.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"278.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish278.9 ft. AMH - Downstream Manhole, Survey Ends - MH 1877

Observation photos (2)

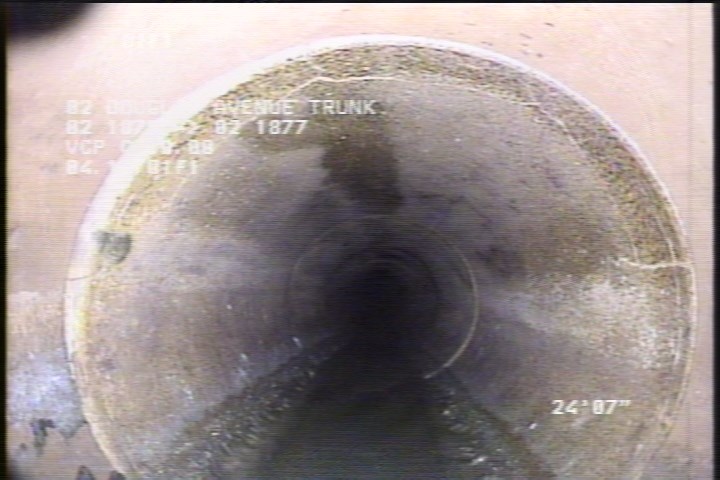

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    24.6 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

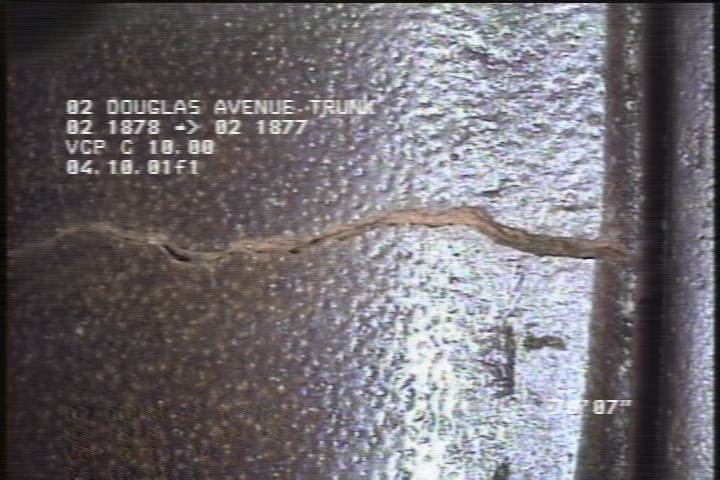

  • Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

    70.2 ft. - Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

All inspections of P04236Work order 0751205

Observations (20)

DistanceCodeObservation
186.1TF—
4.5CMF
104.8TF—
8.3TF—
278.1CM—
278.9AMHMH 1877
74.1TF—
24.6CM—
0MWL—
0AMHMH 1878
70.2FM—
43.8TF—
142.7TF—
0MWM—
206.3TF—
122.5TF—
221.4TFC—
53.7TF—
56.3TF—
178.3TF—

Properties (6)

custom_field_three
CRACKS THROUGHOUT
custom_field_two
3
customer
LACSD
datetime
2019-01-28T13:14:04-08:00
documentation
OBREGON, YOUNG, RUVALCABA
is_lateral_inspection
false
