Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 28, 2019, 08:27 PM

  • Section#2_02 1879_02 1878__1282019__I0107.mp4

Date
01/28/2019
W/O
0751205
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00246
PipeID
P04237
Time
12:27 PM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0107
Sewer Name
02 DOUGLAS AVENUE TRUNK
City
EAST LOS ANGELES
Loc. details
Other
Location Code
Z
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
12
Purpose
Capital Improvement Program Assesment
Project
20190128SHO_DOUGLAS_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
02 1879
Downstream MH
02 1878
Dir. of Survey
Downstream
Length Surveyed
280.2 ft.
Total Length
280.2 ft.
Structural Index
3
Structural Quick
413J
Structural Rating
163
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
167
Pipe schematic from manhole 02 1879 to 02 1878
MH: 02 1879MH: 02 1878downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - MH 18790 ft. MWM - Water Mark, 25 %of cross sectional area12.6 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6"13.4 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES18.7 ft. CM - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES23.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start27 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"34.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"72.6 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"85.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"123.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"125.7 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"163.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"166.3 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"171.6 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - 65% FULL179 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"190.4 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES212.3 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"240.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"273.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"280.2 ft. AMH - Downstream Manhole, Survey Ends - MH 1878280.2 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish

Observation photos (3)

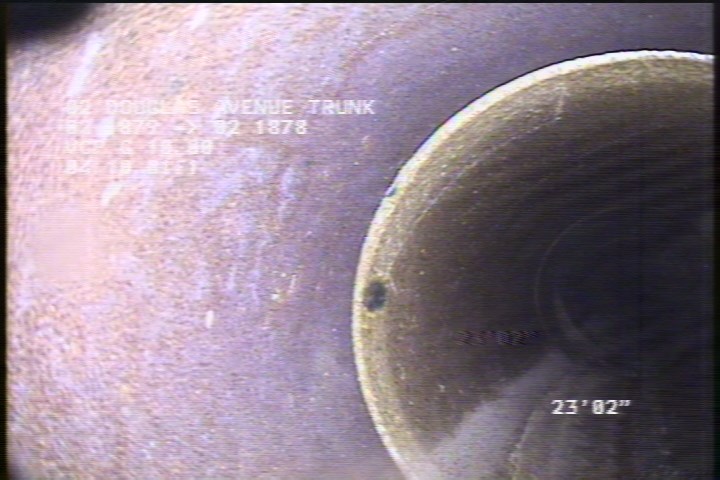

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    23.1 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

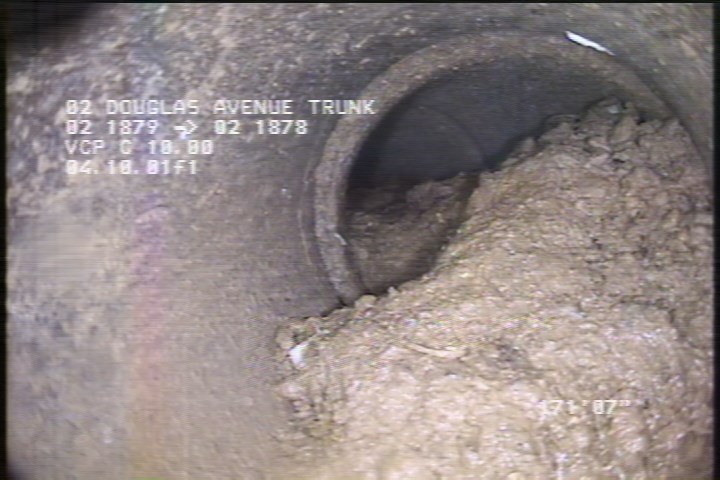

  • Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - 65% FULL

    171.6 ft. - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6" - 65% FULL

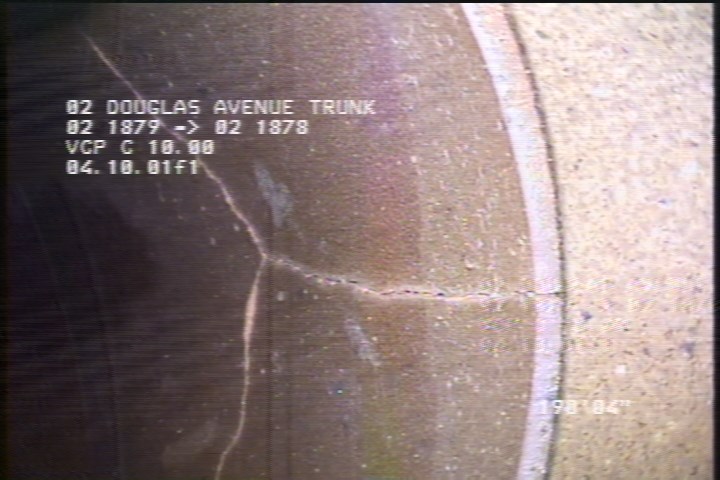

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    190.4 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

All inspections of P04237Work order 0751205

Observations (23)

DistanceCodeObservation
18.7CM—
123.3TF—
240.2TF—
34.5TF—
273.2TF—
85.4TF—
27TF—
12.6TFD—
171.6TFD65% FULL
280.2AMHMH 1878
163.9TF—
23.1CM—
190.4FM—
166.3TF—
125.7TF—
280.2CM—
212.3TF—
13.4CM—
72.6TF—
179TF—
0MWL—
0AMHMH 1879
0MWM—

Properties (6)

custom_field_three
CRACKS THROUGHOUT
custom_field_two
3
customer
LACSD
datetime
2019-01-28T12:27:52-08:00
documentation
OBREGON, YOUNG, RUVALCABA
is_lateral_inspection
false
