Wastewater/Activity/PacpInspection/1.0Jan 28, 2019, 05:05 PM
Section#1_02 1882_02 2437__1282019__I0107.mp4
- Date
- 01/28/2019
- W/O
- 0751205
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00246
- PipeID
- P25976
- Time
- 9:05 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0107
- Sewer Name
- 02 DOUGLAS AVENUE TRUNK
- City
- EAST LOS ANGELES
- Loc. details
- Other
- Location Code
- Z
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190128SHO_DOUGLAS_AVENUE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Upstream MH
- 02 1882
- Downstream MH
- 02 2437
- Dir. of Survey
- Downstream
- Length Surveyed
- 17.7 ft.
- Total Length
- 17.7 ft.
- Structural Index
- 5
- Structural Quick
- 5141
- Structural Rating
- 9
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (2)

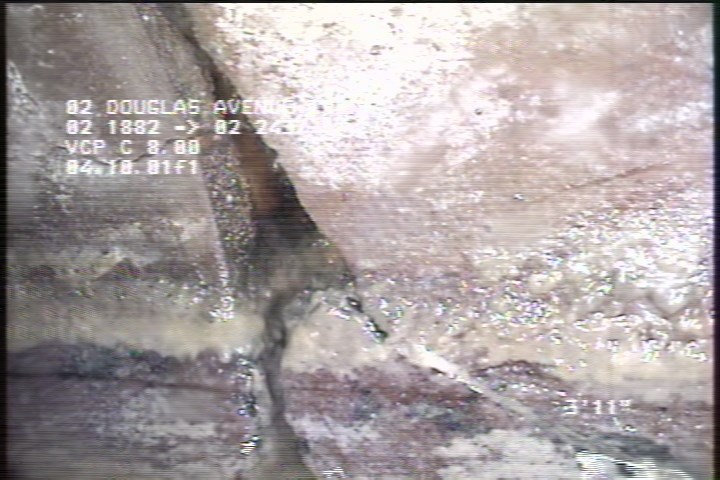

3.9 ft. - Broken, from 09 to 04 o'clock, within 8 inches of joint: YES

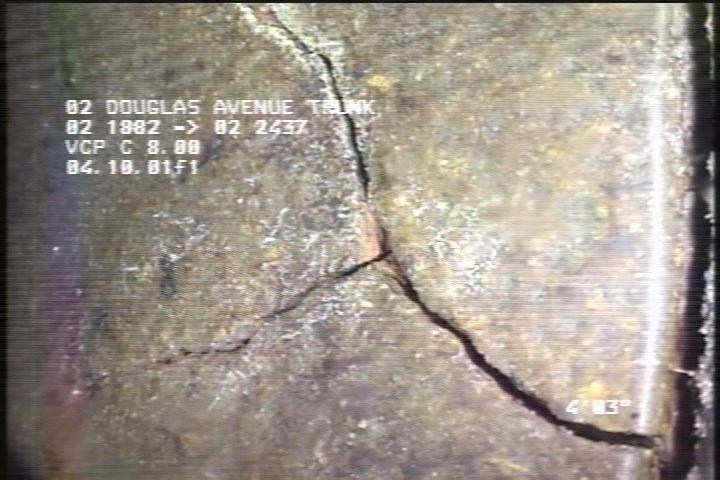

7.1 ft. - Fracture Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 7.1 | FM | — |
| 0 | MWL | — |
| 3.9 | B | — |
| 17.7 | AMH | MH 2437 |
| 0 | AMH | MH 1882 |
Properties (7)
- additional_info
- RFIR
- custom_field_three
- BROKEN PIPE AND FRACTURES
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-28T09:05:02-08:00
- documentation
- OBREGON, YOUNG, RUVALCABA
- is_lateral_inspection
- false
