Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 28, 2019, 12:19 PM

  • Section#4_15 0746_15 0863__1282019__I0106.mp4

Date
01/28/2019
W/O
0749484
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00593
PipeID
P12946
Time
4:19 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0106
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
City
ARCADIA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
09
Purpose
Capital Improvement Program Assesment
Project
20190128MDM_ARCADIA_SIERRA_TRUNK_SECTS_2_5
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
15 0746
Downstream MH
15 0863
Dir. of Survey
Downstream
Length Surveyed
86.9 ft.
Total Length
86.9 ft.
Structural Index
3
Structural Quick
4C2B
Structural Rating
106
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
108
Pipe schematic from manhole 15 0746 to 15 0863
MH: 15 0746MH: 15 0863downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 4:20AM2 ft. MGO - General Observation - 90% MAG COAT START2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTACHED2 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG5.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN39.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - OPEN39.7 ft. DSZ - Deposits Settled Other, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES - ROCK42.3 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG81.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - STUB84.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN86.4 ft. MGO - General Observation - MAG COAT 90% FINISH86.4 ft. MGO - General Observation - ACTIVE MH CONN 3:0086.4 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG86.4 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - PEELING CONCRETE SEVERE AGG ATT ACHED86.9 ft. AMH - Downstream Manhole, Survey Ends - 4:30AM

Observation photos (4)

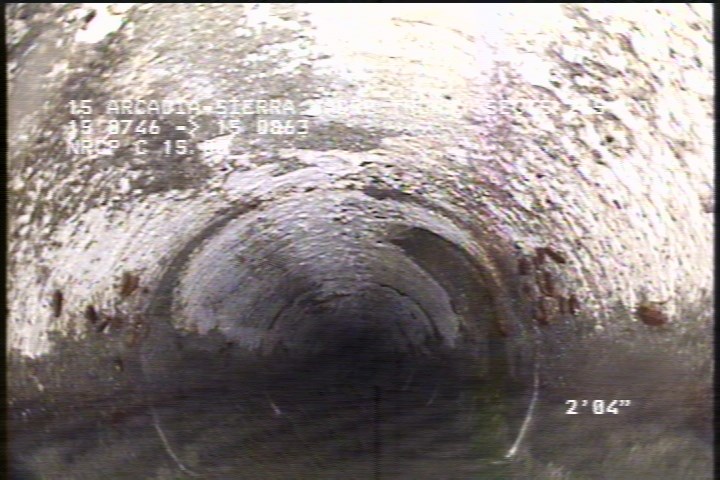

  • General Observation - 90% MAG COAT START

    2 ft. - General Observation - 90% MAG COAT START

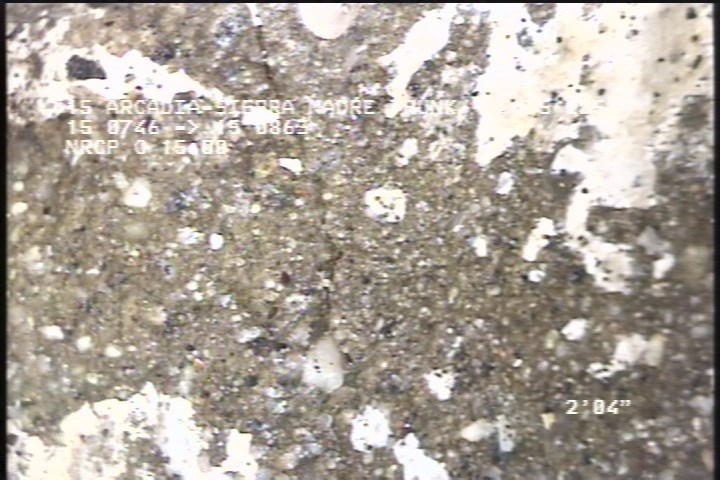

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTACHED

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTACHED

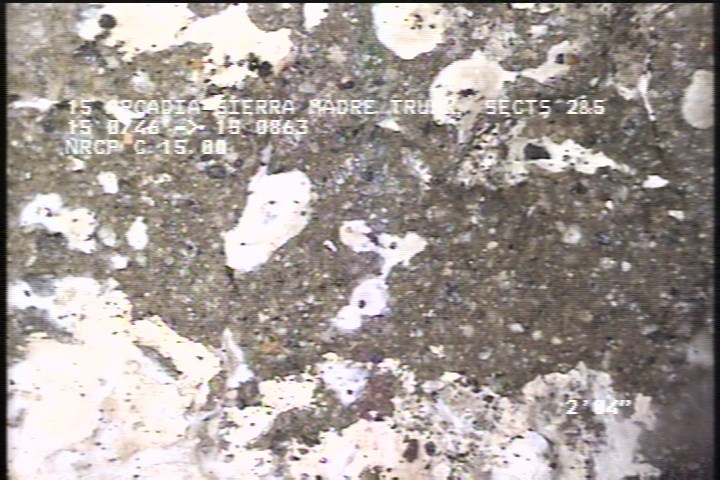

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

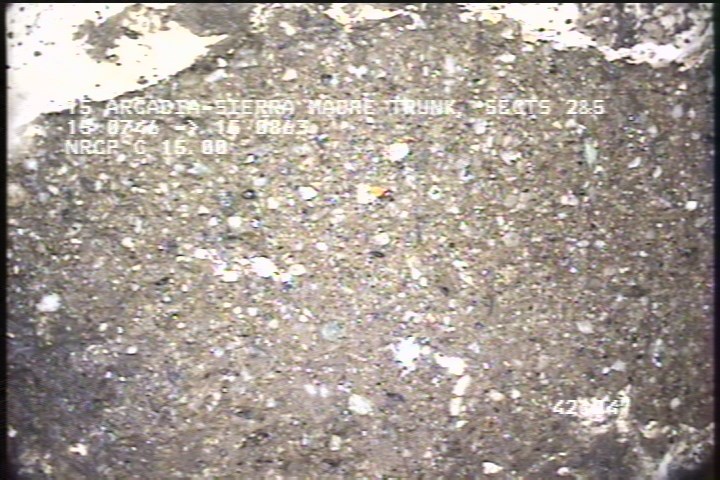

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG

    42.3 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG

All inspections of P12946Work order 0749484

Observations (17)

DistanceCodeObservation
81.3TFCSTUB
42.3SAMSEVERE AGG
39.7TFOPEN
2MGO90% MAG COAT START
86.9AMH4:30AM
2SSSPEELING CONCRETE SEVERE AGG ATTACHED
0MWL—
86.4MGOMAG COAT 90% FINISH
86.4MGOACTIVE MH CONN 3:00
39.7DSZROCK
84.7TFOPEN
0MWM—
86.4SAMSEVERE AGG
2SAMSEVERE AGG
0AMH4:20AM
86.4SSSPEELING CONCRETE SEVERE AGG ATT ACHED
5.7TFOPEN

Properties (6)

custom_field_three
PEELING CONCRETE SEVERE AGG ATTACHED
custom_field_two
2
customer
LACSD
datetime
2019-01-28T04:19:51-08:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
