Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 25, 2019, 07:30 PM

  • 15 0834_15 0812_1252019_113438.mp4

Date
01/25/2019
W/O
0749485
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00594
PipeID
P12641
Time
11:30 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7905
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 3&2A
City
SIERRA MADRE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
01
Purpose
Routine Assessment
Project
20190125DF_ARCADIA_SIERRA_MADRE_TR_SECTS_3_2A
Material
NRCP
Shape
Circular
Height
9.399999618530273 in.
Upstream MH
15 0834
Downstream MH
15 0812
Dir. of Survey
Downstream
Length Surveyed
401.6 ft.
Total Length
401.6 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 15 0834 to 15 0812
MH: 15 0834MH: 15 0812downstream0 ft. AMH - Upstream Manhole, Survey Begins - 11:34 AM0.1 ft. MWM - Water Mark, 15 %of cross sectional area0.1 ft. MWL - Water Level, 10 %of cross sectional area2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. OPEN2 ft. LFW - Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES, Start90 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 4" - 90% GREASE/ROOTS/LATERAL155.5 ft. MGP - General Photograph201.4 ft. RFL - Roots Fine Lateral, at 11 o'clock - 5%201.4 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 4" - 5% ROOTS/LATERAL318.1 ft. MGP - General Photograph398.7 ft. LFW - Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish401.6 ft. MGP - General Photograph401.6 ft. AMH - Downstream Manhole, Survey Ends - 11:59 AM401.6 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)

Observation photos (7)

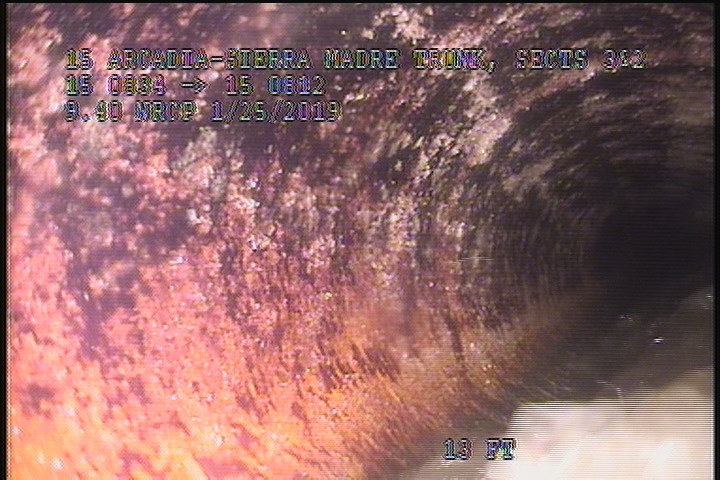

  • Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 4" - 90% GREASE/ROOTS/LATERAL

    90 ft. - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 4" - 90% GREASE/ROOTS/LATERAL

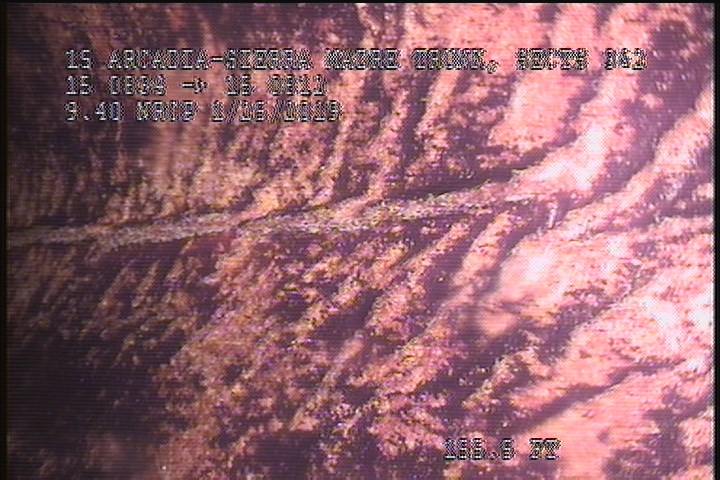

  • General Photograph

    155.5 ft. - General Photograph

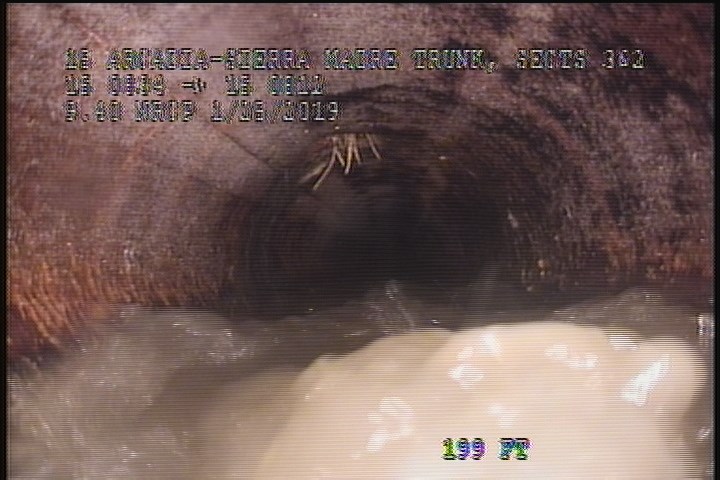

  • Roots Fine Lateral, at 11 o'clock - 5%

    201.4 ft. - Roots Fine Lateral, at 11 o'clock - 5%

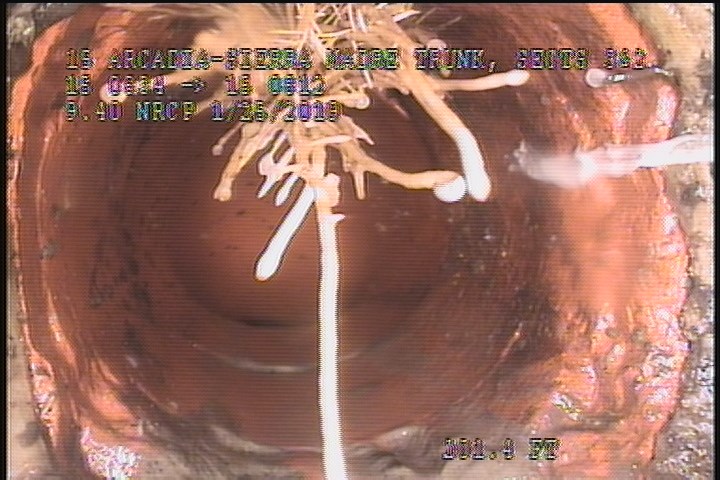

  • Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 4" - 5% ROOTS/LATERAL

    201.4 ft. - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 4" - 5% ROOTS/LATERAL

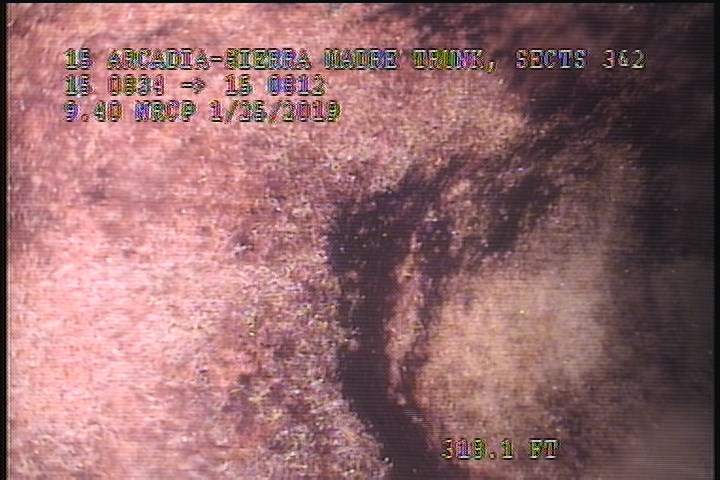

  • General Photograph

    318.1 ft. - General Photograph

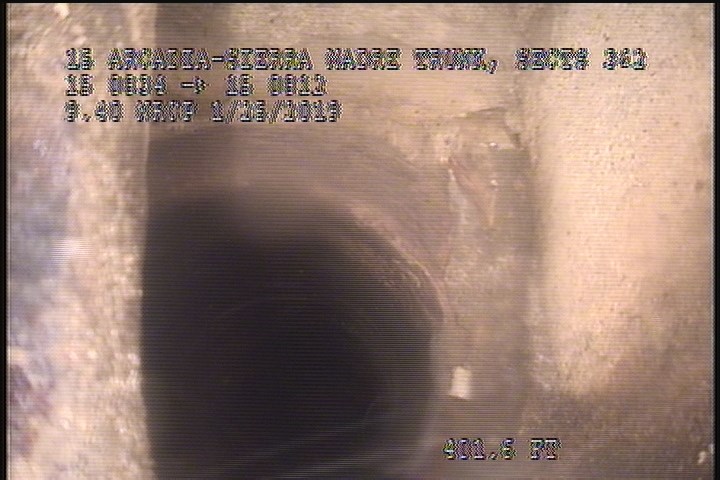

  • General Photograph

    401.6 ft. - General Photograph

All inspections of P12641Work order 0749485

Observations (14)

DistanceCodeObservation
2MGOConn. @ Mh, 9 O' Clock. OPEN
0AMH11:34 AM
90TFD90% GREASE/ROOTS/LATERAL
401.6MGP—
401.6AMH11:59 AM
155.5MGP—
401.6MGOGREASE THROUGHOUT THE REACH (5%)
201.4RFL5%
318.1MGP—
2LFW—
0.1MWM—
201.4TF5% ROOTS/LATERAL
0.1MWL—
398.7LFW—

Properties (7)

custom_field_two
4
customer
LACSD
datetime
2019-01-25T11:30:38-08:00
documentation
FRANKLIN, CASTILLO, RUVALCABA
is_lateral_inspection
false
lining
CIPP
year_laid
20020918
