Wastewater/Activity/PacpInspection/1.0Jan 25, 2019, 08:00 PM
15 1158_15 0812_1252019_120126.mp4
- Date
- 01/25/2019
- W/O
- 0749485
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00593
- PipeID
- P13014
- Time
- 12:00 PM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7905
- Sewer Name
- 15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
- City
- SIERRA MADRE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- 20190125DF_ARCADIA_SIERRA_MADRE_TR_SECTS_2_5
- Material
- NRCP
- Shape
- Circular
- Height
- 9.199999809265137 in.
- Upstream MH
- 15 0812
- Downstream MH
- 15 1158
- Dir. of Survey
- Upstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (4)

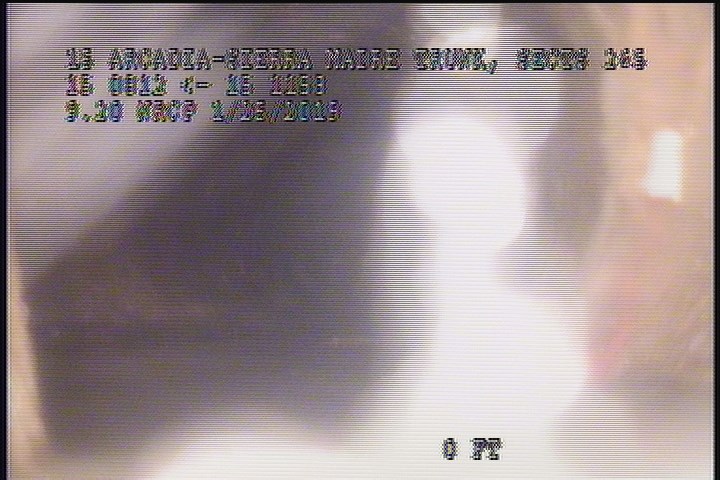

0 ft. - Water Level, 10 %of cross sectional area

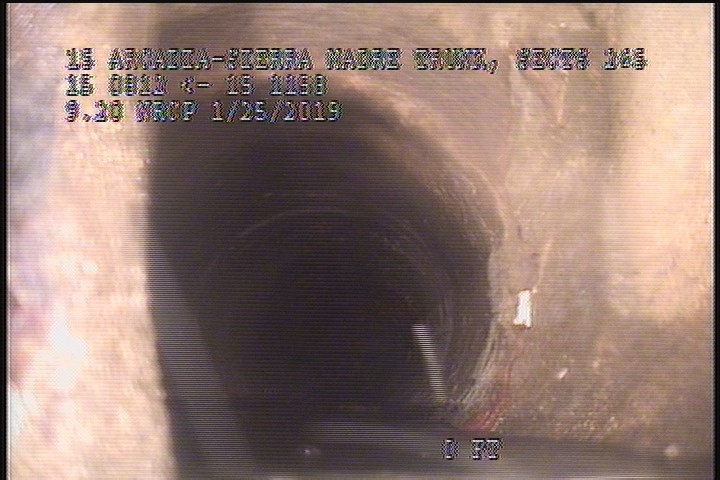

0 ft. - Downstream Manhole, Survey Begins - 12:01 PM

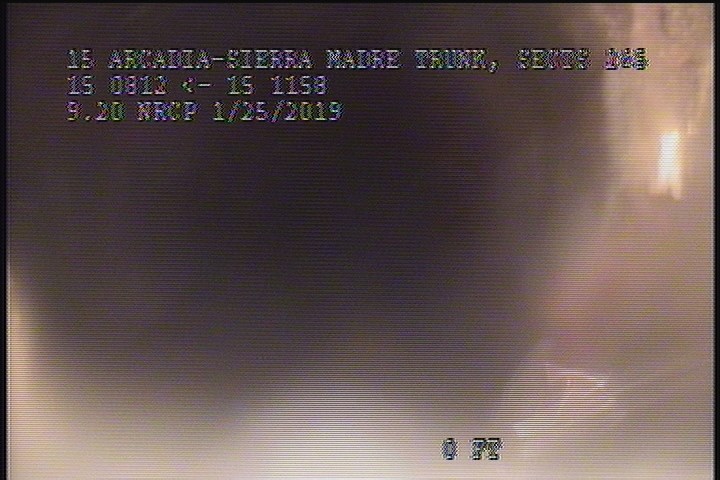

0 ft. - Water Mark, 15 %of cross sectional area

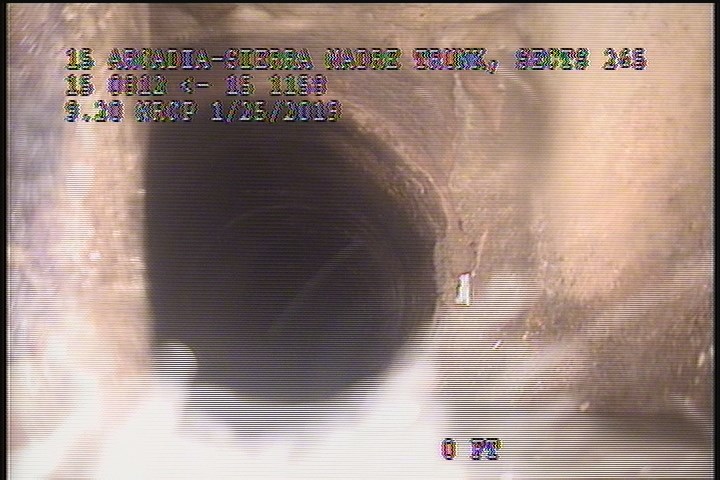

2 ft. - General Photograph
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 2 | AMH | 12:04 PM |
| 2 | MGP | — |
| 0 | MWL | — |
| 0 | AMH | 12:01 PM |
| 0 | MWM | — |
Properties (6)
- additional_info
- BULK HEADE OFF @ MH 812. NO CONNECTION TO MH 1158
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-01-25T12:00:53-08:00
- documentation
- FRANKLIN, CASTILLO, RUVALCABA
- is_lateral_inspection
- false
