Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 25, 2019, 05:32 PM

  • 15 0813_15 1158_1252019_103759.mp4

Date
01/25/2019
W/O
0749485
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00593
PipeID
P21121
Time
9:32 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7905
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
City
SIERRA MADRE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
01
Purpose
Routine Assessment
Project
20190125DF_ARCADIA_SIERRA_MADRE_TR_SECTS_2_5
Material
NRCP
Shape
Circular
Height
9.199999809265137 in.
Upstream MH
15 0813
Downstream MH
15 1158
Dir. of Survey
Downstream
Length Surveyed
322.4 ft.
Total Length
322.4 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 15 0813 to 15 1158
MH: 15 0813MH: 15 1158downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:02 AM0 ft. MGP - General Photograph0.1 ft. MWL - Water Level, 15 %of cross sectional area0.1 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. OPEN2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN2 ft. LFW - Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES, Start8 ft. MGP - General Photograph46.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - Open46.1 ft. RFL - Roots Fine Lateral, at 10 o'clock - 5%49.1 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open/85% ROOTS-LATERAL121.3 ft. MGP - General Photograph160.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open245.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open262.6 ft. MGP - General Photograph321 ft. LFW - Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish321 ft. MGO - General Observation - BULK HEAD322.4 ft. MGO - General Observation - Grease Throughout The Reach (5%)322.4 ft. AMH - Downstream Manhole, Survey Begins - 10:56 AM

Observation photos (7)

  • Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

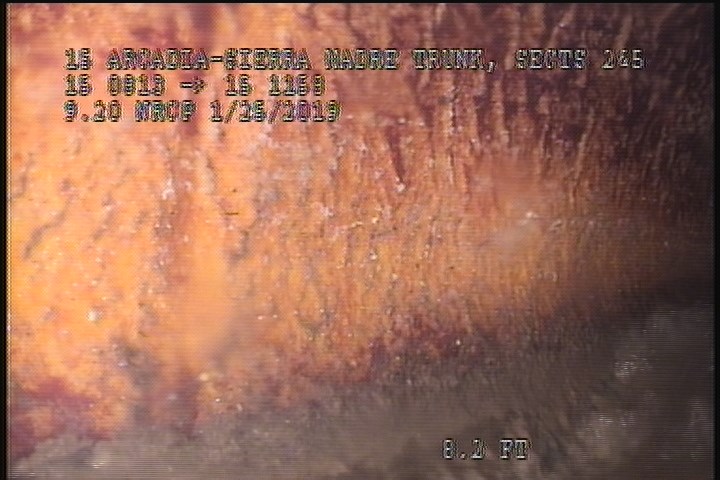

    2 ft. - Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

  • General Photograph

    8 ft. - General Photograph

  • Roots Fine Lateral, at 10 o'clock - 5%

    46.1 ft. - Roots Fine Lateral, at 10 o'clock - 5%

  • Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open/85% ROOTS-LATERAL

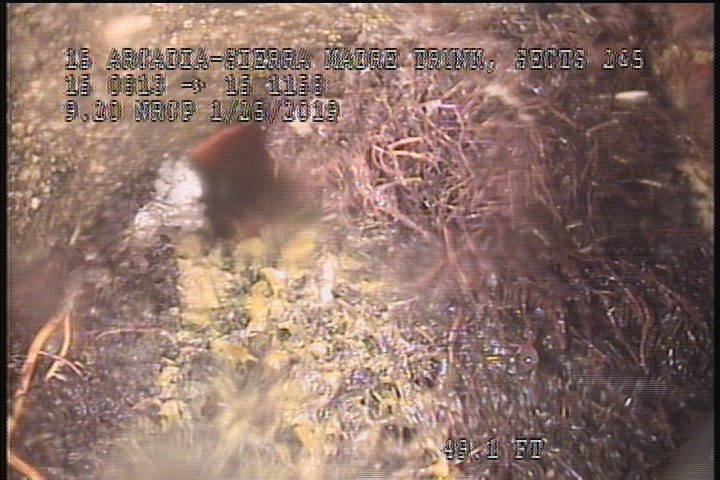

    49.1 ft. - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open/85% ROOTS-LATERAL

  • General Photograph

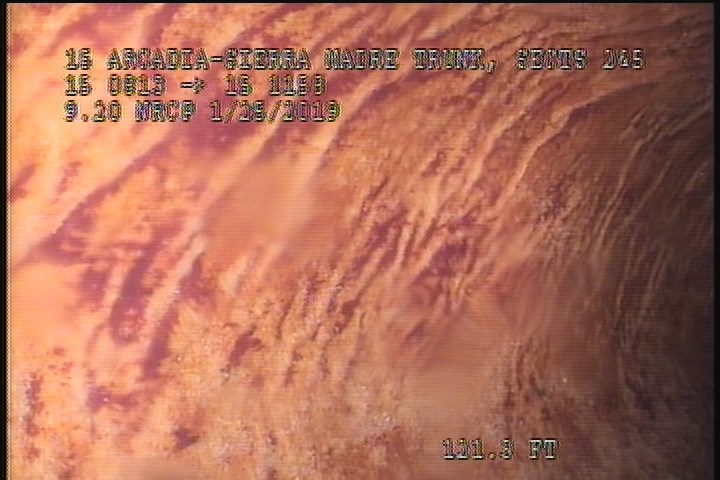

    121.3 ft. - General Photograph

  • General Photograph

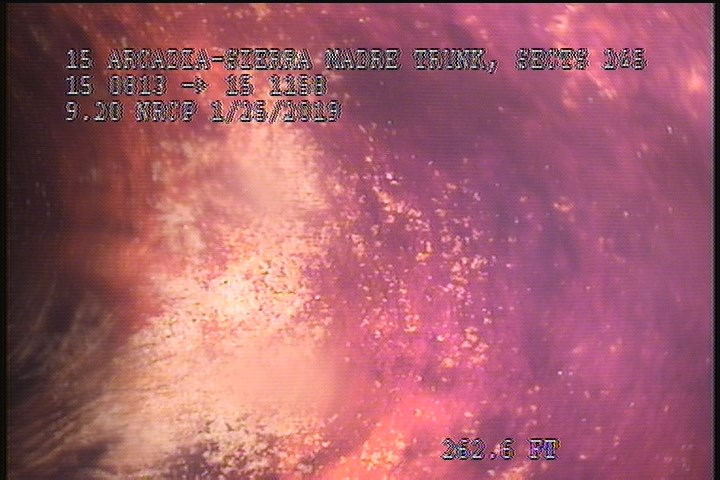

    262.6 ft. - General Photograph

  • General Observation - BULK HEAD

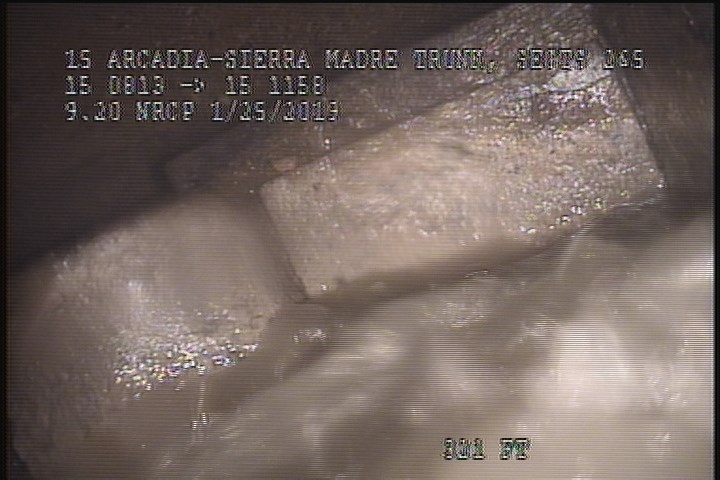

    321 ft. - General Observation - BULK HEAD

All inspections of P21121Work order 0749485

Observations (19)

DistanceCodeObservation
262.6MGP—
2MGOConn. @ Mh, 9 O' Clock. OPEN
8MGP—
46.1TFOpen
322.4MGOGrease Throughout The Reach (5%)
2MGOConn. @ Mh, 3 O' Clock. OPEN
121.3MGP—
2LFW—
46.1RFL5%
160.6TFOpen
0AMH10:02 AM
0.1MWL—
321LFW—
322.4AMH10:56 AM
321MGOBULK HEAD
0MGP—
49.1TFDOpen/85% ROOTS-LATERAL
0.1MWM—
245.6TFOpen

Properties (7)

custom_field_two
4
customer
LACSD
datetime
2019-01-25T09:32:43-08:00
documentation
FRANKLIN, CASTILLO, RUVALCABA
is_lateral_inspection
false
lining
CIPP
year_laid
20020918
