Wastewater/Activity/PacpInspection/1.0Jan 7, 2019, 01:05 PM
18 0558_18 0296_172019_052053.mp4
- Date
- 01/07/2019
- W/O
- 07446336
- Weather
- Light Rain
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00683
- PipeID
- P14126
- Time
- 5:05 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H1097
- Sewer Name
- 18 LA MIRADA TRUNK, SECTS 1&2
- City
- LA MIRADA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- 20190107MDM_LA_MIRADA_TRUNK_SECTS_1_2
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 18 0558
- Downstream MH
- 18 0296
- Dir. of Survey
- Downstream
- Length Surveyed
- 4.7 ft.
- Total Length
- 4.7 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)
1 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - PEELED CONCRETE

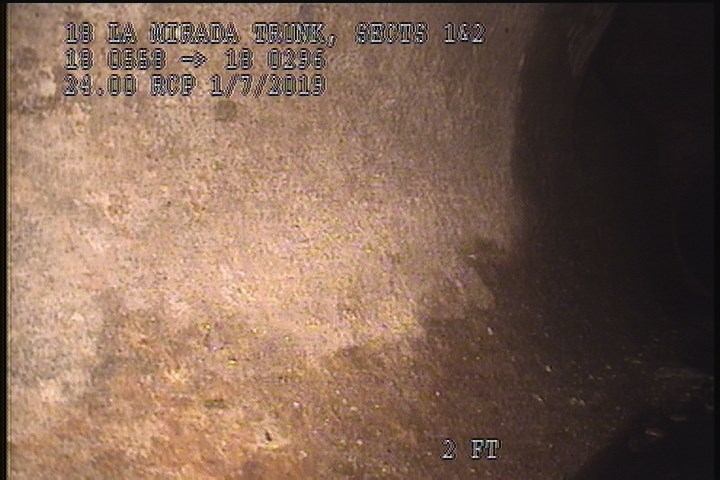

2 ft. - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, - FLAKING CPNCRETE

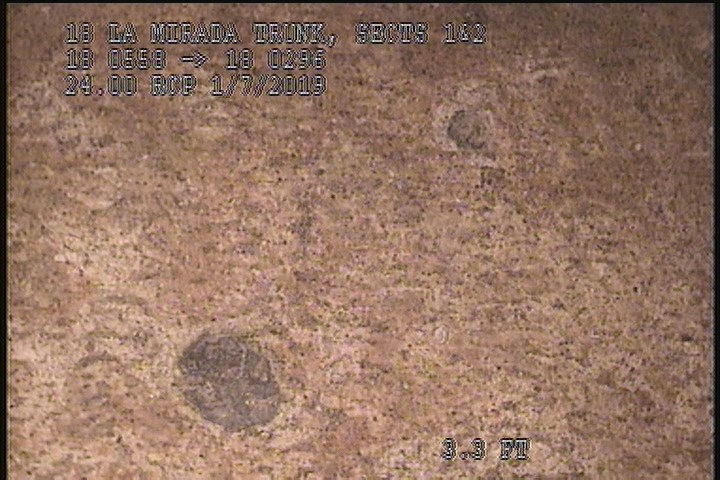

3.3 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: NO - SEVERE AGG VERY SPORATIC
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 3.3 | SAV | SEVERE AGG VERY SPORATIC |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. OPEN |
| 2 | SSS | FLAKING CPNCRETE |
| 4.7 | AMH | 5:15AM |
| 1 | DSZ | PEELED CONCRETE |
| 0 | AMH | 5:05AM |
Properties (6)
- custom_field_three
- SEVERE AGG VERY SPORATIC
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-01-07T05:05:00-08:00
- documentation
- MARTIN,REVELES,BRAR
- is_lateral_inspection
- false
