Wastewater/Activity/PacpInspection/1.0Jan 7, 2019, 10:26 AM
18 0562_18 0299_172019_030603.mp4
- Date
- 01/07/2019
- W/O
- 07446336
- Weather
- Light Rain
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00683
- PipeID
- P14130
- Time
- 2:26 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H1097
- Sewer Name
- 18 LA MIRADA TRUNK, SECTS 1&2
- City
- LA MIRADA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- 20190107MDM_LA_MIRADA_TRUNK_SECTS_1_2
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 18 0562
- Downstream MH
- 18 0299
- Dir. of Survey
- Downstream
- Length Surveyed
- 10.6 ft.
- Total Length
- 10.6 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (4)

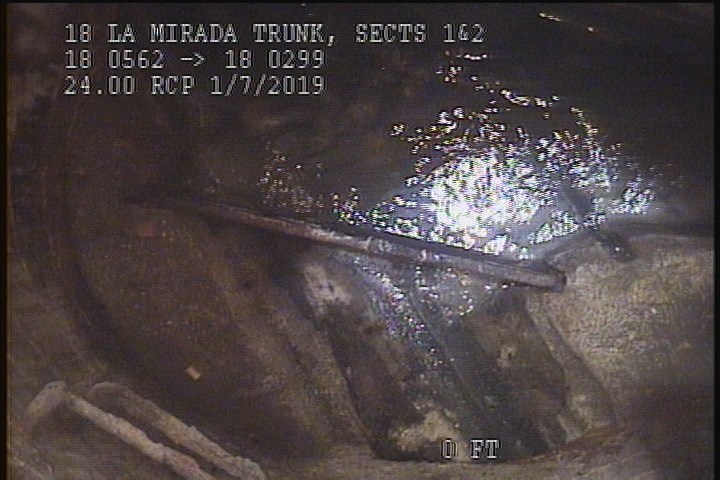

0 ft. - Water Level, 10 %of cross sectional area - NO FLOW STOPLOG IN PLACE

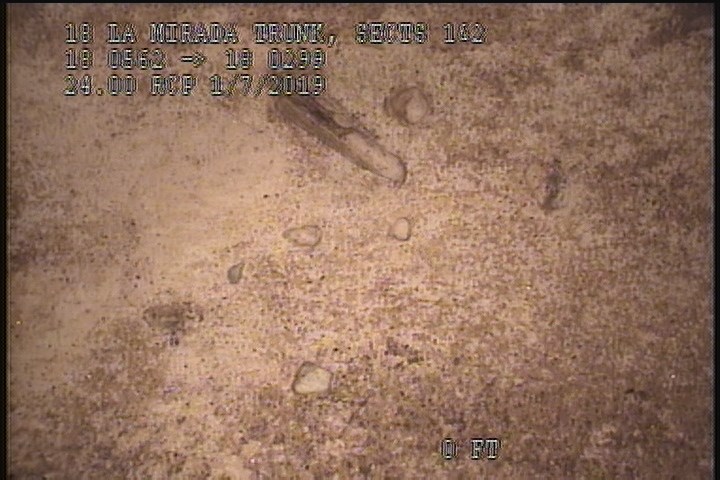

2 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG SPORATIC

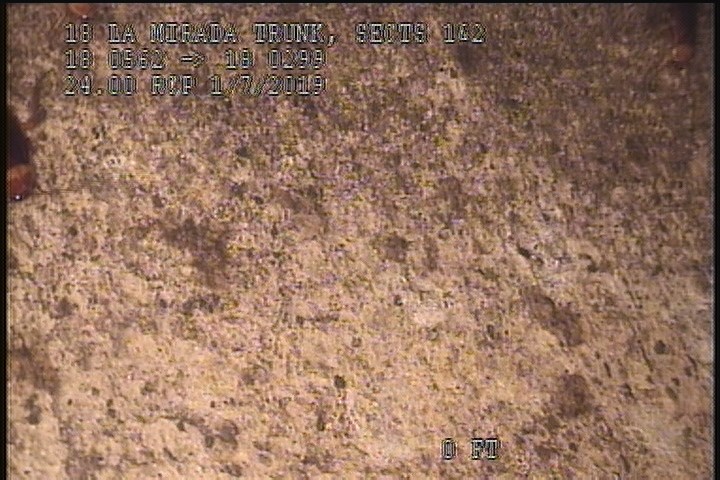

2 ft. - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start - FLAKING CONCRETE

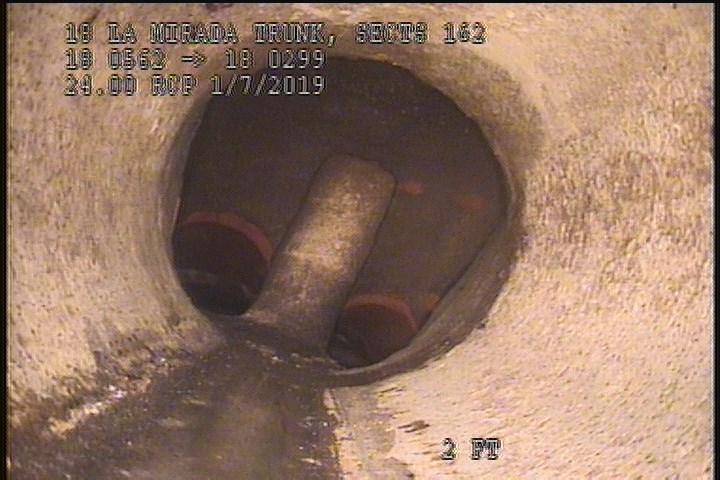

2 ft. - General Observation - 24" RCP
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 3:05AM |
| 2 | SAV | SEVERE AGG SPORATIC |
| 2 | SSS | FLAKING CONCRETE |
| 0 | MWL | NO FLOW STOPLOG IN PLACE |
| 10.6 | AMH | 3:15AM |
| 0 | MWM | — |
| 10 | SAV | SEVERE AGG SPORATIC |
| 2 | MGO | 24" RCP |
| 10 | SSS | FLAKING CONCRETE |
Properties (6)
- custom_field_three
- SEVERE AGG SPORATIC
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-01-07T02:26:50-08:00
- documentation
- MARTIN,REVELES,BRAR
- is_lateral_inspection
- false
