Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 4, 2019, 10:34 AM

  • 15 0849_15 0848_142019_033338.mp4

Date
01/04/2019
W/O
0740632
Weather
Dry
Operator/Surveyor
REVELES
Sewer ID
Z00594
PipeID
P12627
Time
2:34 AM
Certificate
U-115-06022630
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1095
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 3&2A
City
ARCADIA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
01
Purpose
Maintenance Related
Project
01042019VMR_ARCADIA_SIERRA_MADRE_TRUNK_SECTS_3_AND_2A
Material
NRCP
Shape
Circular
Height
9.300000190734863 in.
Upstream MH
15 0849
Downstream MH
15 0848
Dir. of Survey
Downstream
Length Surveyed
207.7 ft.
Total Length
207.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3121
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 15 0849 to 15 0848
MH: 15 0849MH: 15 0848downstream0 ft. AMH - Upstream Manhole, Survey Begins - 03:40 AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area1.1 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 4"74 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 2" - Open97.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 2" - 100% ROOTS152.1 ft. RTB - Roots Tap Barrell, at 01 o'clock, 15 %, within 8 inches of joint: NO153.6 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: NO, 2" - Open162.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 2"197.9 ft. RTC - Roots Tap Connection, at 12 o'clock, 15 %, within 8 inches of joint: NO205.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 2" - Open207.7 ft. AOC - Drop Connection, Survey Ends - 03:55 AM

Observation photos (2)

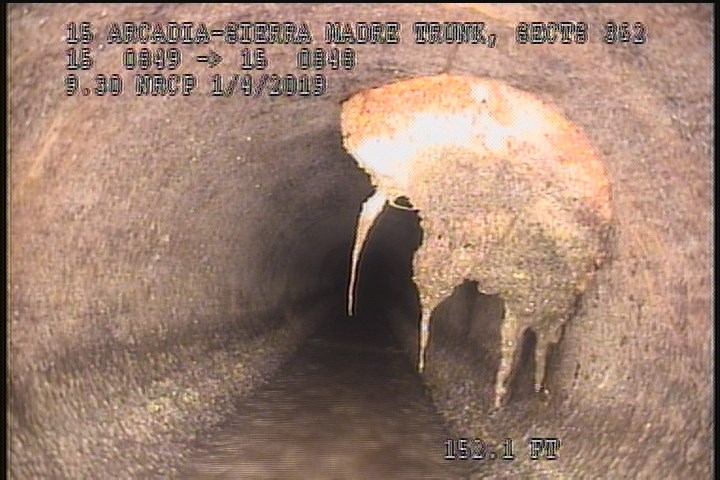

  • Roots Tap Barrell, at 01 o'clock, 15 %, within 8 inches of joint: NO

    152.1 ft. - Roots Tap Barrell, at 01 o'clock, 15 %, within 8 inches of joint: NO

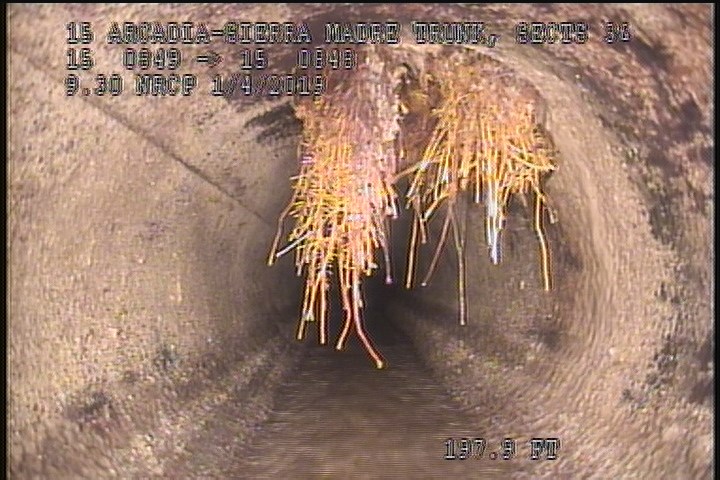

  • Roots Tap Connection, at 12 o'clock, 15 %, within 8 inches of joint: NO

    197.9 ft. - Roots Tap Connection, at 12 o'clock, 15 %, within 8 inches of joint: NO

All inspections of P12627Work order 0740632

Observations (12)

DistanceCodeObservation
197.9RTC—
74TFOpen
153.6TFOpen
1.1TFC—
97.1TF100% ROOTS
207.7AOC03:55 AM
162.9TFC—
0AMH03:40 AM
0MWM—
0MWL—
152.1RTB—
205.6TFOpen

Properties (6)

custom_field_two
4
customer
LACSD
datetime
2019-01-04T02:34:00-08:00
documentation
REVELES, OLIVER III, BRAR
is_lateral_inspection
false
lining
CIPP
