Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 4, 2019, 08:41 AM

  • 15 0852_15 0851_142019_014020.mp4

Date
01/04/2019
W/O
0740632
Weather
Dry
Operator/Surveyor
REVELES
Sewer ID
Z00594
PipeID
P12630
Time
12:41 AM
Certificate
U-115-06022630
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1095
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 3&2A
City
ARCADIA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
01
Purpose
Resurvey For Any Reason
Project
01042019VMR_ARCADIA_SIERRA_MADRE_TRUNK_SECTS_3_AND_2A
Material
NRCP
Shape
Circular
Height
9.300000190734863 in.
Upstream MH
15 0852
Downstream MH
15 0851
Dir. of Survey
Downstream
Length Surveyed
208.5 ft.
Total Length
208.5 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
2
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 15 0852 to 15 0851
MH: 15 0852MH: 15 0851downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01:46 AM0.3 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: NO, 8"40.3 ft. RFC - Roots Fine Connection, from 10 to 11 o'clock, within 8 inches of joint: NO - 5%40.3 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 2" - Blocked with roots79.7 ft. RTC - Roots Tap Connection, at 01 o'clock, 5 %, within 8 inches of joint: NO137.7 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 2" - Roots 100%208.5 ft. AMH - Downstream Manhole, Survey Ends - 02:08 AM

Observation photos (2)

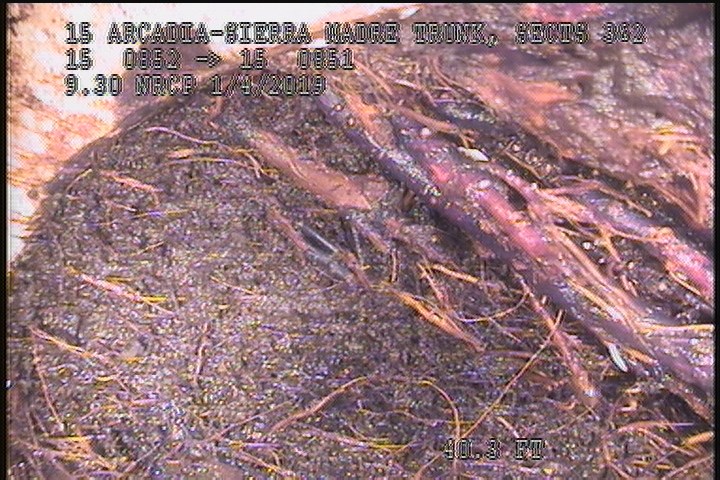

  • Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 2" - Blocked with roots

    40.3 ft. - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 2" - Blocked with roots

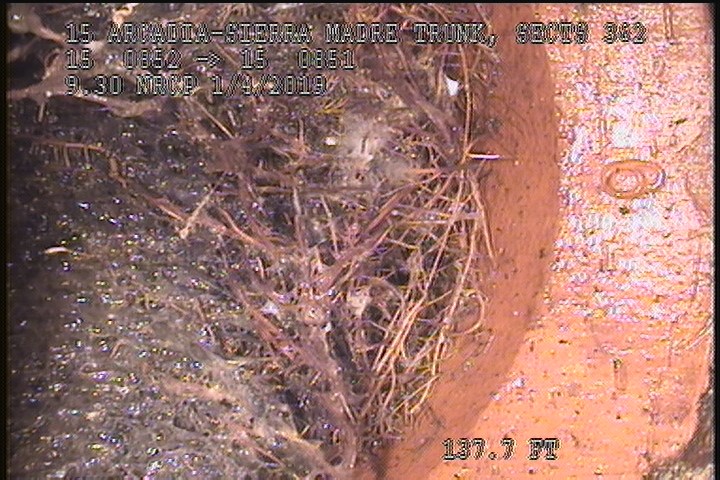

  • Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 2" - Roots 100%

    137.7 ft. - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 2" - Roots 100%

All inspections of P12630Work order 0740632

Observations (9)

DistanceCodeObservation
208.5AMH02:08 AM
137.7TFRoots 100%
40.3RFC5%
0MWM—
0.3TFA—
0MWL—
79.7RTC—
40.3TFBlocked with roots
0AMH01:46 AM

Properties (6)

custom_field_two
3
customer
LACSD
datetime
2019-01-04T00:41:38-08:00
documentation
REVELES, OLIVER III, BRAR
is_lateral_inspection
false
lining
PVCP
