Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 4, 2018, 11:15 AM

  • F 0160_F 0153 _12042018_033140.mp4

Date
12/04/2018
W/O
735504
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00043
PipeID
P10295
Time
3:15 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6246
Sewer Name
F JOINT OUTFALL F - UNIT 7A
City
NORWALK
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
37
Purpose
Routine Assessment
Project
WO_735504_TV02414_NOV2018
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
51 in.
Width
51 in.
Upstream MH
F 0160
Downstream MH
F 0153
Dir. of Survey
Downstream
Length Surveyed
33.1 ft.
Total Length
33.1 ft.
Structural Index
4
Structural Quick
5336
Structural Rating
33
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
33
Pipe schematic from manhole F 0160 to F 0153
MH: F 0160MH: F 0153downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - F 01600 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0.6 ft. MWM - Water Mark, 25 %of cross sectional area3.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3.1 ft. MGO - General Observation - MAG COAT20.3 ft. SRC - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Start33.1 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK33.1 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish33.1 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK33.1 ft. AMH - Downstream Manhole, Survey Ends - F 015333.1 ft. SRC - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

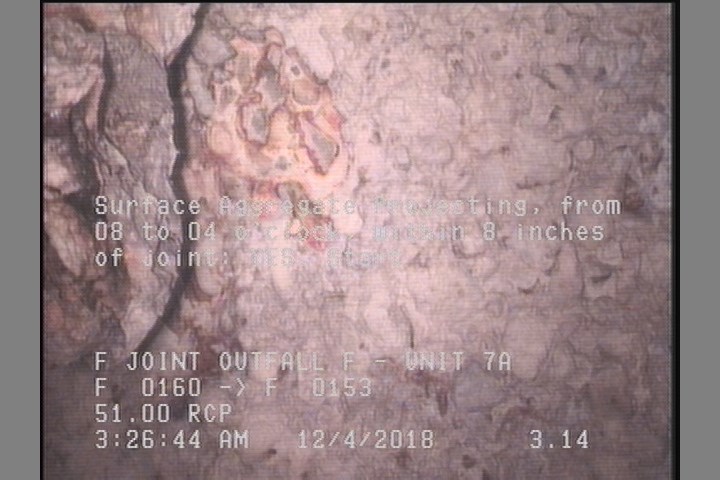

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

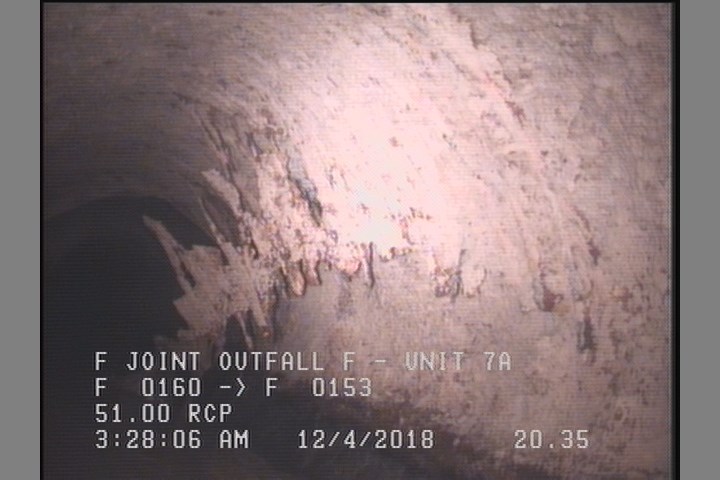

  • Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    20.3 ft. - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P10295Work order 735504

Observations (12)

DistanceCodeObservation
33.1MGOCONNECTION AT MH 3 O'CLOCK
33.1SAP—
20.3SRC—
0MWL—
0AMHF 0160
3.1SAP—
0MGOCONNECTION AT MH 9 O'CLOCK
3.1MGOMAG COAT
0.6MWM—
33.1MGOCONNECTION AT MH 9 O'CLOCK
33.1AMHF 0153
33.1SRC—

Properties (5)

additional_info
SC365475
custom_field_two
2
customer
LACSD
datetime
2018-12-04T03:15:19-08:00
year_laid
34088
