Wastewater/Activity/PacpInspection/1.0Dec 7, 2018, 10:39 AM
20 0513_20 0777_12072018_025824.mp4
- Date
- 12/07/2018
- W/O
- 735048
- Weather
- Light Rain
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00952
- PipeID
- P26244
- Time
- 2:39 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6268
- Sewer Name
- 20 TRUNK "A" RELIEF
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_735048_TV20038_NOV2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 20 0513
- Downstream MH
- 20 0777
- Dir. of Survey
- Downstream
- Length Surveyed
- 26 ft.
- Total Length
- 26 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2500
- O&M Rating
- 10
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (1)

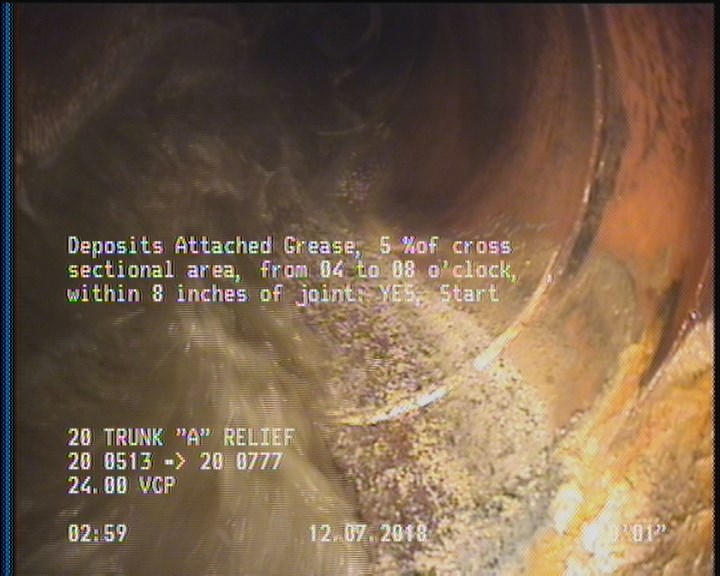

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 26 | AMH | 20 0777 |
| 0 | MWM | — |
| 26 | DAGS | — |
| 2 | DAGS | — |
| 0 | AMH | 20 0513 |
| 26 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
Properties (5)
- additional_info
- SC365384
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-12-07T02:39:24-08:00
- year_laid
- 40169
