Wastewater/Activity/PacpInspection/1.0Nov 27, 2018, 08:47 AM
C 0568_C 0567_11272018_005723.mp4
- Date
- 11/27/2018
- W/O
- 735004
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00362
- PipeID
- P04752
- Time
- 12:47 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6229
- Sewer Name
- C JOINT OUTFALL C - UNIT 4D
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- RFIR_WO_735004_TV03084_NOV2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- C 0568
- Downstream MH
- C 0567
- Dir. of Survey
- Downstream
- Length Surveyed
- 325.3 ft.
- Total Length
- 325.3 ft.
- Structural Index
- 3
- Structural Quick
- 413H
- Structural Rating
- 167
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 167
Observation photos (3)

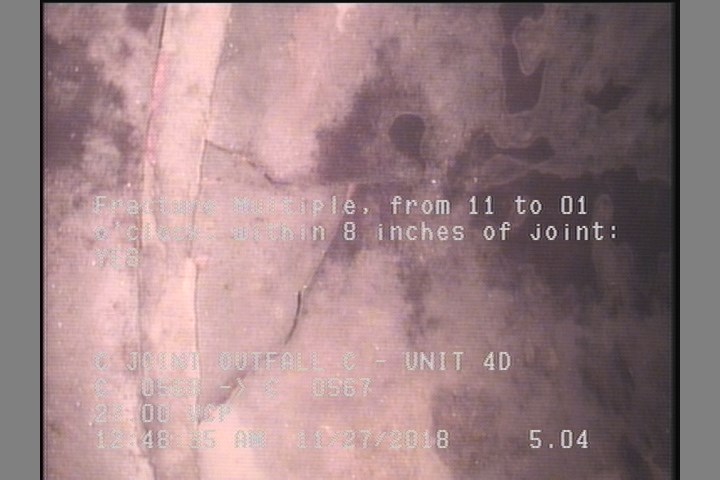

5 ft. - Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

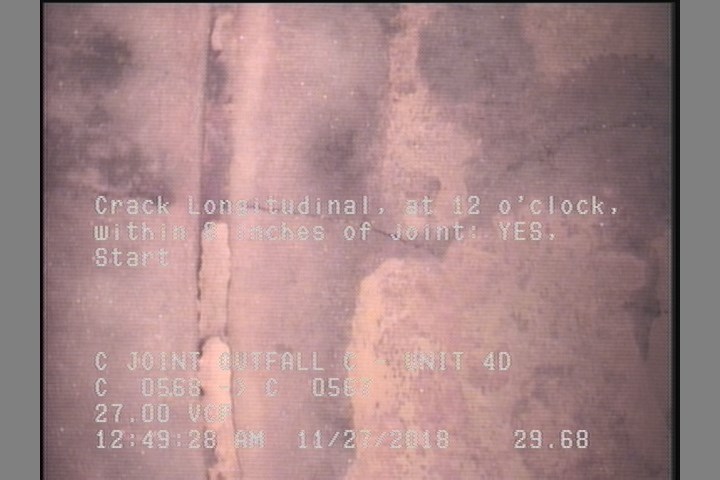

29.7 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

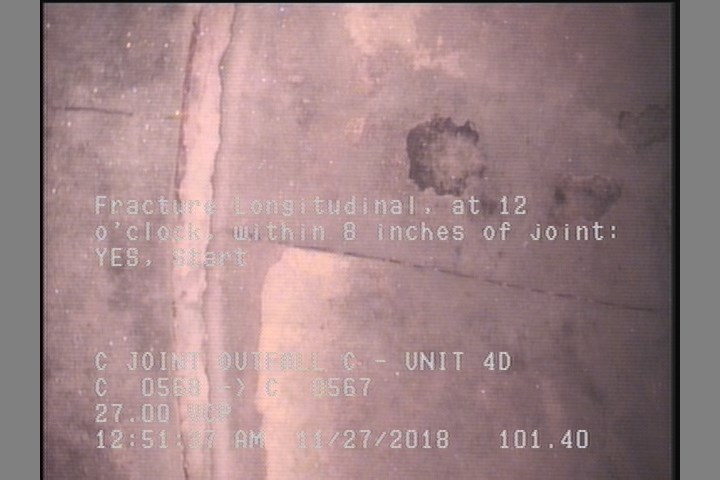

101.4 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 325.3 | AMH | C 0567 |
| 5 | FM | — |
| 325.3 | FL | — |
| 0 | AMH | C 0568 |
| 0 | MWL | — |
| 29.7 | CL | — |
| 101.4 | FL | — |
| 0 | MWM | — |
| 101.4 | CL | — |
Properties (4)
- additional_info
- SC365457
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-11-27T00:47:09-08:00
