Wastewater/Activity/PacpInspection/1.0Nov 27, 2018, 06:15 AM
C 0565_C 0564_11262018_223513.mp4
- Date
- 11/26/2018
- W/O
- 735004
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00362
- PipeID
- P04749
- Time
- 10:15 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6229
- Sewer Name
- C JOINT OUTFALL C - UNIT 4D
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- RFIR_WO_735004_TV03084_NOV2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- C 0565
- Downstream MH
- C 0564
- Dir. of Survey
- Downstream
- Length Surveyed
- 420.9 ft.
- Total Length
- 420.9 ft.
- Structural Index
- 3
- Structural Quick
- 3X00
- Structural Rating
- 369
- O&M Index
- 2
- O&M Quick
- 2O00
- O&M Rating
- 160
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 529
Observation photos (3)

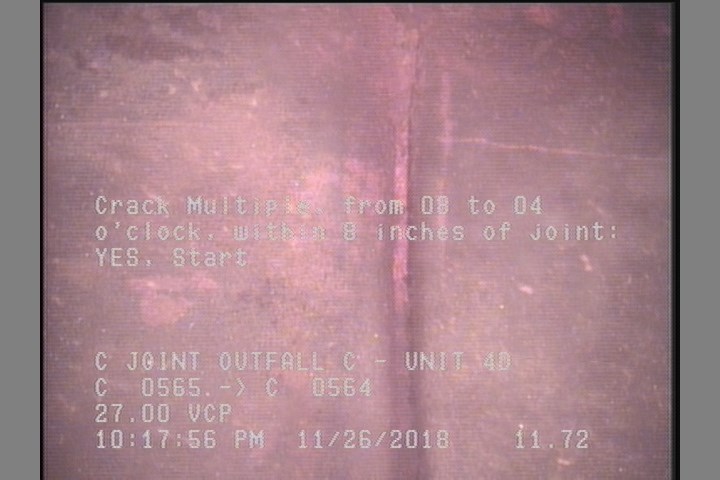

11.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

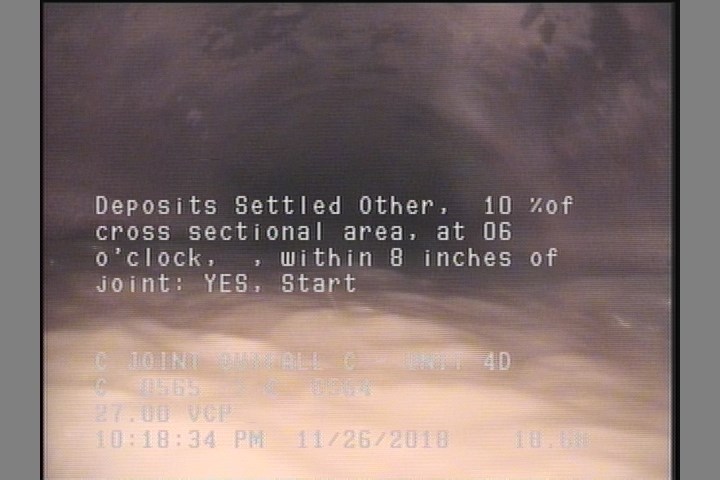

18.6 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

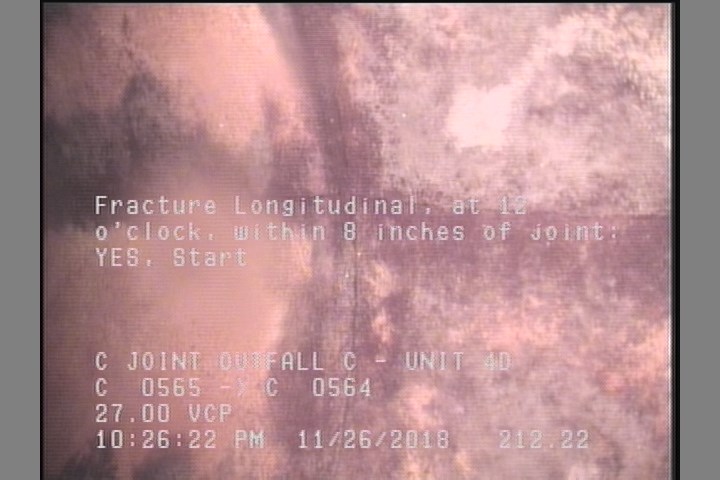

212.2 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 420.9 | DSZ | — |
| 420.9 | AMH | C 0564 |
| 0 | AMH | C 0565 |
| 212.2 | FL | — |
| 416 | FL | — |
| 18.6 | DSZ | — |
| 420.9 | CM | — |
| 11.7 | CM | — |
Properties (4)
- additional_info
- SC365457
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-11-26T22:15:40-08:00
