  • Section#19_15 0754_15 0753__1252019__I0105.mp4

Date
01/25/2019
W/O
0749484
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00593
PipeID
P12954
Time
3:25 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0105
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
City
ARCADIA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
01
Purpose
Capital Improvement Program Assesment
Project
20190118MDM_ARCADIA_SIERRA_MADRE_TRUNK_SECTS_2_5
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
15 0754
Downstream MH
15 0753
Dir. of Survey
Downstream
Length Surveyed
230.8 ft.
Total Length
230.8 ft.
Structural Index
3
Structural Quick
4H2H
Structural Rating
282
O&M Index
3
O&M Quick
4121
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
288
Pipe schematic from manhole 15 0754 to 15 0753
MH: 15 0754MH: 15 0753downstream0 ft. AMH - Upstream Manhole, Survey Begins - 3:25AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - ACTIVE MH CONN 9:000 ft. MWM - Water Mark, 50 %of cross sectional area2 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTACHED2 ft. MGO - General Observation - MAG COAT 20% START63.6 ft. SSS - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO - PEELING CONCRETE SEVERE AGG ATTACHED92.4 ft. SAM - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG PEELED AWAY120.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN147 ft. DSGV - Deposits Settled Gravel, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES190 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN217.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN230.2 ft. MGO - General Observation - MAG COAT 20% FINISH230.2 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG230.2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - PEELING CONCRETE SEVERE AGG ATTACHED230.8 ft. AMH - Downstream Manhole, Survey Ends - 3:50AM

Observation photos (5)

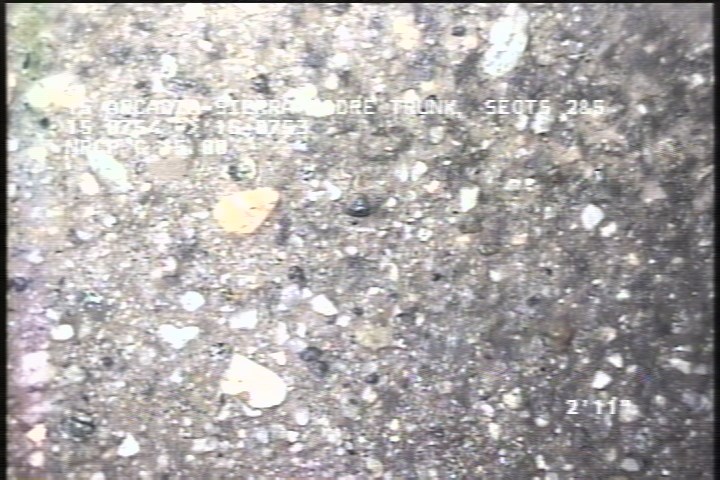

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

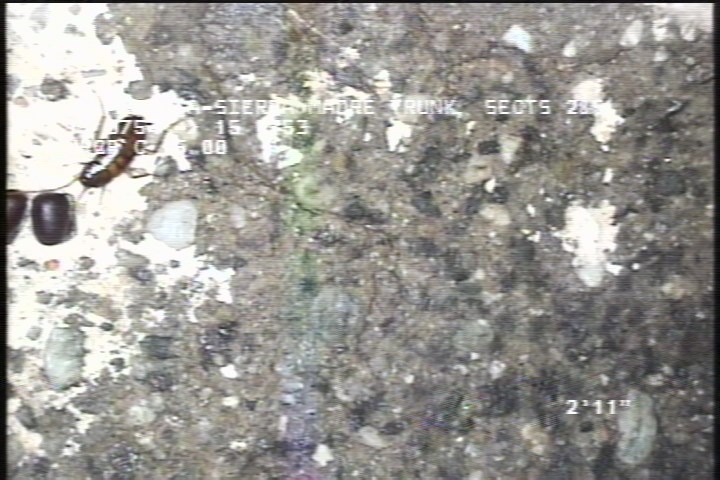

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTACHED

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTACHED

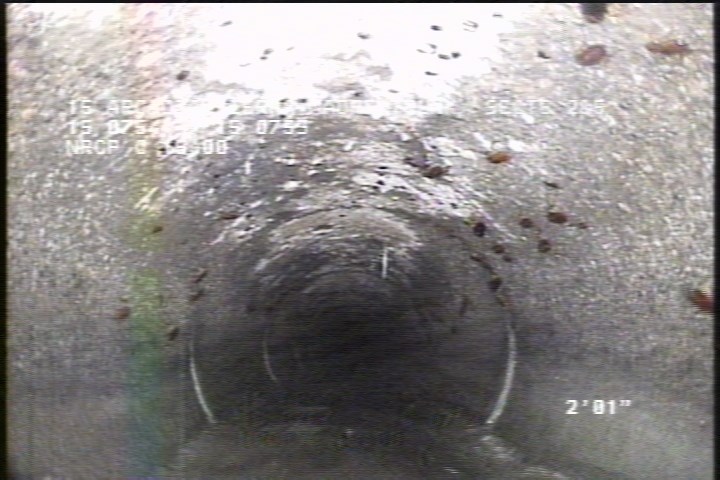

  • General Observation - MAG COAT 20% START

    2 ft. - General Observation - MAG COAT 20% START

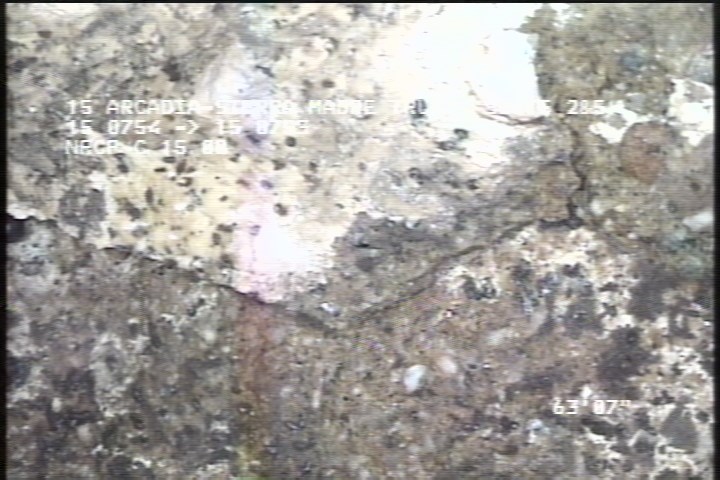

  • Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO - PEELING CONCRETE SEVERE AGG ATTACHED

    63.6 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO - PEELING CONCRETE SEVERE AGG ATTACHED

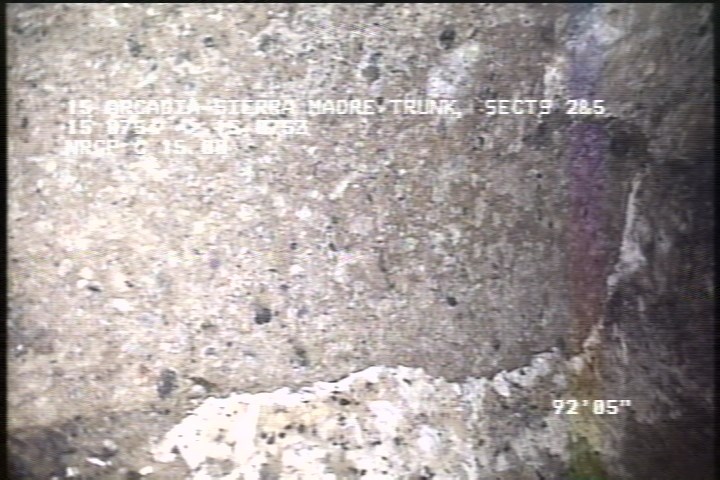

  • Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG PEELED AWAY

    92.4 ft. - Surface Aggregate Missing, from 10 to 02 o'clock, within 8 inches of joint: NO - SEVERE AGG PEELED AWAY

All inspections of P12954Work order 0749484

Observations (17)

DistanceCodeObservation
190TFOPEN
230.2MGOMAG COAT 20% FINISH
0AMH3:25AM
92.4SAMSEVERE AGG PEELED AWAY
63.6SSSPEELING CONCRETE SEVERE AGG ATTACHED
2SAMSEVERE AGG
230.2SAMSEVERE AGG
0MWL—
0MGOACTIVE MH CONN 9:00
217.1TFOPEN
147DSGV—
2SSSPEELING CONCRETE SEVERE AGG ATTACHED
2MGOMAG COAT 20% START
0MWM—
120.7TFOPEN
230.8AMH3:50AM
230.2SSSPEELING CONCRETE SEVERE AGG ATTACHED

Properties (4)

custom_field_three
PEELING CONCRETE SEVERE AGG ATTACHED
custom_field_two
2
customer
LACSD
datetime
2019-01-25T03:25:37-08:00
