Wastewater/Activity/PacpInspection/1.0Jan 24, 2019, 05:55 PM
15 0781_15 1168_1242019_100657.mp4
- Date
- 01/24/2019
- W/O
- 0749483
- Weather
- Damp
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00593
- PipeID
- P26114
- Time
- 9:55 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7903
- Sewer Name
- 15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
- City
- SIERRA MADRE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- 20190118DF_ARCADIA_SIERRA_MADRE_TR_SECTS_2_5
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Upstream MH
- 15 0781
- Downstream MH
- 15 1168
- Dir. of Survey
- Downstream
- Length Surveyed
- 48.2 ft.
- Total Length
- 48.2 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

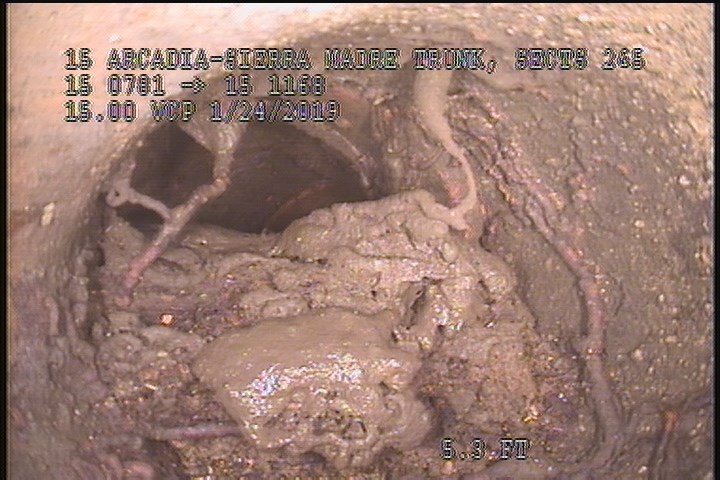

5.3 ft. - Tap Factory Made Defective, at 10 o'clock, -, within 8 inches of joint: YES, 4" - Open/75% GREASE-LATERAL

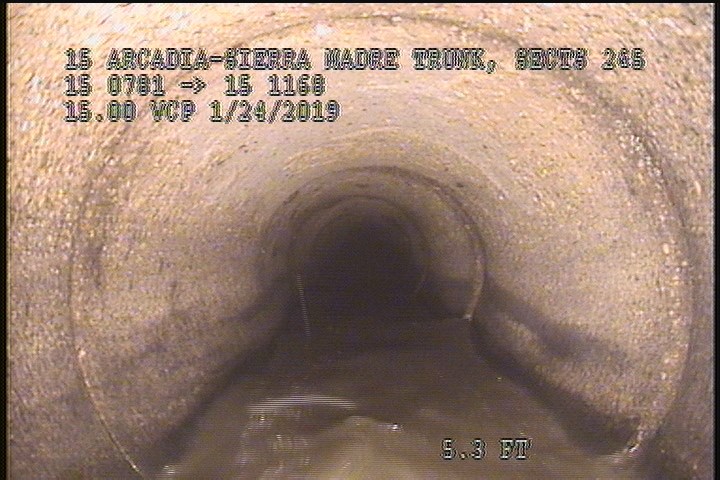

5.3 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 48.2 | AMH | 10:15 AM |
| 48.2 | MGO | GREASE THROUGHOUT THE REACH (5%) |
| 5.3 | TFD | Open/75% GREASE-LATERAL |
| 5.3 | SSS | — |
| 47 | SSS | — |
| 0 | AMH | 10:02 AM |
Properties (4)
- additional_info
- TITLE SCREEN DISPLAYS THE WRONG PIPE MATERIAL. THE CORRECT MATERIAL IS NRCP NOT VCP
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-01-24T09:55:24-08:00
