Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 18, 2019, 07:28 PM

  • 15 0821_15 0820_1182019_113131.mp4

Date
01/18/2019
W/O
0749485
Weather
Damp
Operator/Surveyor
FRANKLIN
Sewer ID
Z00593
PipeID
P13022
Time
11:28 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7900
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
City
SIERRA MADRE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
01
Purpose
Routine Assessment
Project
20190118DF_ARCADIA_SIERRA_MADRE_TR_SECTS_2_5
Material
NRCP
Shape
Circular
Height
10 in.
Upstream MH
15 0821
Downstream MH
15 0820
Dir. of Survey
Downstream
Length Surveyed
309.6 ft.
Total Length
309.6 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 15 0821 to 15 0820
MH: 15 0821MH: 15 0820downstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 11:30 AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active2 ft. LFW - Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES, Start7.5 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open23.7 ft. MGP - General Photograph112 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4" - Open133.5 ft. MGP - General Photograph165.8 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4" - Open229.2 ft. MGP - General Photograph243.9 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: YES, 4" - Open/10% GREASE/LATERAL258 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4" - Open260.9 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open307.8 ft. LFW - Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish309.6 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)309.6 ft. AMH - Downstream Manhole, Survey Ends - 11:56 AM

Observation photos (5)

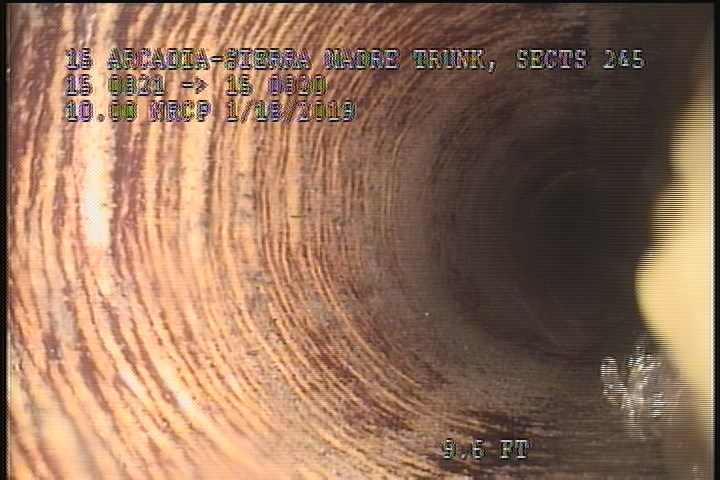

  • Water Mark, 15 %of cross sectional area

    0 ft. - Water Mark, 15 %of cross sectional area

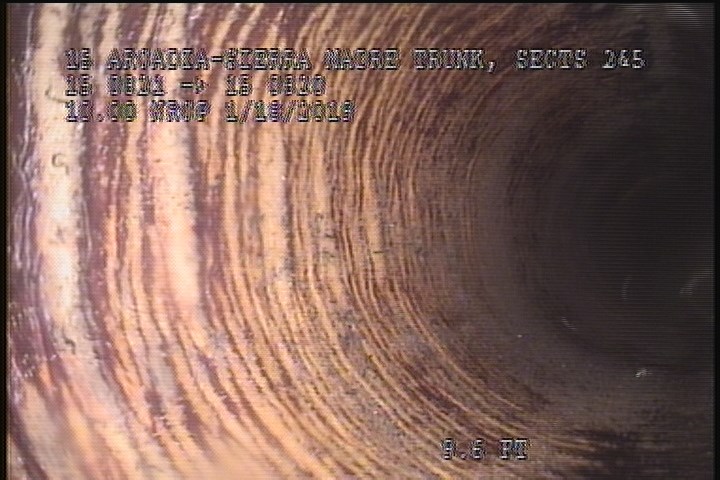

  • Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

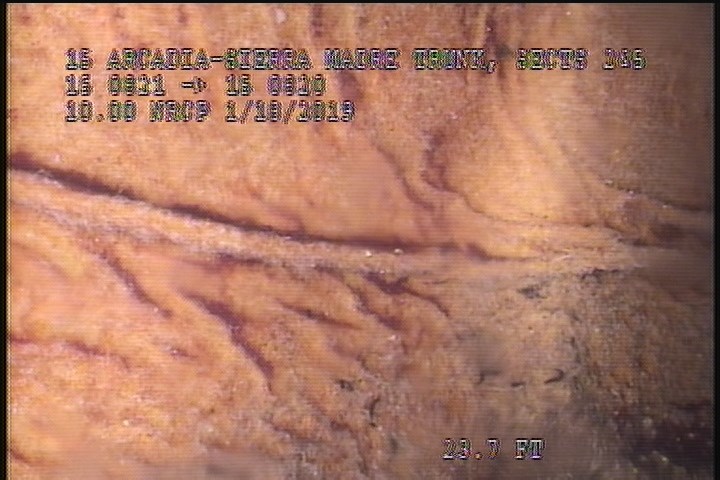

  • General Photograph

    23.7 ft. - General Photograph

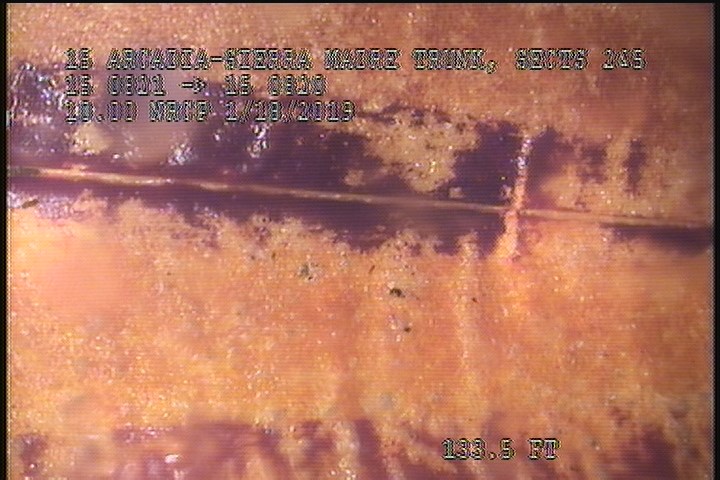

  • General Photograph

    133.5 ft. - General Photograph

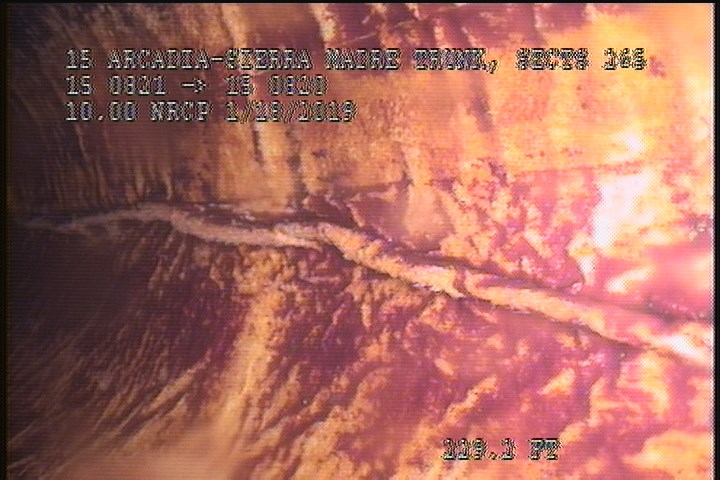

  • General Photograph

    229.2 ft. - General Photograph

All inspections of P13022Work order 0749485

Observations (17)

DistanceCodeObservation
0MWM—
229.2MGP—
23.7MGP—
133.5MGP—
165.8TBOpen
309.6MGOGREASE THROUGHOUT THE REACH (5%)
7.5TBOpen
0AMH11:30 AM
0MWL—
243.9TBOpen/10% GREASE/LATERAL
0MGOConn. @ Mh, 9 O' Clock. Active
112TBOpen
260.9TBOpen
307.8LFW—
2LFW—
258TBOpen
309.6AMH11:56 AM

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2019-01-18T11:28:59-08:00
