Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 18, 2019, 05:57 PM

  • 15 0823_15 0822_1182019_100054.mp4

Date
01/18/2019
W/O
0749485
Weather
Damp
Operator/Surveyor
FRANKLIN
Sewer ID
Z00593
PipeID
P13024
Time
9:57 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7900
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
City
SIERRA MADRE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
01
Purpose
Routine Assessment
Project
20190118DF_ARCADIA_SIERRA_MADRE_TR_SECTS_2_5
Material
NRCP
Shape
Circular
Height
9.300000190734863 in.
Upstream MH
15 0823
Downstream MH
15 0822
Dir. of Survey
Downstream
Length Surveyed
326.5 ft.
Total Length
326.5 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 15 0823 to 15 0822
MH: 15 0823MH: 15 0822downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 9:59 AM0 ft. MWM - Water Mark, 15 %of cross sectional area2 ft. LFW - Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES, Start8 ft. MGP - General Photograph41.3 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open83.3 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open/30% GREASE/ LATERAL137.2 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: YES, 4"160.8 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open223.9 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open/50% GREASE/LATERAL261.5 ft. TBA - Tap Break-In Active, at 09 o'clock, -, within 8 inches of joint: YES, 4"286.2 ft. MGP - General Photograph294.4 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open/30% GREASE/LATERAL294.8 ft. MGP - General Photograph324.7 ft. MGO - General Observation - Grease Throughout The Reach (5%)324.7 ft. LFW - Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish326.5 ft. AMH - Downstream Manhole, Survey Ends - 10:27 AM

Observation photos (6)

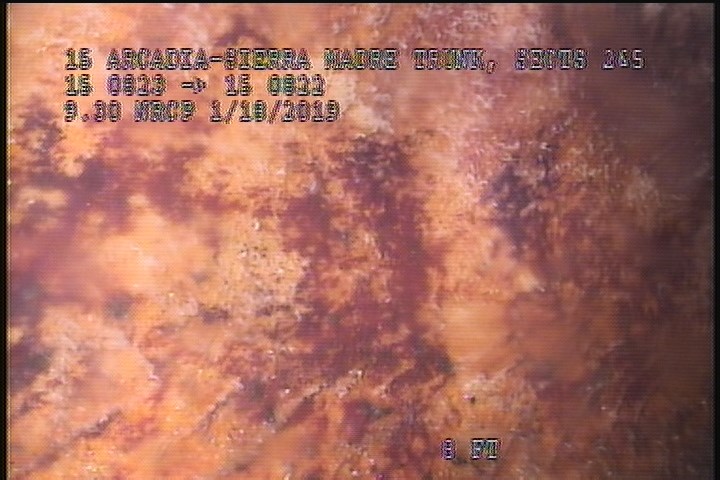

  • Water Level, 10 %of cross sectional area

    0 ft. - Water Level, 10 %of cross sectional area

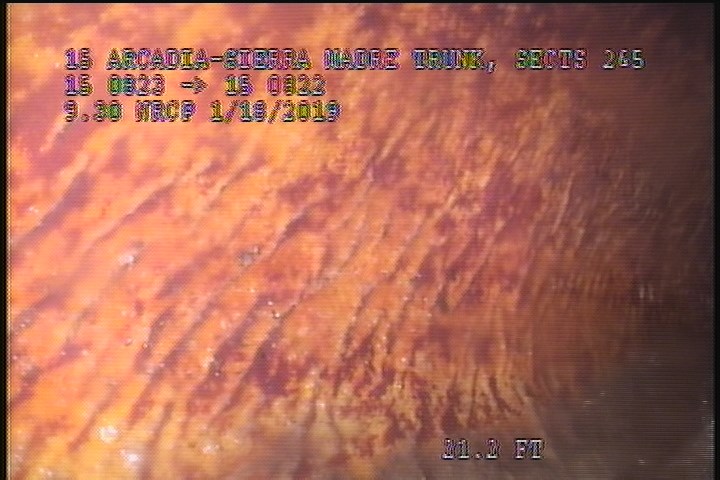

  • Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

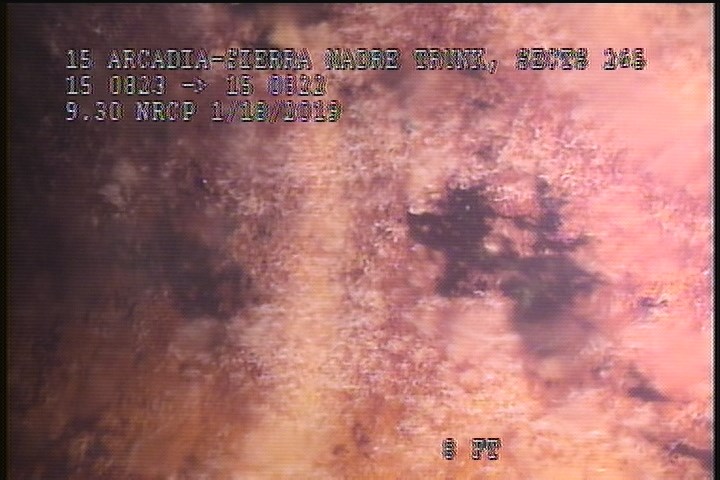

  • General Photograph

    8 ft. - General Photograph

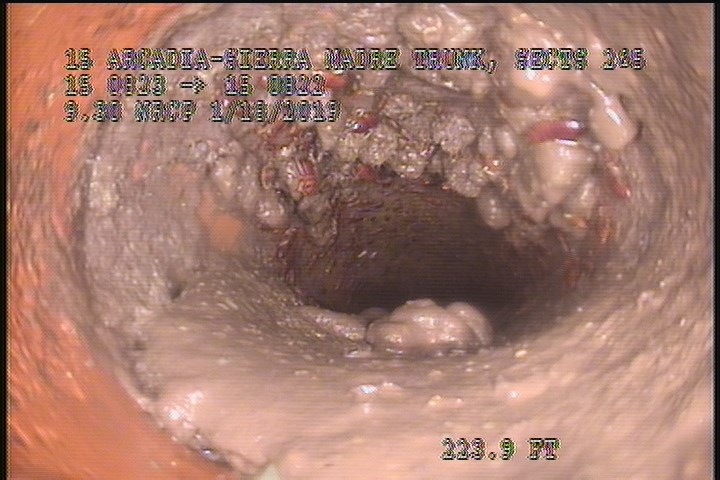

  • Tap Break-In, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open/50% GREASE/LATERAL

    223.9 ft. - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open/50% GREASE/LATERAL

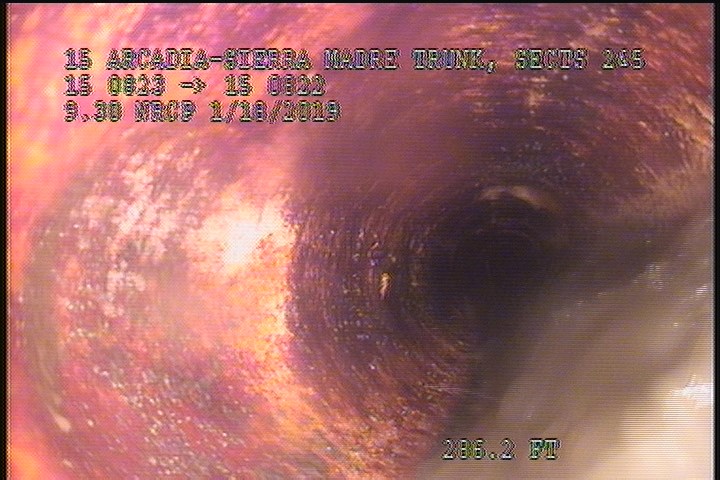

  • General Photograph

    286.2 ft. - General Photograph

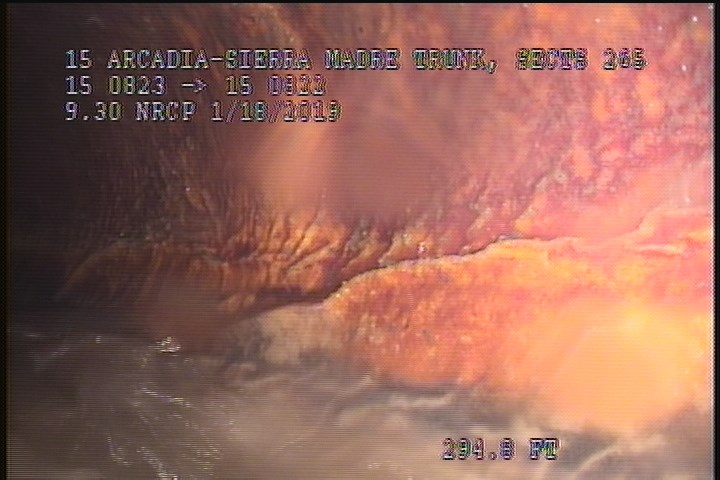

  • General Photograph

    294.8 ft. - General Photograph

All inspections of P13024Work order 0749485

Observations (17)

DistanceCodeObservation
160.8TBOpen
326.5AMH10:27 AM
223.9TBOpen/50% GREASE/LATERAL
0MWL—
261.5TBA—
0AMH9:59 AM
294.4TBOpen/30% GREASE/LATERAL
2LFW—
41.3TBOpen
324.7MGOGrease Throughout The Reach (5%)
83.3TBOpen/30% GREASE/ LATERAL
8MGP—
286.2MGP—
324.7LFW—
137.2TBA—
294.8MGP—
0MWM—

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2019-01-18T09:57:10-08:00
lining
CIPP
year_laid
20020918
