Wastewater/Activity/PacpInspection/1.0Jan 17, 2019, 06:12 PM

  • 15 0856_15 0855_1172019_103245.mp4

Date
01/17/2019
W/O
0749485
Weather
Light Rain
Operator/Surveyor
IGNACIO
Sewer ID
Z00594
PipeID
P12634
Time
10:12 AM
Certificate
PENDING
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7899
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 3&2A
City
ARCADIA-SIERRA MADRE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
01
Purpose
Routine Assessment
Project
20190117MI_ARCADIA_SIERRA_MADRE_TRUNK_SEC_3_2A
Material
NRCP
Shape
Circular
Height
10 in.
Upstream MH
15 0856
Downstream MH
15 0855
Dir. of Survey
Downstream
Length Surveyed
352.9 ft.
Total Length
352.9 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 15 0856 to 15 0855
MH: 15 0856MH: 15 0855downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH, 9 OCLOCK, ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 10:30 AM0 ft. MWL - Water Level, 20 %of cross sectional area29.6 ft. MGO - General Observation - PVCP LINER72.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"76 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"351 ft. LFB - Lining Failure Blistered, at 12 o'clock, within 8 inches of joint: NO352.9 ft. AMH - Downstream Manhole, Survey Ends - 10:55AM

Observation photos (2)

  • General Observation - PVCP LINER

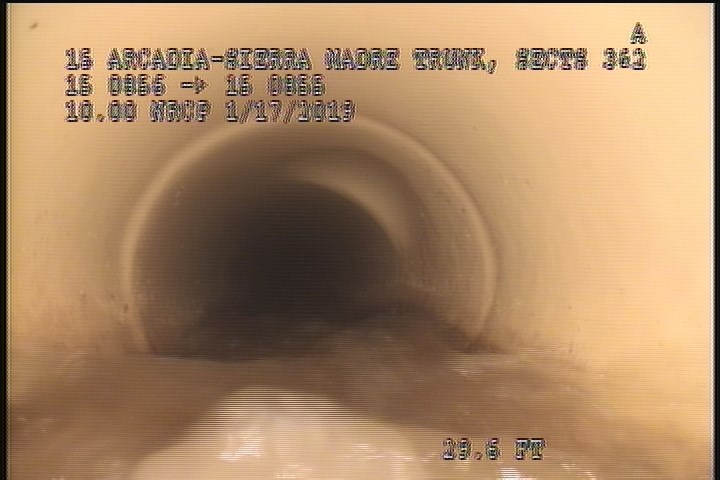

    29.6 ft. - General Observation - PVCP LINER

  • Lining Failure Blistered, at 12 o'clock, within 8 inches of joint: NO

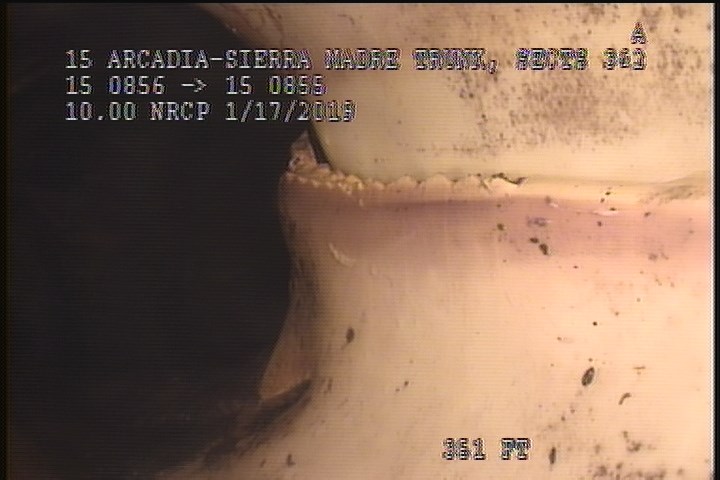

    351 ft. - Lining Failure Blistered, at 12 o'clock, within 8 inches of joint: NO

All inspections of P12634Work order 0749485

Observations (9)

DistanceCodeObservation
0MWM—
76TFA—
352.9AMH10:55AM
0MGOCONNECTION AT MH, 9 OCLOCK, ACTIVE
0AMH10:30 AM
29.6MGOPVCP LINER
0MWL—
351LFB—
72.8TFA—

Properties (4)

custom_field_two
4
customer
LACSD
datetime
2019-01-17T10:12:09-08:00
lining
PVCP-Folded/Reformed
