Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 25, 2019, 08:56 AM

  • Section#1_B 0412_B 0411__1252019__I0104R.mp4

Date
01/25/2019
W/O
0750457
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00092
PipeID
P08924
Time
12:56 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0104R
Sewer Name
B JOINT OUTFALL B - UNIT 5B
City
ARCADIA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
03
Purpose
Maintenance Related
Project
201825MDM_JOINT_OUTFALL_B_UNIT_5B
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
B 0412
Downstream MH
B 0411
Dir. of Survey
Downstream
Length Surveyed
191.8 ft.
Total Length
191.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
5235
O&M Rating
25
Overall Index
4
Overall Quick
—
Overall Rating
25
Pipe schematic from manhole B 0412 to B 0411
MH: B 0412MH: B 0411downstream0 ft. AMH - Upstream Manhole, Survey Begins - 12:50AM0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area118.6 ft. RMJ - Roots Medium Joint, from 11 to 04 o'clock, 5 %, within 8 inches of joint: YESR126.7 ft. RMJ - Roots Medium Joint, from 10 to 03 o'clock, 5 %, within 8 inches of joint: YESR158.9 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 40 %, within 8 inches of joint: YESR159 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 40 %, within 8 inches of joint: YESR187.8 ft. RMJ - Roots Medium Joint, from 12 to 03 o'clock, 25 %, within 8 inches of joint: YESR191.3 ft. RBB - Roots Ball Barrell, from 08 to 04 o'clock, 80 %, within 8 inches of joint: YES191.5 ft. RBB - Roots Ball Barrell, from 08 to 04 o'clock, 80 %, within 8 inches of joint: YES191.8 ft. MSA - Survey Abandoned - 80% ROOT BALL

Observation photos (5)

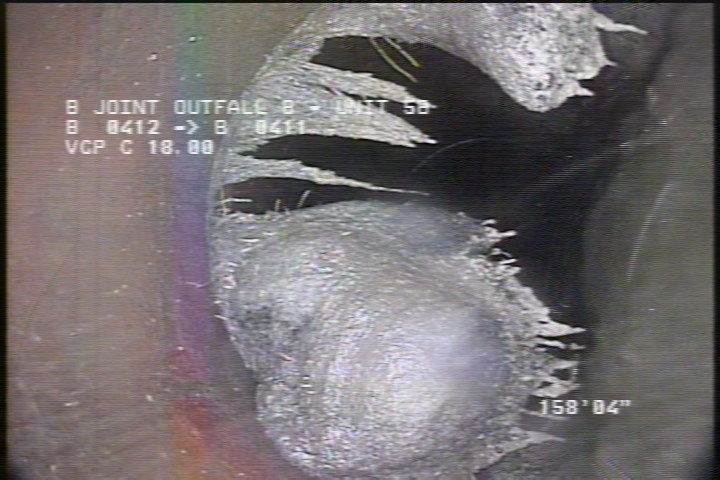

  • Roots Medium Joint, from 08 to 04 o'clock, 40 %, within 8 inches of joint: YESR

    158.9 ft. - Roots Medium Joint, from 08 to 04 o'clock, 40 %, within 8 inches of joint: YESR

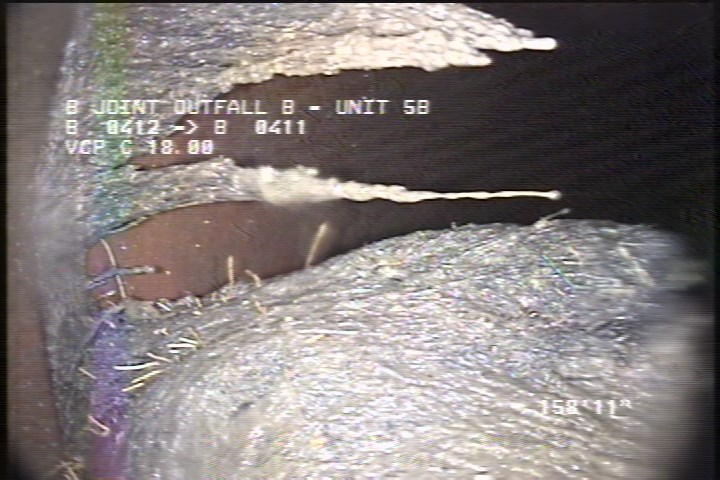

  • Roots Medium Joint, from 08 to 04 o'clock, 40 %, within 8 inches of joint: YESR

    159 ft. - Roots Medium Joint, from 08 to 04 o'clock, 40 %, within 8 inches of joint: YESR

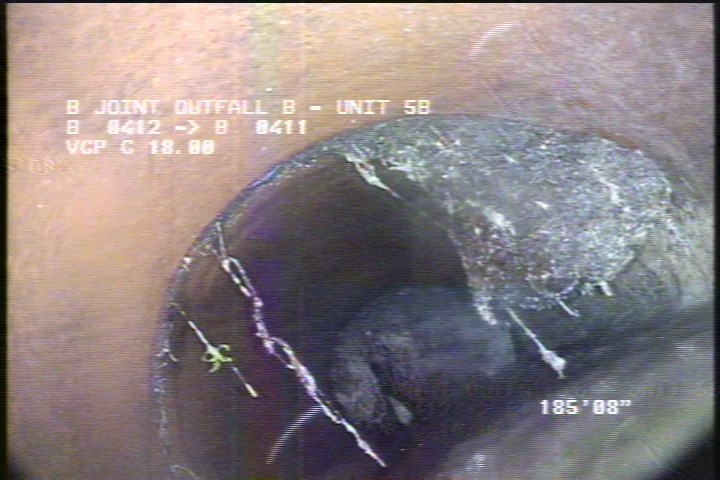

  • Roots Medium Joint, from 12 to 03 o'clock, 25 %, within 8 inches of joint: YESR

    187.8 ft. - Roots Medium Joint, from 12 to 03 o'clock, 25 %, within 8 inches of joint: YESR

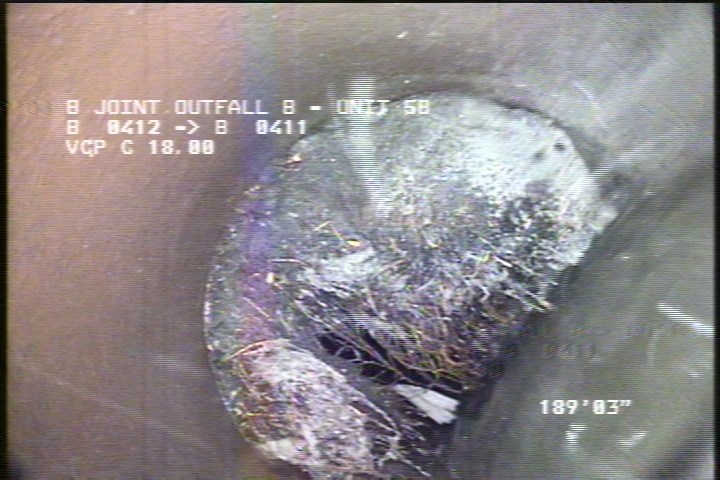

  • Roots Ball Barrell, from 08 to 04 o'clock, 80 %, within 8 inches of joint: YES

    191.3 ft. - Roots Ball Barrell, from 08 to 04 o'clock, 80 %, within 8 inches of joint: YES

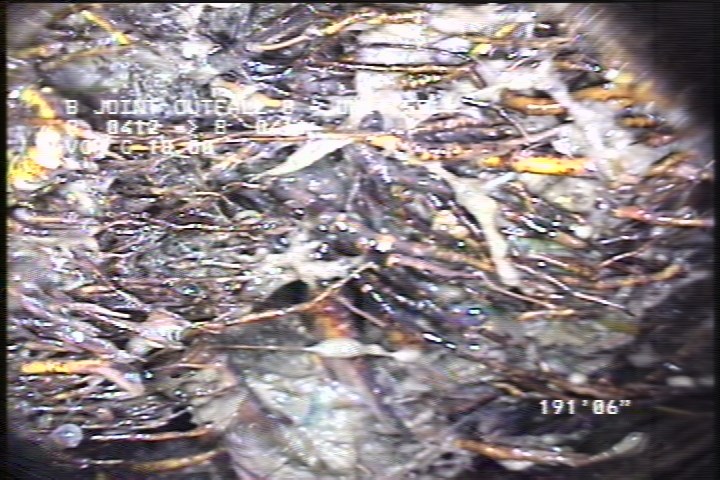

  • Roots Ball Barrell, from 08 to 04 o'clock, 80 %, within 8 inches of joint: YES

    191.5 ft. - Roots Ball Barrell, from 08 to 04 o'clock, 80 %, within 8 inches of joint: YES

All inspections of P08924Work order 0750457

Observations (11)

DistanceCodeObservation
126.7RMJ—
0AMH12:50AM
159RMJ—
0MWL—
191.5RBB—
158.9RMJ—
118.6RMJ—
191.3RBB—
0MWM—
191.8MSA80% ROOT BALL
187.8RMJ—

Properties (3)

additional_info
POST ROOT EVALUATION ONLY
customer
LACSD
datetime
2019-01-25T00:56:18-08:00
