Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 11, 2019, 09:24 AM

  • Section#1_15 0545_15 0544__1112019__I0089R.mp4

Date
01/11/2019
W/O
0749498
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00629
PipeID
P12474
Time
1:24 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0089R
Sewer Name
15 SANTA ANITA OUTFALL TRUNK
City
TEMPLE CITY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
11
Purpose
Maintenance Related
Project
20190111MDM_SANTA_ANITA_OUTFALL_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
15 0545
Downstream MH
15 0544
Dir. of Survey
Downstream
Length Surveyed
346.2 ft.
Total Length
346.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
3111
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 15 0545 to 15 0544
MH: 15 0545MH: 15 0544downstream0 ft. AMH - Upstream Manhole, Survey Begins - 1:35AM0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area12.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE101.9 ft. RFL - Roots Fine Lateral, at 12 o'clock - 1%103.3 ft. TBD - Tap Break-In Defective, at 12 o'clock, -, , within 8 inches of joint: YES, 6", 6" - ACTIVE-50% ROOTS346.2 ft. AMH - Downstream Manhole, Survey Ends - 1:55AM

Observation photos (2)

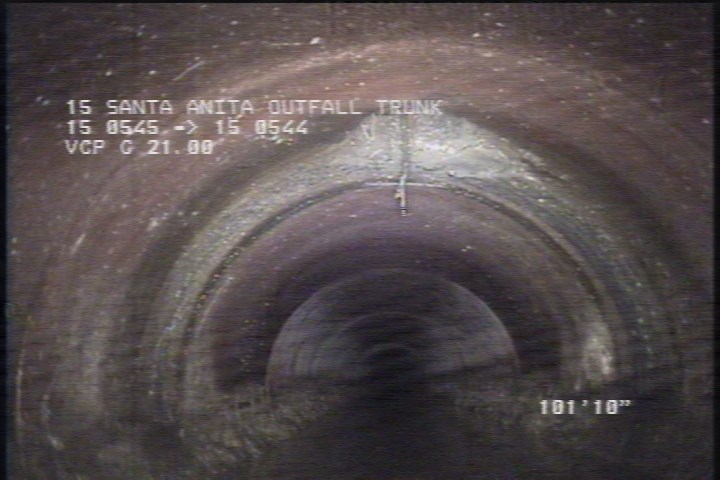

  • Roots Fine Lateral, at 12 o'clock - 1%

    101.9 ft. - Roots Fine Lateral, at 12 o'clock - 1%

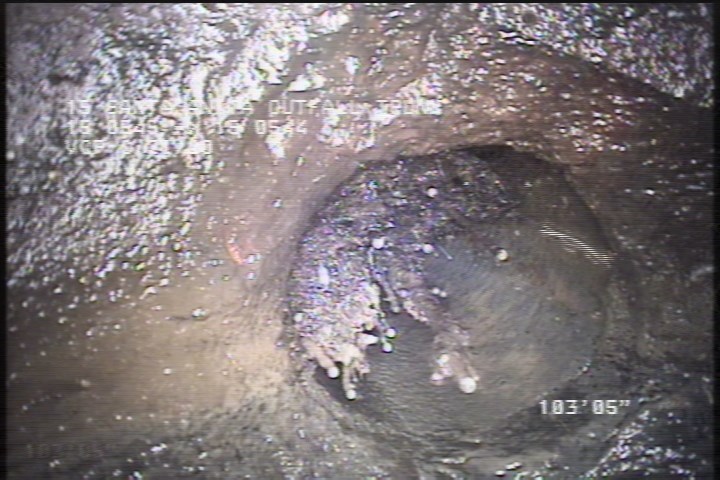

  • Tap Break-In Defective, at 12 o'clock, -, , within 8 inches of joint: YES, 6", 6" - ACTIVE-50% ROOTS

    103.3 ft. - Tap Break-In Defective, at 12 o'clock, -, , within 8 inches of joint: YES, 6", 6" - ACTIVE-50% ROOTS

All inspections of P12474Work order 0749498

Observations (7)

DistanceCodeObservation
0AMH1:35AM
0MWM—
346.2AMH1:55AM
103.3TBDACTIVE-50% ROOTS
101.9RFL1%
12.9TFACTIVE
0MWL—

Properties (5)

additional_info
ROOT EVALUATION ONLY
customer
LACSD
datetime
2019-01-11T01:24:13-08:00
documentation
MARTIN,REVELES,BRAR
is_lateral_inspection
false
