Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 16, 2019, 09:26 AM

  • Section#14_15 0803_15 08O2__1162019__I0093.mp4

Date
01/16/2019
W/O
0749482
Weather
Light Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00593
PipeID
P13004
Time
1:26 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0093
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
City
SIERRA MADRE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
01
Purpose
Routine Assessment
Project
20190111MDM_ARCADIA_SIERRA_MADRE_TRUNK_SECTS_2_5
Material
NRCP
Shape
Circular
Height
11.399999618530273 in.
Upstream MH
15 0803
Downstream MH
15 08O2
Dir. of Survey
Downstream
Length Surveyed
374.2 ft.
Total Length
374.2 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
3121
O&M Rating
6
Overall Index
2
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole 15 0803 to 15 08O2
MH: 15 0803MH: 15 08O2downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:45AM0 ft. MWM - Water Mark, 30 %of cross sectional area11.3 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN14.7 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - ACTIVE40.2 ft. MGO - General Observation - 11.4" NRCP-CIPP LINER99.5 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN102.3 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN156.5 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 6" - OPEN193 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN216.9 ft. RFL - Roots Fine Lateral, at 10 o'clock - 2% ROOTS216.9 ft. TBD - Tap Break-In Defective, at 10 o'clock, -, , within 8 inches of joint: NO, 6" - OOPEN -20% ROOTS373.9 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - ROCKS SLUDGE374.2 ft. AMH - Downstream Manhole, Survey Ends - 2:10AM

Observation photos (2)

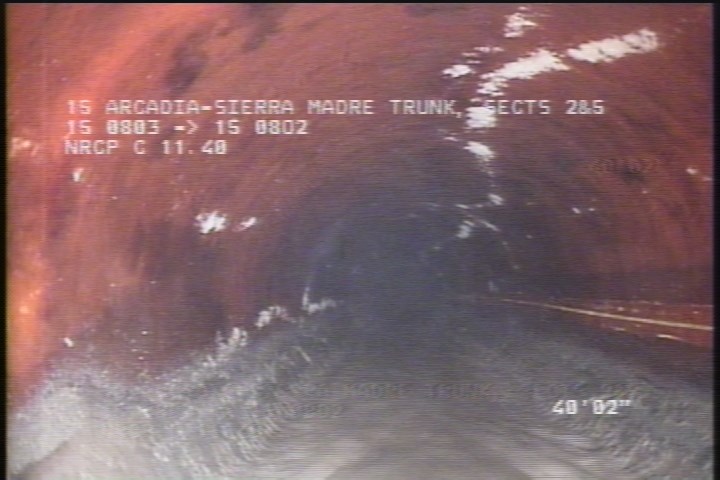

  • General Observation - 11.4" NRCP-CIPP LINER

    40.2 ft. - General Observation - 11.4" NRCP-CIPP LINER

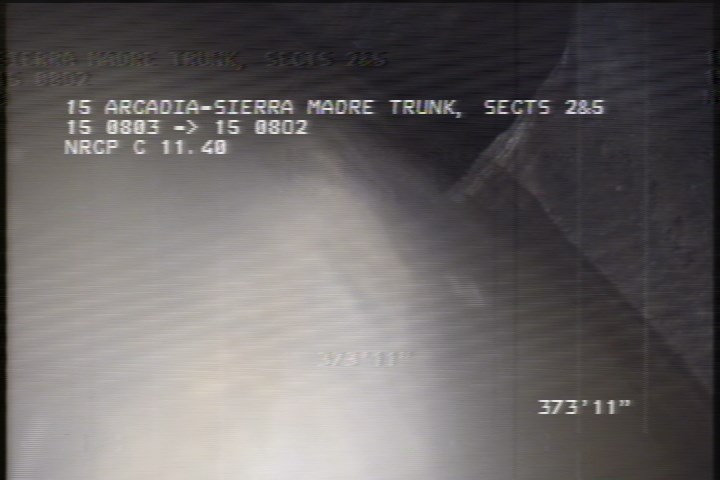

  • Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - ROCKS SLUDGE

    373.9 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: NO - ROCKS SLUDGE

All inspections of P13004Work order 0749482

Observations (14)

DistanceCodeObservation
216.9RFL2% ROOTS
14.7TBACTIVE
156.5TBOPEN
373.9DSZROCKS SLUDGE
102.3TBOPEN
40.2MGO11.4" NRCP-CIPP LINER
0MWL—
0AMH1:45AM
11.3TBOPEN
193TFOPEN
216.9TBDOOPEN -20% ROOTS
0MWM—
374.2AMH2:10AM
99.5TBOPEN

Properties (6)

custom_field_three
LINER GOOD COND
custom_field_two
4
customer
LACSD
datetime
2019-01-16T01:26:04-08:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
