Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 15, 2019, 10:01 AM

  • Section#11_15 0805_15 0804__1152019__I0093.mp4

Date
01/15/2019
W/O
0749482
Weather
Light Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00593
PipeID
P13006
Time
2:01 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0092
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
City
SIERRA MADRE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
01
Purpose
Routine Assessment
Project
20190111MDM_ARCADIA_SIERRA_MADRE_TRUNK_SECTS_2_5
Material
NRCP
Shape
Circular
Height
11.399999618530273 in.
Upstream MH
15 0805
Downstream MH
15 0804
Dir. of Survey
Downstream
Length Surveyed
380.6 ft.
Total Length
380.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3300
O&M Rating
9
Overall Index
3
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 15 0805 to 15 0804
MH: 15 0805MH: 15 0804downstream0 ft. MGO - General Observation - MH CONN 9:00 ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 3:20AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area83 ft. MGO - General Observation - 11.4" NRCP-CIPP LINER109 ft. RML - Roots Medium Lateral, from 01 to 05 o'clock, 15 %, within 8 inches of joint: NO109 ft. TBD - Tap Break-In Defective, at 01 o'clock, -, , within 8 inches of joint: NO, 6" - OPEN-99% ROOTS178.5 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6" - OPEN236.2 ft. TBD - Tap Break-In Defective, at 02 o'clock, -, , within 8 inches of joint: NO, 6" - OPEN-30% ROOTS324.1 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6" - OPEN345.3 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 6" - OPEN380.6 ft. AMH - Downstream Manhole, Survey Ends - 3:50AM

Observation photos (2)

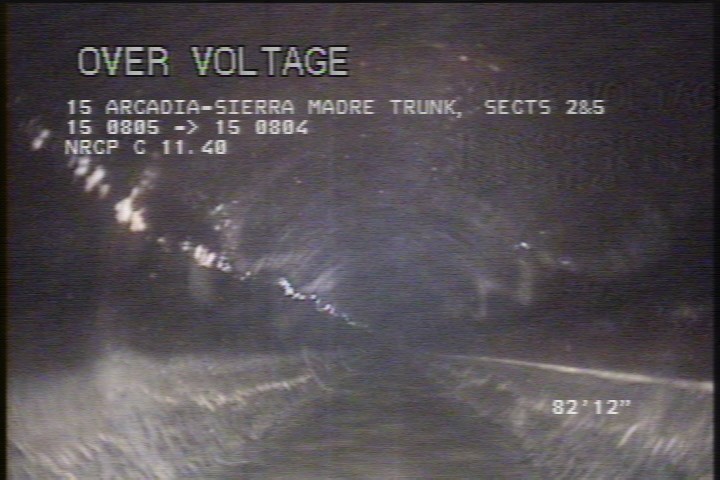

  • General Observation - 11.4" NRCP-CIPP LINER

    83 ft. - General Observation - 11.4" NRCP-CIPP LINER

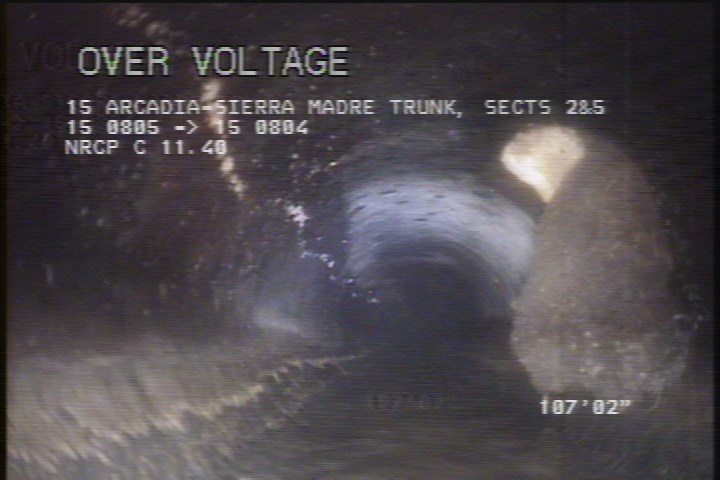

  • Roots Medium Lateral, from 01 to 05 o'clock, 15 %, within 8 inches of joint: NO

    109 ft. - Roots Medium Lateral, from 01 to 05 o'clock, 15 %, within 8 inches of joint: NO

All inspections of P13006Work order 0749482

Observations (12)

DistanceCodeObservation
380.6AMH3:50AM
0MGOMH CONN 9:00 ACTIVE
236.2TBDOPEN-30% ROOTS
0AMH3:20AM
324.1TBOPEN
109RML—
345.3TBOPEN
83MGO11.4" NRCP-CIPP LINER
0MWM—
0MWL—
178.5TBOPEN
109TBDOPEN-99% ROOTS

Properties (7)

custom_field_three
LINER GOOD COND
custom_field_two
4
customer
LACSD
datetime
2019-01-15T02:01:38-08:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
lining
CIPP
