Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 15, 2019, 10:01 AM

  • Section#10_15 0802_15 1148__1152019__I0093.mp4

Date
01/15/2019
W/O
0749482
Weather
Light Rain
Operator/Surveyor
MARTIN
Sewer ID
Z00593
PipeID
P21120
Time
2:01 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
I0093
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 2&5
City
SIERRA MADRE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
01
Purpose
Routine Assessment
Project
20190111MDM_ARCADIA_SIERRA_MADRE_TRUNK_SECTS_2_5
Material
NRCP
Shape
Circular
Height
14.199999809265137 in.
Upstream MH
15 0802
Downstream MH
15 1148
Dir. of Survey
Downstream
Length Surveyed
4.7 ft.
Total Length
4.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 15 0802 to 15 1148
MH: 15 0802MH: 15 1148downstream0 ft. AMH - Upstream Manhole, Survey Begins - 2:20AM0 ft. MGO - General Observation - MH CONN 6:00 ACTIVE0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MGO - General Observation - MH CONN OPEN 9:002 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Change - ROCKS- 2'2 ft. MGO - General Observation - 14.4" NRCP + CIPP LINER4.1 ft. MGO - General Observation - STOPLOG IN PLACE DOWNSTREAM4.1 ft. MGO - General Observation - MH BCONN 9:00 ACTIVE OUTGOING4.2 ft. MGO - General Observation - ZOOM 2.5'4.7 ft. AMH - Downstream Manhole, Survey Ends - 2:30AM

Observation photos (3)

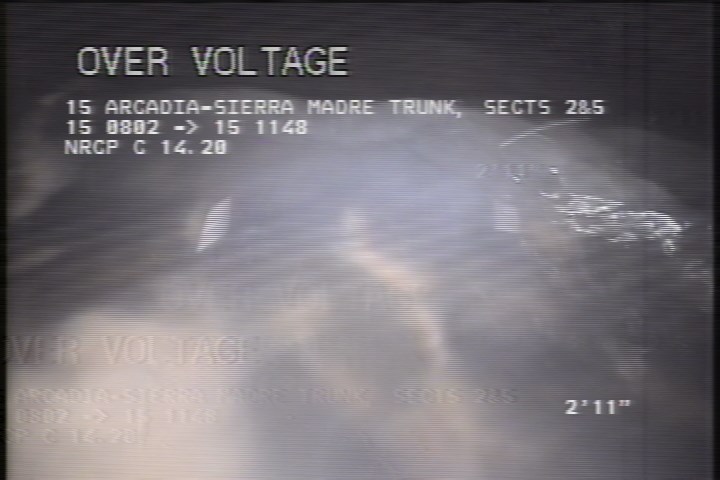

  • Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Change - ROCKS- 2'

    2 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Change - ROCKS- 2'

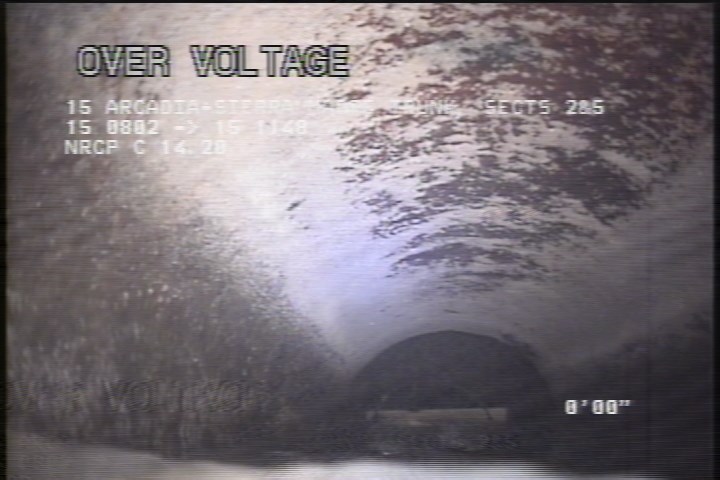

  • General Observation - 14.4" NRCP + CIPP LINER

    2 ft. - General Observation - 14.4" NRCP + CIPP LINER

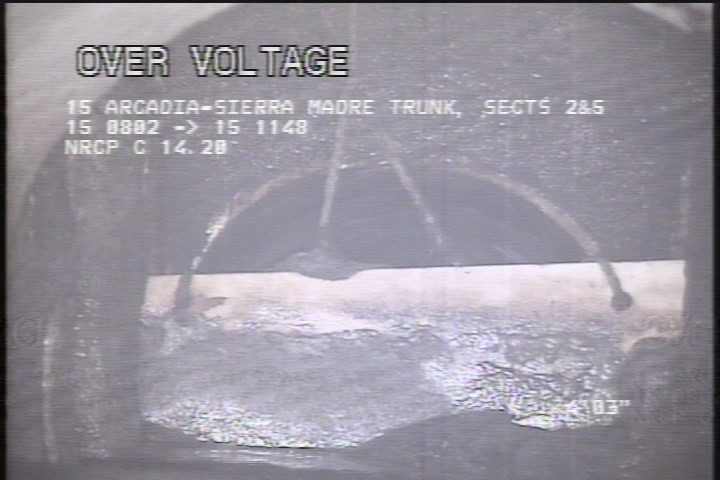

  • General Observation - ZOOM 2.5'

    4.2 ft. - General Observation - ZOOM 2.5'

All inspections of P21120Work order 0749482

Observations (11)

DistanceCodeObservation
0AMH2:20AM
2DSZROCKS- 2'
0MGOMH CONN 6:00 ACTIVE
0MWL—
4.7AMH2:30AM
4.1MGOSTOPLOG IN PLACE DOWNSTREAM
0MWM—
0MGOMH CONN OPEN 9:00
4.2MGOZOOM 2.5'
2MGO14.4" NRCP + CIPP LINER
4.1MGOMH BCONN 9:00 ACTIVE OUTGOING

Properties (6)

custom_field_three
LINER GOOD COND
custom_field_two
4
customer
LACSD
datetime
2019-01-15T02:01:25-08:00
documentation
MARTIN,REVELES,OLIVER 111,BRAR
is_lateral_inspection
false
