Wastewater/Activity/PacpInspection/1.0Jan 11, 2019, 03:57 PM
E 0126_G 0027_1112019_080659.mp4
- Date
- 01/11/2019
- W/O
- 0749250
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00343
- PipeID
- P10390
- Time
- 7:57 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7893
- Sewer Name
- G JOINT OUTFALL G - UNIT 3
- City
- COMPTON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 20
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190111DF_JOINT_OUTFALL_G_UNIT_3
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- E 0126
- Downstream MH
- G 0027
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.2 ft.
- Total Length
- 2.2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (5)

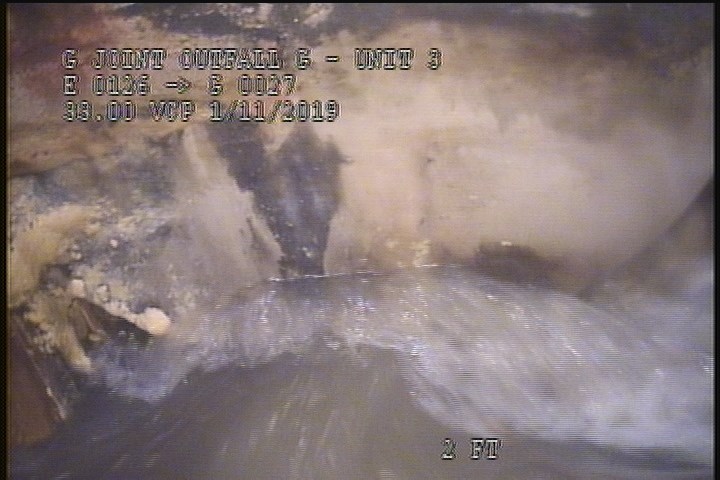

0.1 ft. - Water Mark, 85 %of cross sectional area

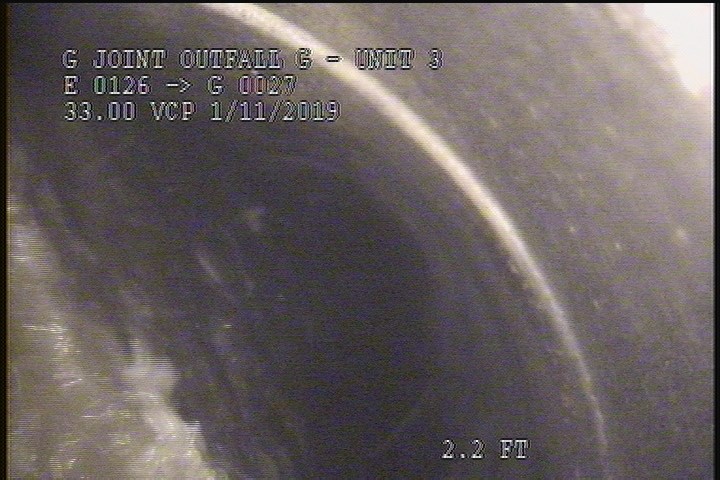

2 ft. - General Photograph

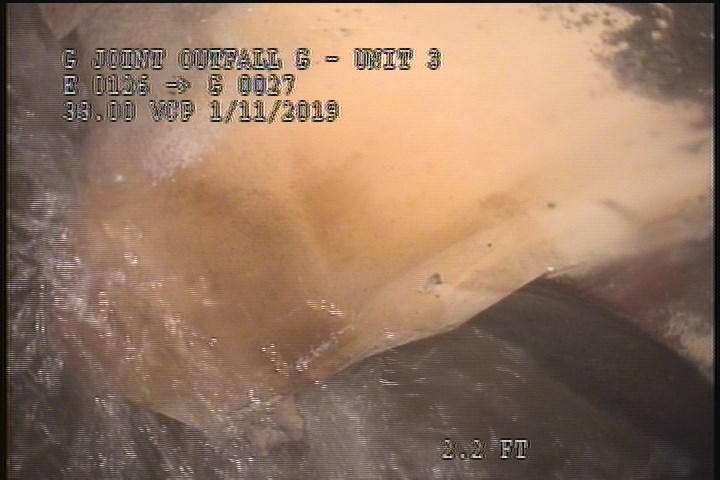

2 ft. - Lining Failure Other, from 08 to 10 o'clock, within 8 inches of joint: YES - HANGING

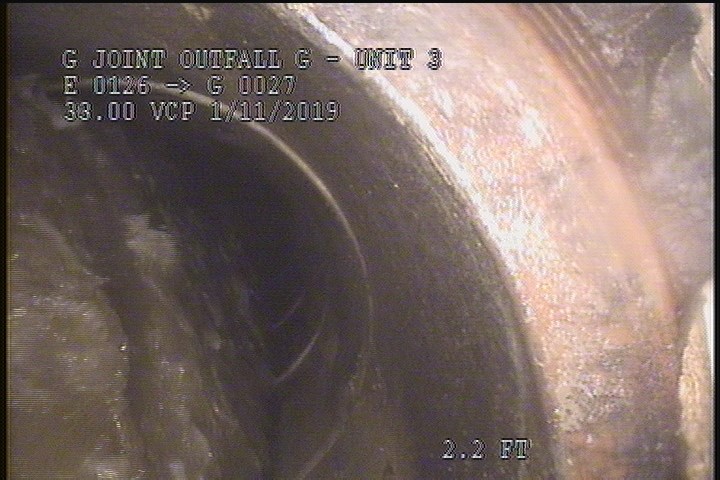

2.1 ft. - General Photograph

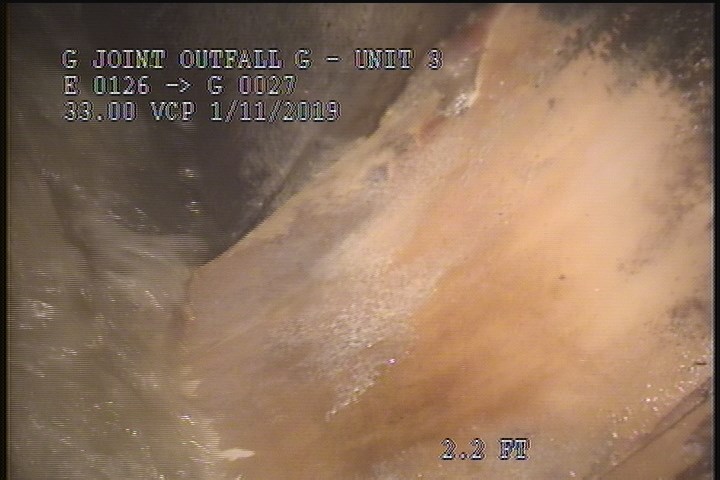

2.1 ft. - General Photograph
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0.1 | MWL | — |
| 2 | MGP | — |
| 2.1 | MGP | — |
| 2.1 | MGP | — |
| 2.2 | MSA | 8:15 AM |
| 0.1 | MWM | — |
| 2.2 | MGO | GREASE THROUGHOUT THE REACH (5%) |
| 2 | LFZ | HANGING |
| 0 | AMH | 7:58 AM |
Properties (5)
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-01-11T07:57:31-08:00
- documentation
- FRANKLIN, IGNACIO, CASTILLO, RUVALCABA
- is_lateral_inspection
- false
