Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 11, 2019, 03:46 PM

  • G 0027_G 0026_1112019_083307.mp4

Date
01/11/2019
W/O
0749250
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00343
PipeID
P10389
Time
7:46 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7893
Sewer Name
G JOINT OUTFALL G - UNIT 3
City
COMPTON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
20
Purpose
Capital Improvement Program Assesment
Project
20190111DF_JOINT_OUTFALL_G_UNIT_3
Material
Vitrified Clay Pipe
Shape
Circular
Height
33 in.
Upstream MH
G 0027
Downstream MH
G 0026
Dir. of Survey
Downstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
5
O&M Quick
5100
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole G 0027 to G 0026
MH: G 0027MH: G 0026downstream0 ft. AMH - Upstream Manhole, Survey Begins - 8:30 AM0 ft. MWL - Water Level, 80 %of cross sectional area0 ft. MWM - Water Mark, 85 %of cross sectional area2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES2 ft. MGP - General Photograph2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES2.1 ft. MSA - Survey Abandoned - 8:38 AM

Observation photos (2)

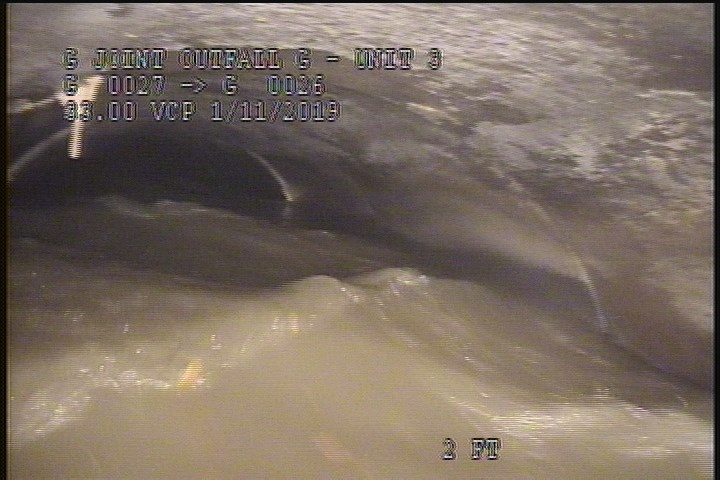

  • General Photograph

    2 ft. - General Photograph

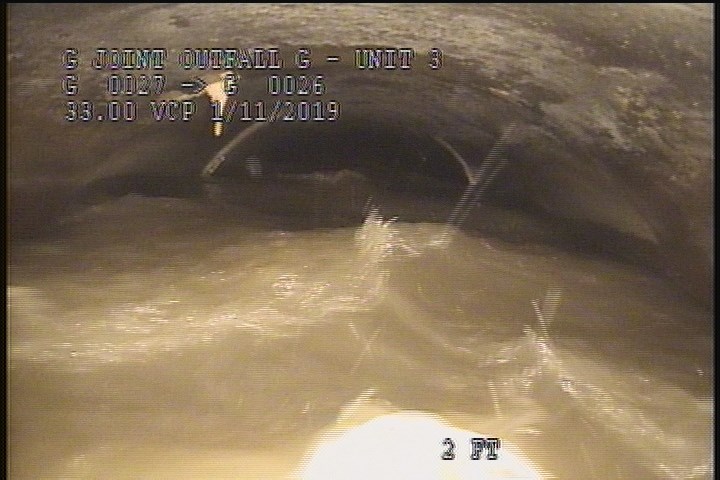

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P10389Work order 0749250

Observations (7)

DistanceCodeObservation
2CM—
0AMH8:30 AM
0MWL—
2MGP—
2SSS—
2.1MSA8:38 AM
0MWM—

Properties (5)

custom_field_two
5
customer
LACSD
datetime
2019-01-11T07:46:37-08:00
documentation
FRANKLIN, IGNACIO, CASTILLO, RUVALCABA
is_lateral_inspection
false
