Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 16, 2019, 07:55 PM

  • 15 0857_15 0856_1162019_115702.mp4

Date
01/16/2019
W/O
0749485
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00594
PipeID
P12635
Time
11:55 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7898
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 3&2A
City
SIERRA MADRE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
01
Purpose
Routine Assessment
Project
20190111DF_ARCADIA_SIERRA_MADRE_TR_SECTS_3_2A
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
15 0857
Downstream MH
15 0856
Dir. of Survey
Downstream
Length Surveyed
318.3 ft.
Total Length
318.3 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
3
O&M Quick
3121
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 15 0857 to 15 0856
MH: 15 0857MH: 15 0856downstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 11:56 AM2 ft. LFW - Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active42.7 ft. MGP - General Photograph83.4 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4" - Open86.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open105.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open117 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: YES, 4"129.3 ft. TBA - Tap Break-In Active, at 01 o'clock, -, within 8 inches of joint: YES, 4"135.6 ft. TBD - Tap Break-In Defective, at 10 o'clock, -, , within 8 inches of joint: YES, 4" - Open168.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open191.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open195.7 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 4"198.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open222.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"229.9 ft. MGP - General Photograph229.9 ft. MGP - General Photograph250.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open274.4 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open296.2 ft. TB - Tap Break-In, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open315 ft. LFW - Lining Failure Wrinkled, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish318.3 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active318.3 ft. AMH - Downstream Manhole, Survey Ends - 12;22 PM318.3 ft. MGO - General Observation - Grease Throughout The Reach (5%)

Observation photos (4)

  • General Photograph

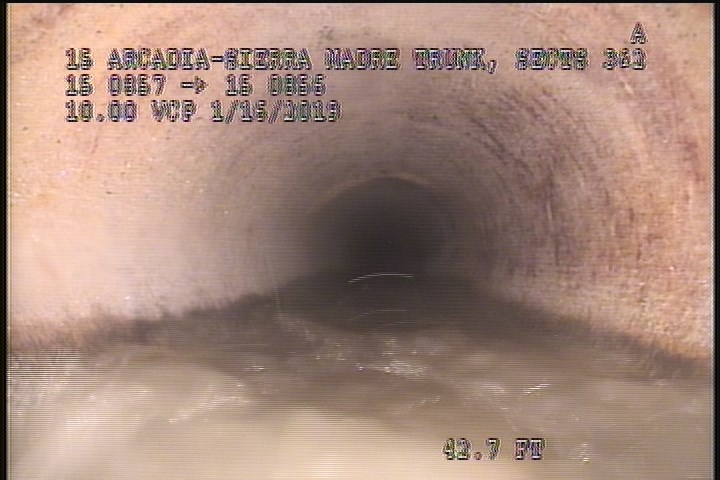

    42.7 ft. - General Photograph

  • Tap Break-In Defective, at 10 o'clock, -, , within 8 inches of joint: YES, 4" - Open

    135.6 ft. - Tap Break-In Defective, at 10 o'clock, -, , within 8 inches of joint: YES, 4" - Open

  • General Photograph

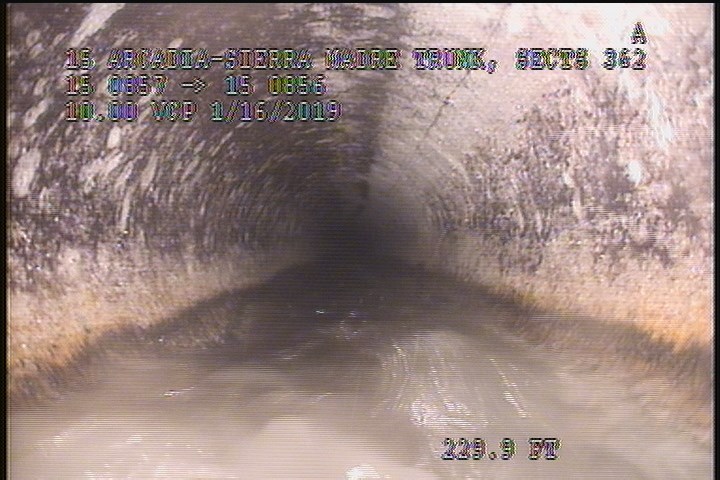

    229.9 ft. - General Photograph

  • General Photograph

    229.9 ft. - General Photograph

All inspections of P12635Work order 0749485

Observations (26)

DistanceCodeObservation
318.3MGOConn. @ Mh, 9 O' Clock. Active
296.2TBOpen
0MWM—
42.7MGP—
315LFW—
195.7TF—
198.9TFOpen
105.6TFOpen
274.4TFDOpen
0MWL—
86.6TFOpen
318.3AMH12;22 PM
83.4TFOpen
2LFW—
229.9MGP—
250.2TFOpen
222.8TFA—
229.9MGP—
168.6TFOpen
2MGOConn. @ Mh, 9 O' Clock. Active
135.6TBDOpen
191.1TFOpen
117TFA—
0AMH11:56 AM
129.3TBA—
318.3MGOGrease Throughout The Reach (5%)

Properties (5)

custom_field_two
4
customer
LACSD
datetime
2019-01-16T11:55:02-08:00
documentation
FRANKLIN, IGNACIO, CASTILLO, RUVALCABA
is_lateral_inspection
false
