Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 11, 2019, 06:33 PM

  • 15 0862_15 0861_1112019_111006.mp4

Date
01/11/2019
W/O
0749485
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00594
PipeID
P12640
Time
10:33 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7894
Sewer Name
15 ARCADIA-SIERRA MADRE TRUNK, SECTS 3&2A
City
SIERRA MADRE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
01
Purpose
Routine Assessment
Project
20190111DF_ARCADIA_SIERRA_MADRE_TR_SECTS_3_2A
Material
Vitrified Clay Pipe
Shape
Circular
Height
11.100000381469727 in.
Upstream MH
15 0862
Downstream MH
15 0861
Dir. of Survey
Downstream
Length Surveyed
378.3 ft.
Total Length
378.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole 15 0862 to 15 0861
MH: 15 0862MH: 15 0861downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:35 AM0.1 ft. MWL - Water Level, 10 %of cross sectional area0.1 ft. MWM - Water Mark, 15 %of cross sectional area2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. OPEN67.5 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: YES, 4", 4"99.1 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: YES, 4" - Open134.4 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"191 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4" - Open231 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4" - Open256.1 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"259.5 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: YES, 4" - Active264.5 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open334.3 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: YES, 4" - Open365.1 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: YES, 4" - Open378.3 ft. MGO - General Observation - ROACHES @ MH378.3 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)378.3 ft. AMH - Downstream Manhole, Survey Ends - 11:39 AM

Observation photos (2)

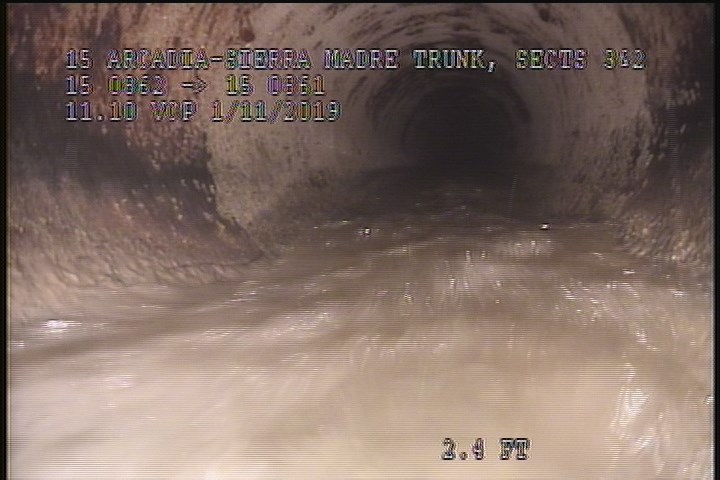

  • Upstream Manhole, Survey Begins - 10:35 AM

    0 ft. - Upstream Manhole, Survey Begins - 10:35 AM

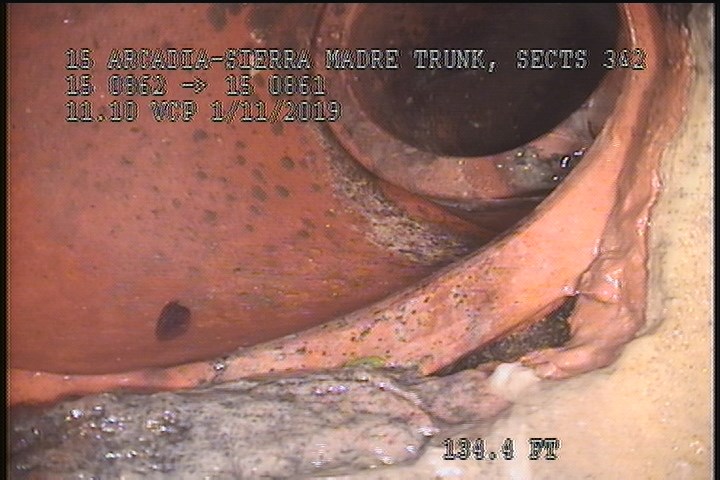

  • Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"

    134.4 ft. - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"

All inspections of P12640Work order 0749485

Observations (18)

DistanceCodeObservation
2MGOConn. @ Mh, 9 O' Clock. Active
378.3MGOROACHES @ MH
0.1MWL—
334.3TBOpen
231TBOpen
256.1TBA—
0.1MWM—
365.1TBOpen
264.5TBOpen
191TFOpen
99.1TFOpen
134.4TBA—
2MGOConn. @ Mh, 3 O' Clock. OPEN
259.5TBActive
378.3MGOGREASE THROUGHOUT THE REACH (5%)
0AMH10:35 AM
378.3AMH11:39 AM
67.5TFA—

Properties (7)

custom_field_two
4
customer
LACSD
datetime
2019-01-11T10:33:13-08:00
documentation
FRANKLIN, IGNACIO, CASTILLO, RUVALCABA
is_lateral_inspection
false
lining
CIPP
year_laid
20020918
