Wastewater/Activity/PacpInspection/1.0Jan 10, 2019, 05:10 PM
F 0077_F 0076_1102019_093921.mp4
- Date
- 01/10/2019
- W/O
- 0729728
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00035
- PipeID
- P10173
- Time
- 9:10 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7891
- Sewer Name
- F JOINT OUTFALL F - UNIT 3A
- City
- CERRITOS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 39
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190110DF_JOINT_OUTFALL_F_UNIT_3A
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 60 in.
- Upstream MH
- F 0077
- Downstream MH
- F 0076
- Dir. of Survey
- Downstream
- Length Surveyed
- 2.1 ft.
- Total Length
- 2.1 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (5)

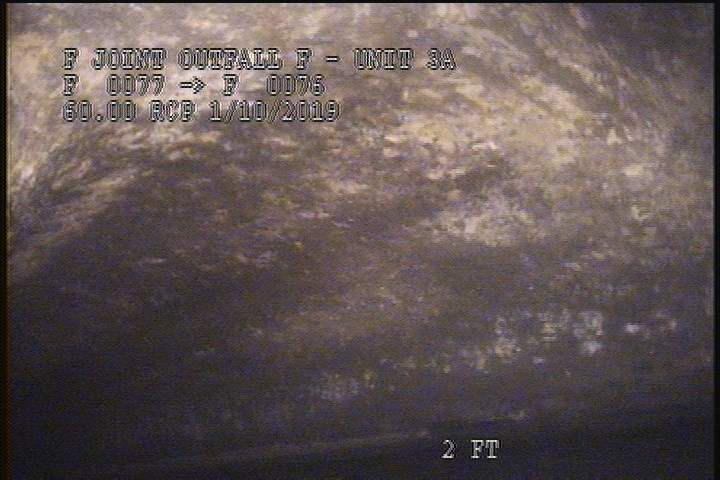

2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES - 25% MAG

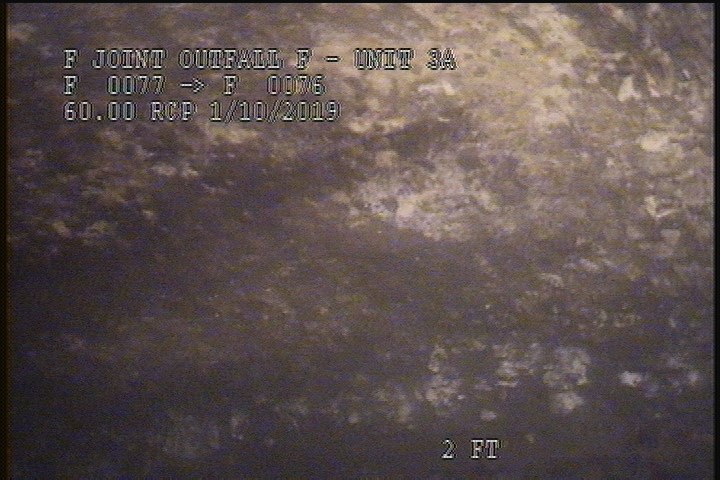

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

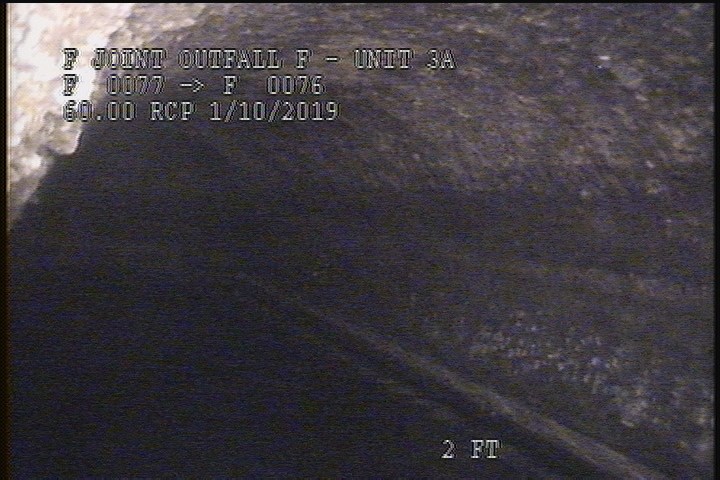

2 ft. - General Photograph - ZOOMED

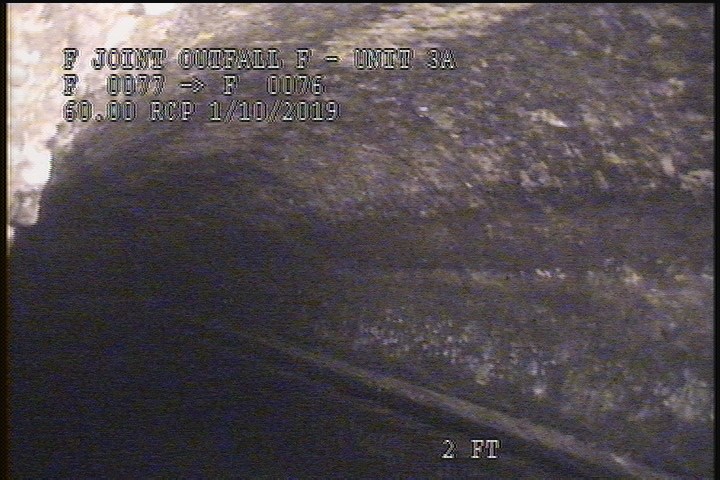

2 ft. - General Photograph

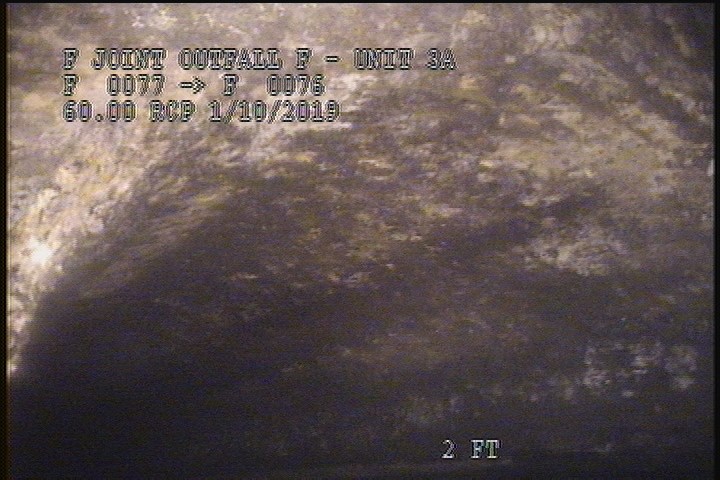

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 9:26 AM |
| 2 | MGO | Peeling & Flaking Throughout The Reach |
| 2 | SZ | 25% MAG |
| 2 | SAV | — |
| 0.1 | MWL | — |
| 2 | MGO | GREASE THROUGHOUT THE REACH (5%) |
| 0.1 | MWM | — |
| 2.1 | AMH | 9:55 AM |
| 2 | MGP | ZOOMED |
| 2 | MGP | — |
| 2 | SSS | — |
Properties (5)
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-01-10T09:10:53-08:00
- documentation
- FRANKLIN, IGNACIO, CASTILLO, RUVALCABA
- is_lateral_inspection
- false
