Wastewater/Activity/PacpInspection/1.0Jan 10, 2019, 09:04 AM
Section#4_G 0033_E 0131__1102019__I0088.mp4
- Date
- 01/10/2019
- W/O
- 0749250
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00343
- PipeID
- P23533
- Time
- 1:04 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0088
- Sewer Name
- G JOINT OUTFALL G - UNIT 3
- City
- COMPTON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 20
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190110MDM_JOINT_OUTFALL_G_UNIT_3
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- G 0033
- Downstream MH
- E 0131
- Dir. of Survey
- Downstream
- Length Surveyed
- 49.9 ft.
- Total Length
- 49.9 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2500
- O&M Rating
- 10
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (2)

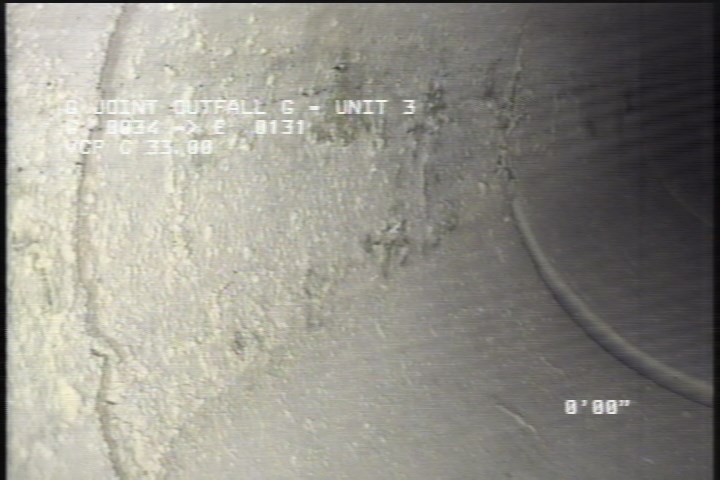

2 ft. - General Observation - WHITE COATING ON PIPE START

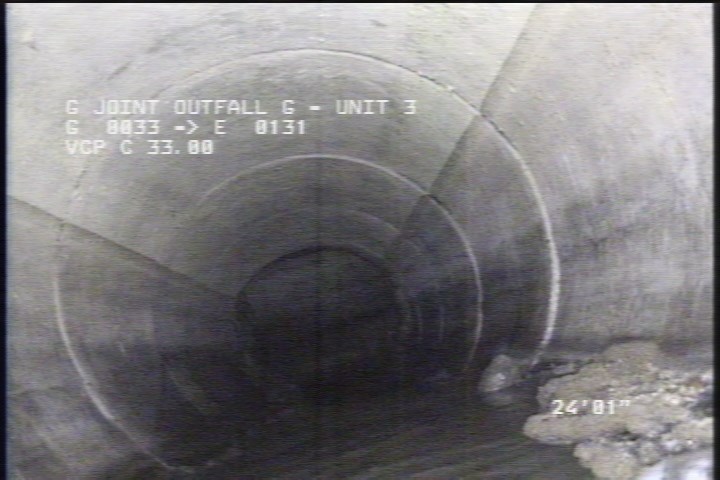

24.1 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start - SLUDGE
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 24.1 | DSZ | SLUDGE |
| 23.6 | FC | SLIGHT |
| 49.6 | DSZ | SLUDGE |
| 2 | MGO | WHITE COATING ON PIPE START |
| 0 | MWL | — |
| 0 | MGO | MH CONN 9:00 OPEN |
| 0 | AMH | 3:35AM |
| 0 | MWM | — |
| 49.9 | AMH | 3:45AM |
Properties (4)
- custom_field_three
- SLIGHT FRACTURE
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-01-10T01:04:49-08:00
