Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 9, 2019, 09:11 PM

  • F 0075_F 0074_192019_140316.mp4

Date
01/09/2019
W/O
0729728
Weather
Dry
Operator/Surveyor
SANTIAGO OBREGON
Sewer ID
Z00035
PipeID
P10170
Time
1:11 PM
Certificate
U-1014-06022541
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7890
Sewer Name
F JOINT OUTFALL F - UNIT 3A
City
CERRITOS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
39
Purpose
Capital Improvement Program Assesment
Project
20190109SHO_JOINT_OUTFALL_F_UNIT_3A
Material
Reinforced Concrete Pipe
Shape
Circular
Height
60 in.
Upstream MH
F 0074
Downstream MH
F 0075
Dir. of Survey
Upstream
Length Surveyed
502.2 ft.
Total Length
502.2 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole F 0074 to F 0075
MH: F 0074MH: F 0075upstream0 ft. AMH - Upstream Manhole, Survey Ends - F 0075115.9 ft. SAV - Surface Aggregate Visible, from 12 to 01 o'clock, within 8 inches of joint: NO167.8 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: NO, 8"262.9 ft. SAV - Surface Aggregate Visible, at 12 o'clock, within 8 inches of joint: NO346.9 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: NO, 6"379.6 ft. TFA - Tap Factory Made Active, at 01 o'clock, -, within 8 inches of joint: NO, 6"499.5 ft. MGO - General Observation - 95% MAG COAT INTACT502.2 ft. MWM - Water Mark, 25 %of cross sectional area502.2 ft. AMH - Downstream Manhole, Survey Begins - F 0074502.2 ft. MWL - Water Level, 20 %of cross sectional area

Observation photos (2)

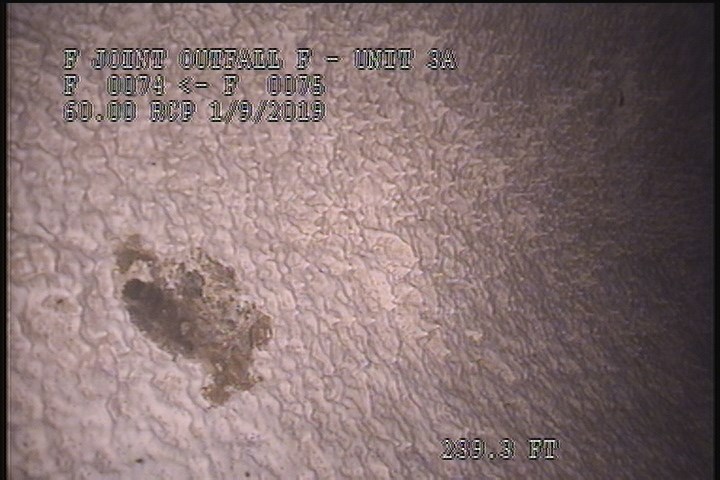

  • Surface Aggregate Visible, at 12 o'clock, within 8 inches of joint: NO

    239.3 ft. - Surface Aggregate Visible, at 12 o'clock, within 8 inches of joint: NO

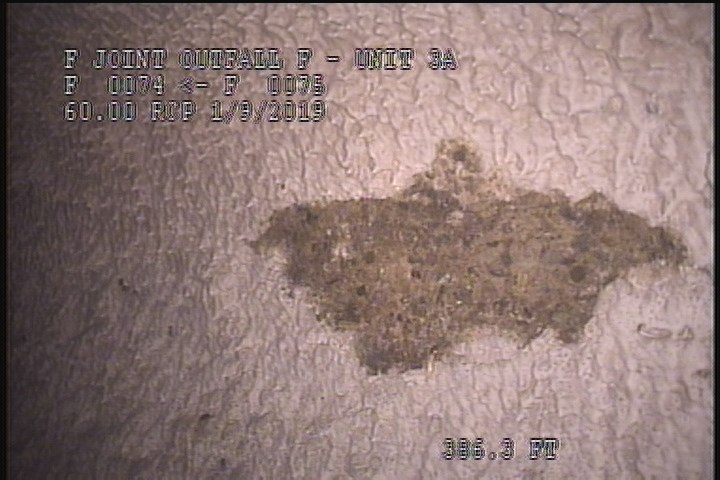

  • Surface Aggregate Visible, from 12 to 01 o'clock, within 8 inches of joint: NO

    386.3 ft. - Surface Aggregate Visible, from 12 to 01 o'clock, within 8 inches of joint: NO

All inspections of P10170Work order 0729728

Observations (10)

DistanceCodeObservation
2.7MGO95% MAG COAT INTACT
122.6TFA—
386.3SAV—
155.3TFA—
0MWM—
334.4TFA—
0AMHF 0074
502.2AMHF 0075
0MWL—
239.3SAV—

Properties (5)

additional_info
REVERSE INSPECTION
custom_field_three
SMALL AMOUNT OF VISIBLE AGGREGATE
custom_field_two
3
customer
LACSD
datetime
2019-01-09T13:11:40-08:00
