Wastewater/Activity/PacpInspection/1.0Jan 9, 2019, 08:31 AM
Section#1_02 0140_F 0053__192019__I0085.mp4
- Date
- 01/09/2019
- W/O
- 0735003
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00251
- PipeID
- P09466
- Time
- 12:31 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- I0085
- Sewer Name
- 02 DOWNEY-BELLFLOWER TRUNK
- City
- BELLFLOWER
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 38
- Purpose
- Routine Assessment
- Project
- 20190109MDM_DOWNEY_BELLFLOWER_TRUNK
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- F 0053
- Downstream MH
- 02 0140
- Dir. of Survey
- Upstream
- Length Surveyed
- 20.2 ft.
- Total Length
- 20.2 ft.
- Structural Index
- 3
- Structural Quick
- 4121
- Structural Rating
- 6
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (4)

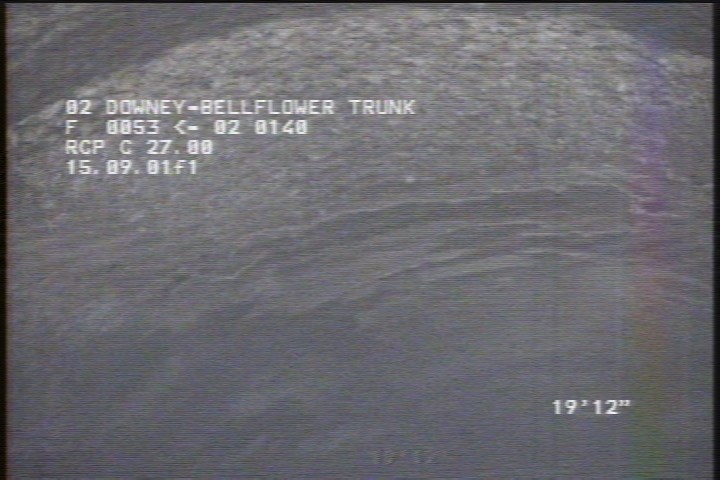

2 ft. - General Observation - ZOOM UPSTREAM

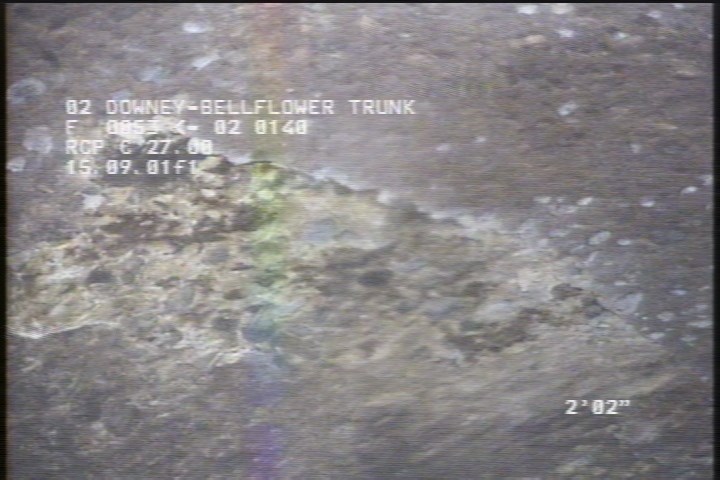

2 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG
10.1 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: NO - PEELING CONCRETE-ZOOM

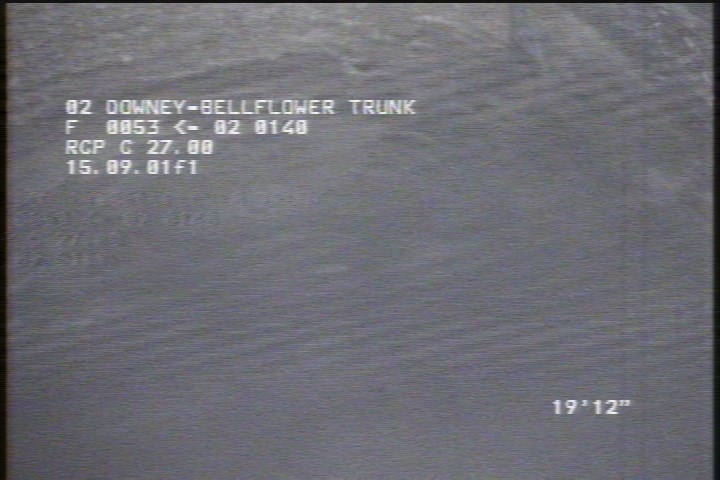

20 ft. - General Observation - ZOOM PIPE APPEARS FULL
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 20.2 | MSA | 20' UPSTREAM FULL PIPE |
| 0 | AMH | 12:45AM |
| 2 | MGO | ZOOM UPSTREAM |
| 2 | SAM | SEVERE AGG |
| 0 | MWL | — |
| 10.1 | SSS | PEELING CONCRETE-ZOOM |
| 20 | MGO | ZOOM PIPE APPEARS FULL |
Properties (5)
- additional_info
- REVERSE INSPECTION
- custom_field_three
- SEVERE AGG MISSING
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-01-09T00:31:28-08:00
