Wastewater/Activity/PacpInspection/1.0Jan 8, 2019, 08:56 PM
G 0039_G 0038_182019_131243.mp4
- Date
- 01/08/2019
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00343
- PipeID
- P10401
- Time
- 12:56 PM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7889
- Sewer Name
- G JOINT OUTFALL G - UNIT 3
- City
- COMPTON
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- 20190108SHO_JOINT_OUTFALL_G_UNIT_3
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- G 0039
- Downstream MH
- G 0038
- Dir. of Survey
- Downstream
- Length Surveyed
- 102.3 ft.
- Total Length
- 102.3 ft.
- Structural Index
- 5
- Structural Quick
- 5100
- Structural Rating
- 5
- O&M Index
- 3
- O&M Quick
- 3121
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

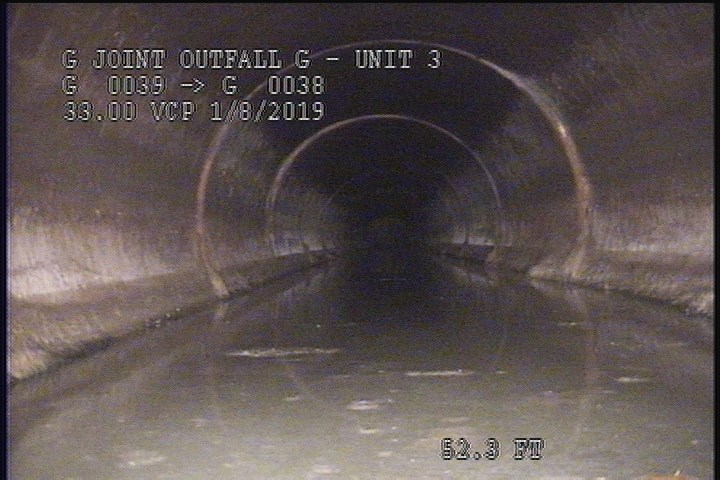

52.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

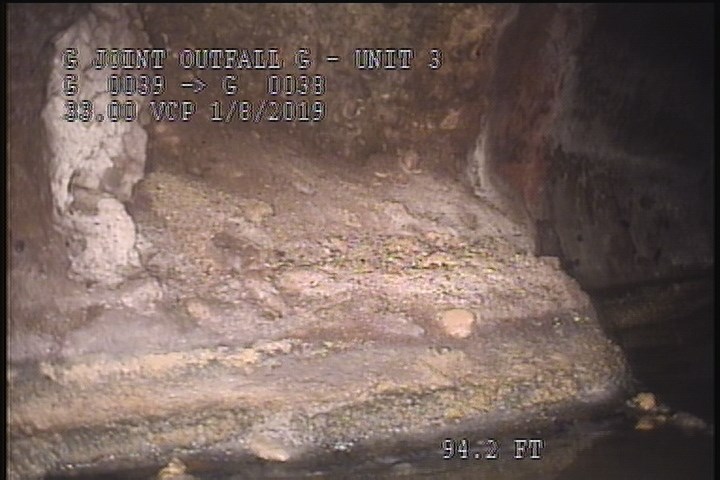

94.2 ft. - Deposits Attached Encrustation, 15 %of cross sectional area, from 07 to 09 o'clock, , within 8 inches of joint: YES - GREASE

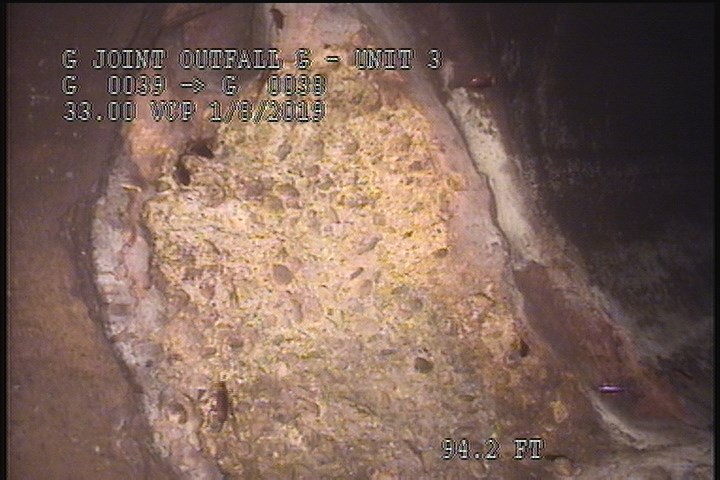

94.2 ft. - Broken, from 08 to 12 o'clock, within 8 inches of joint: YES - POSSIBLE REPAIR/ENCASEMENT
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 52.3 | DAGS | — |
| 102.3 | AMH | G 0038 |
| 0 | MWL | — |
| 0 | AMH | G 0039 |
| 94.2 | DAE | GREASE |
| 94.2 | B | POSSIBLE REPAIR/ENCASEMENT |
| 102.3 | DAGS | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- STAGNANT WATER
- custom_field_three
- GREASE, BROKEN PIPE W/ REPAIR/ENCASEMENT
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-01-08T12:56:56-08:00
